• Model NO.：XJ-1200MM,2700MM
• Motor Brand：Siemens
• Inverter Brand：Yaskawa or Inovance
• Bearing Brand：NSK
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, China
• HS Code：8479400000
• Production Capacity：3 Sets,Month

Basic Info.

Model NO. XJ-1200MM/2700MM Motor Brand Siemens Inverter Brand Yaskawa or Inovance Bearing Brand NSK Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, China HS Code 8479400000 Production Capacity 3 Sets/Month

Product Description

 PTFE CABLE COLD EXTRUDER LINE1.Application:
   Suitable for aviation & aerospace cable, high-demand automotive cable and cable which external signal base station etc; with excellent chemical stability, outstanding surface non-sticky, good lubrication and resistance to atmospheric aging; and can be work at 250ºC high temperature and -60ºC low temperature for long time as well.
2. Technical Parameters:

Model	XJ-1200MM	XJ-2700MM
Structure type	Vertical	Horizontal
Cold-extruded motor	4.5KW Servo motor + 5KW AC motor	4.5KW Servo motor + 5KW AC motor
Cold-extruded force	Max.35 T	Max.100 T
Capstan power	400W	2000W
Pay-off power	750W	5500W
Take-up power	750W	2200W
Volatile-tank power	8 KW	15KW
Sintering furnace power	45KW	45KW
Temperature range	0-500ºC(Temp control accuracy+/-1ºC)	0-500ºC(Temp control accuracy+/-1ºC)
Design line speed	0-50(40)M/min	0-80(40)M/min
Plane size of machine	9280mm * 2500mm                                 (Subject to the actual product)	19000mm * 2500mm                                 (Subject to the actual product)
Machine height	13500 (Subject to the actual product)	1500 (Subject to the actual product)

3. Equipment composition:
    Mixer, Premolding machine, Cold extruding machine, Traction machine(volatile box), Sintering furnace, Take-up and traversing machine, outside diameter tester, main control cabinet and operating table, etc.

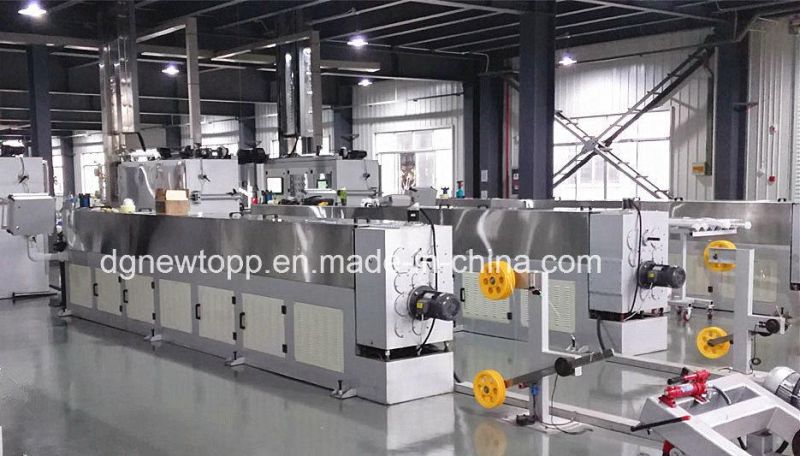

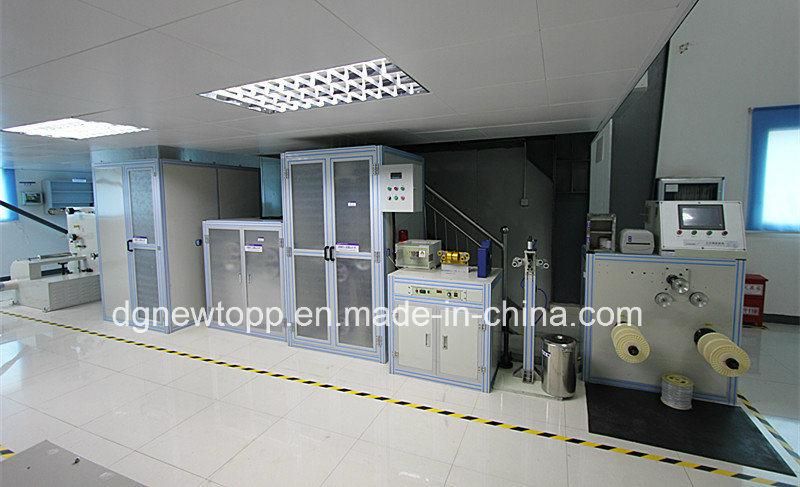

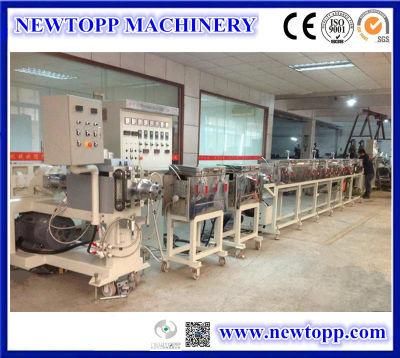

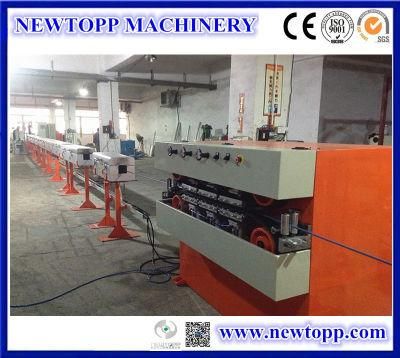

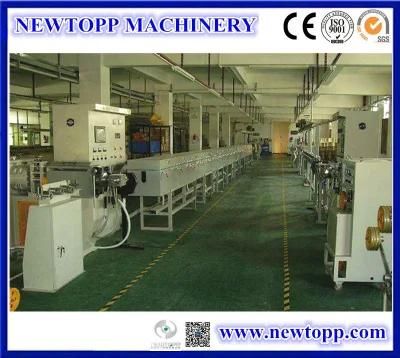

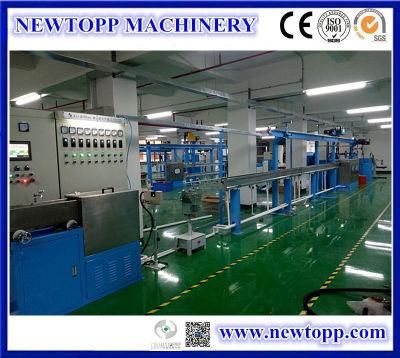

4.Machine pictures:

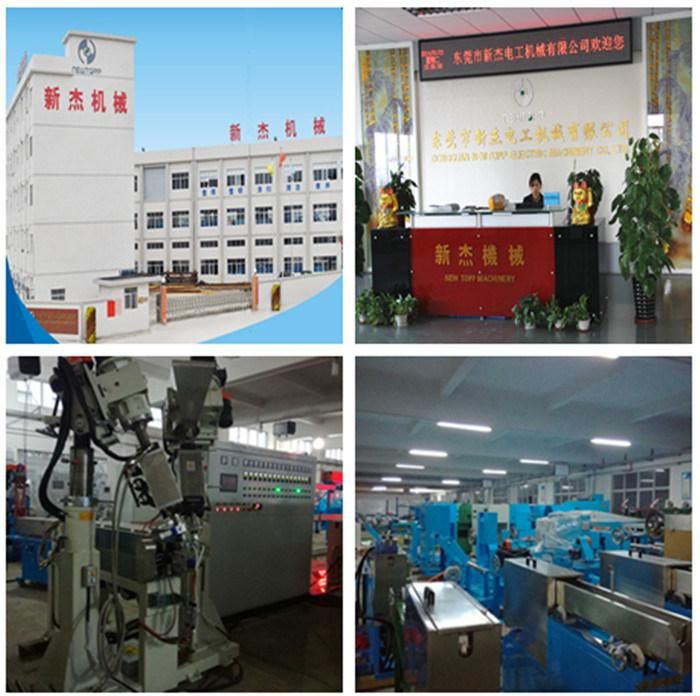

5. Abuot us:Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding/twisting machine, planetary cage type twisting machine, triple-core stranding machine with back-twist, single/double layer wrapping/taping machine and so on; Our products have passed CE certification and SGS audited , and our factory have passed ISO9001 quality management system certification and ISO14001 environmental sytem certification.

6. Certificates of Patent and Honor:

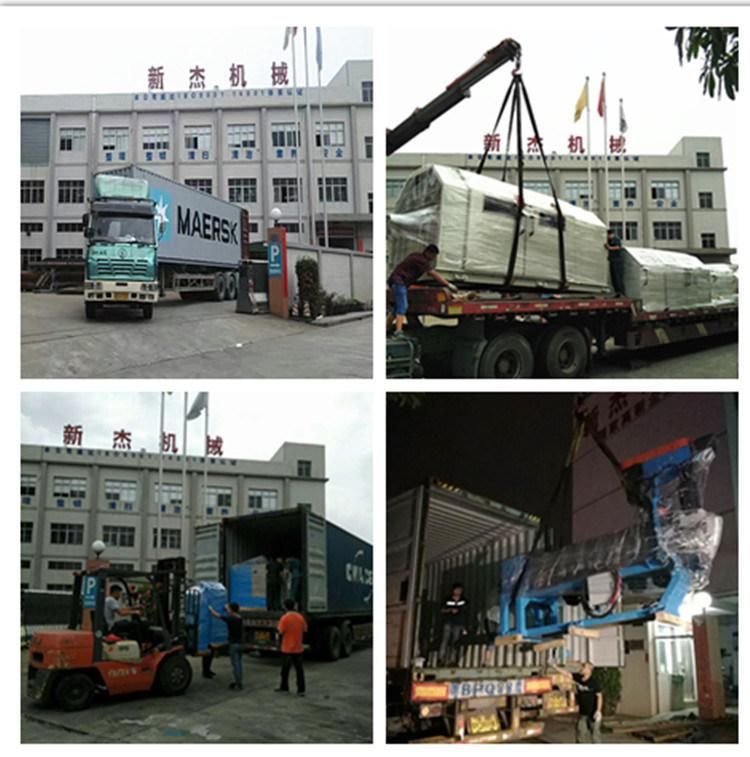

7. Shipment scenes:


8. FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years of R&D and manufacturing experience in the field of cable machinery ; our machines are exported to different countries, such as Italy, Russia, Iran, Japan, India, Korea,Thailand, Malaysia, Vietnam etc, and have received recognition and praise from customers.
2) How can we get to your factory to see the machines?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 2.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
                                    Sales engineer: Mr. David hou
