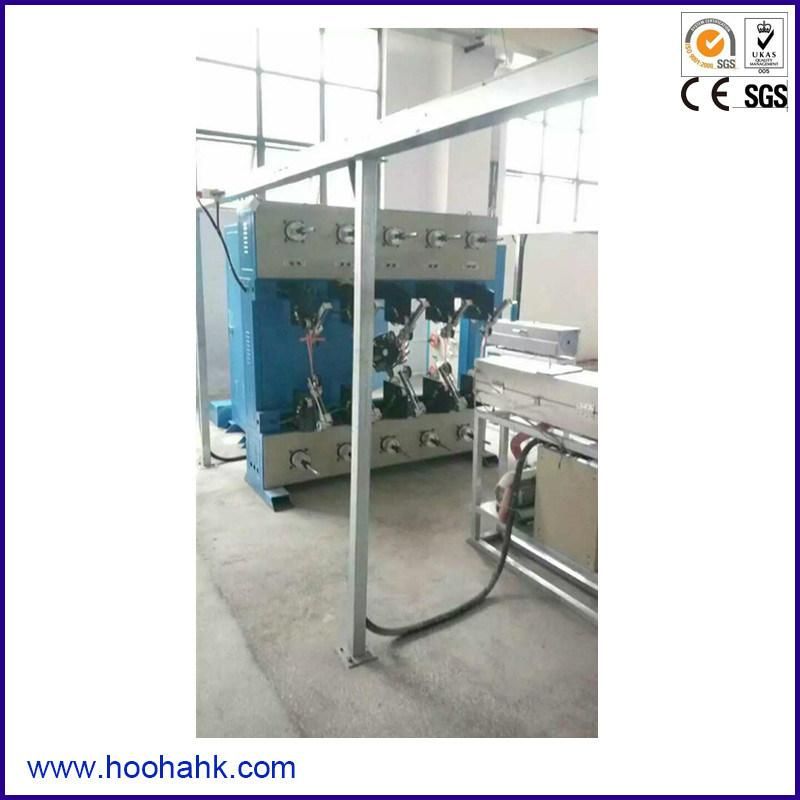

Optic Fiber Cable Secondary Coating Extrusion Machine
HOOHA Co., LIMITED- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Brand Name：Gem Machine
Base Info
- Model NO.：H-E12S
- Color：Blue or Customization
- Power(V)：380V
- Certificate：ISO,Ce
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Available Material：PVC, PE, XLPE, Lshz, TPE
- Precision：High Precision
- Demoulding：Automatic
- Heating System：Electric
- Customized：Customized
- Transport Package：Wood Package
- Specification：CE ISO SGS
- Trademark：HOOHA
- Origin：Dongguan
- HS Code：8479400000
- Production Capacity：5 Sets,Month
Description
Professional afterservice team:
1.10 engineer always on the way to provide solution
2.wire manufacture,machine design,PLC design, machine maintain, and electrical engineer make customer confidence
3.Morre than 10 engineer have passport and 10 years overseas experience.
4.5 Translator team has been in wire industry 5 years ensure high efficient comunication
5.5 country has location service and agent service ensure our best after service.

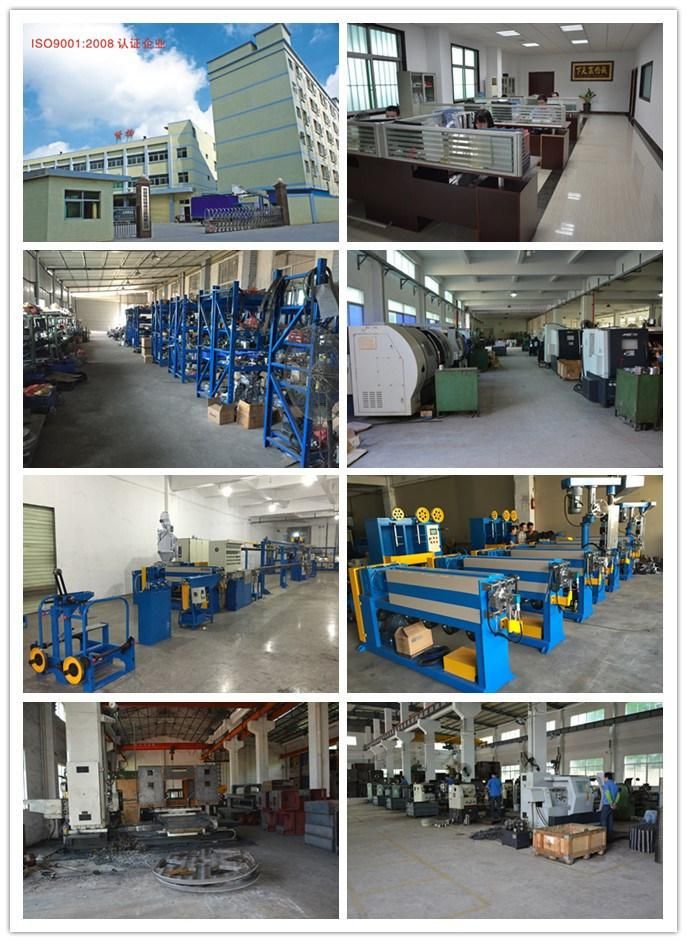

-Factory and office:
2.HOOHA Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
1.Specifications
1,machine for fiber optical cable
2,secondary coating
3,PC+PLC control
4,single screw
5,12 cores
1,Equipment application :
the optic fiber cable secondary coating machine mainly applied in the extrusion of 2-12 cores oil-filled fiber or 4-12*12 cores fiber loose tube,and the extrusion of ¢1.5mm-5.0mm optical fiber fillers.
2,Features:
a,screw type:single screw
b,screw dia:50mm
c, the machine use IPC+PLC control system,main electric parts are importing,
screw adopt the modern latest technology.
d, convenient operation, long service life.
3.Technical parameters:
| cores No of optical fiber | 12 cores |
| Pay-off tension of optical fiber | 0.4-1.5N±0.05N |
| Specification of optical fiber pay-off reels | ø236×ø160×ø108 |
| stranding angle | ± 340 |
| hoter water temperature | 75°c ± 2 °c |
| take-up tension | 2.5-6.5N |
| production speed | 5-250m/min(ø2.0mmPBT tube bundling),5-180m/min(ø3.0mmPBT tube bundling) |
| excess control | 0-3‰ ± 0.2 ‰ |
| error of measuring meter | <1 ‰ |
| specification of take-up reels | PN800mm |
| fiber excess attenuation | <0.02db/km |
| uniformity of excess length | ± 0.2 ‰ |
