• Model NO.：HLT
• Traction Method：Pneumatic Flat Belt
• Material：PVC,PE,HDPE,MDPE,TPU
• Touch Screen：Siemens
• DC Driver：Parker 590 Eurotherm
• Screw Length to Diameter Ratio：25:1
• Production Speed：20m,Min(Max)
• Center Height：1000mm
• Product Name：Take up Reel Cable Making Machinery
• Transport Package：Standard Seaworthy Package
• Specification：4775*2010*1600
• Trademark：HLT
• Origin：Jiangsu, China
• Production Capacity：500 Sets Per Year

Basic Info.

Model NO. HLT Traction Method Pneumatic Flat Belt Material PVC,PE,HDPE,MDPE,TPU Touch Screen Siemens DC Driver Parker 590 Eurotherm Screw Length to Diameter Ratio 25:1 Production Speed 20m/Min(Max) Center Height 1000mm Product Name Take up Reel Cable Making Machinery Transport Package Standard Seaworthy Package Specification 4775*2010*1600 Trademark HLT Origin Jiangsu, China Production Capacity 500 Sets Per Year

Product Description

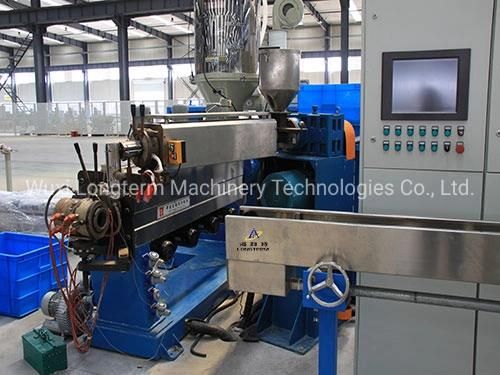

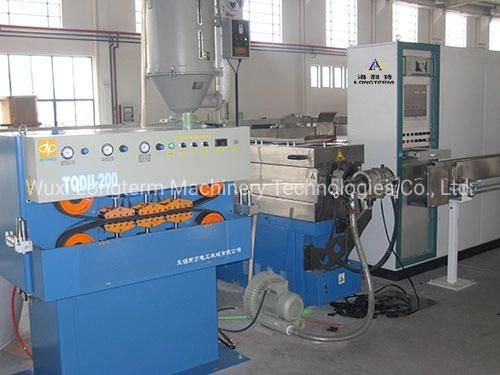

Wire and Cable Extrusion Making Machine




The main technical parameters

Screw diameter		Φ150mm
	Screw length to diameter ratio		25:1
	Extrution output		PE:600kg/h ;TPU: 20rpm
	Before the sheath core diameter:		Φ40-Φ90mm ; Φ90-Φ190mm
	After the cable insulation diameter		Φ50-Φ100mm; Φ100-Φ200mm
	The production line speed:		20M/min(Max)
	Traction method		Pneumatic flat belt
	The length of the water tank,		single layer, 4+20meters
	Pay-off reel		/
	Take-up reel		/
	Center height		1000mm
	Power supply		three phase,480V 60Hz with neutral wire


Product Description





Line electrical control system:

1. Control:

- Main extruder and haul-off caterpillar has synchronization and individual operation function;
- The main extruder output capacity nonlinear curve can be corrected;


1. Heating: Omron

- It has other controls such as air wipe, water pump start & stop;


1. Display:

      -    Parameters of extruder current, voltage and speed;


1. Alarm:

- Driving fault alarm;
- Main extruder pressure exceeds rate alarm;


1. Supply:
   • PLC: SIEMENS S7200/300 series
   • Touch screen: Siemens
   • DC driver: PARKER 590  Eurotherm
   • Inverter:  PARKER 690 &650  Eurotherm
   • Low voltage: Siemens Suzhou, China
   • Electrical cabinet: Germany brand: RITTAL (Made in Rittal, Shanghai/ China)
   • Supply swing switch box with touch screen.
   • Cabinet control box with A/C control

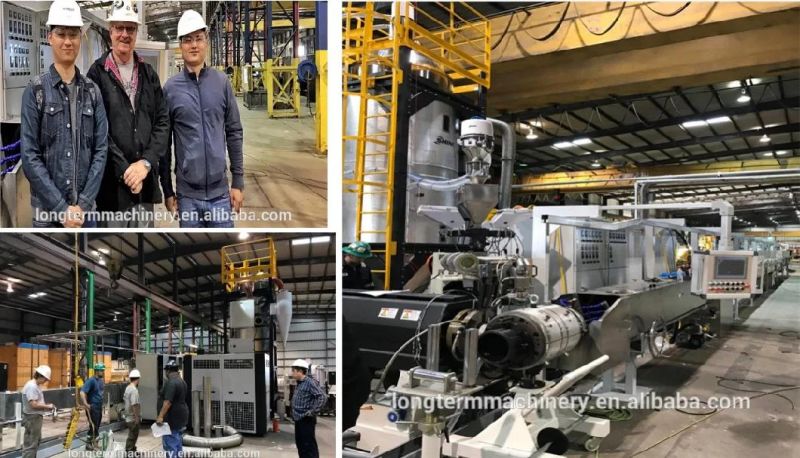

Aftersale service



Our company has a long history in Extrusion Production Line. The equipment of the extrusion production line is popular all over the world and won great recognition from our esteemed customers.
 We have an excellent management team; the Foreign trade group consists of young adults who are energetic and prosperous. We are ready to face challenges and overcome all problems; the Technical group is very experienced, as our engineers are all highly experienced technicians in this field. They provide powerful support for our project and always devote themselves to improving the technology.
 We are especially good at resource integration. We have established a reliable after-sales service guarantee system, in order to help customers get the best and fast solution



Enable us send you accurate machine offer.  pls kindly send us the following information:


1.  Coil diameter (we need to know the take up and pay off machine size)
2.  Extrusion speed
3.  Extrusion thickness
4. What is material of outer sheath.(PVC or PE or HDPE or MDPE or TPU? )
