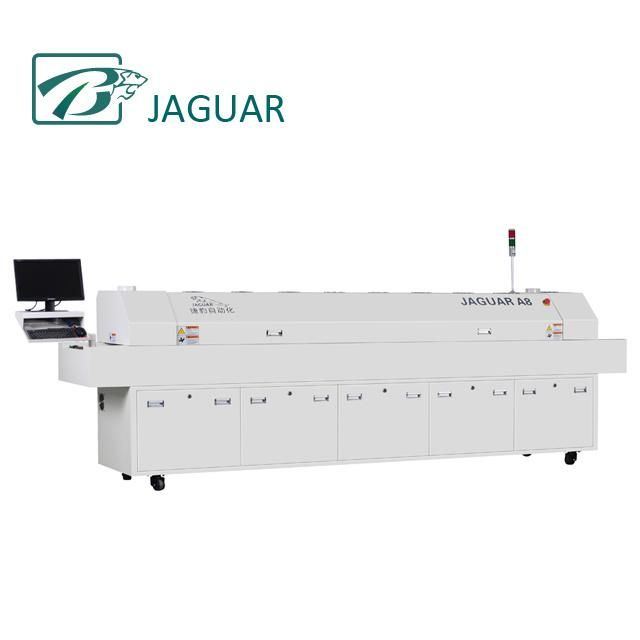

                                             Jaguar lead free reflow oven A8



Specification:

Model	Jaguar A8
Outside dimension	4200*700*1320mm
Standard color	computer grey
Weight	800KG
Number of heating zones	up8/bottom 8
Number of cooling zones	1
Length of heating zones	2800mm
Electric supply required	5 line 3 phase 380V 50/60 HZ
Warming time	Approx. 20 mins
Heating time	Up:hot air; bottom: IR
Temperature setting range	Room temp. -350 Degrees Celsius
Control system	PID+SSR/PLC+PC
Temperature control method	PID Close loop control&SSR Driving
Temperature control precision	±1.0 Degrees Celsius
Temperature deviation on PCB	±2.0 Degrees Celsius
Data storage	Process data and status storage(80 GB)
Abnormal alarm	Abnormal temp.(extra-high/extra -low temperature)
Board dropped alarm	Tower light:yellow-warming;green-normal;red-abnormal
Max. Width of pcb	320mm
Conveyor height	880±20mm
Conveyor direction	L-R/R-L
Conveyor speed range	0-1500mm
Pcb transmission agent	Mesh
Normal power	5.5KW
Start-up power	24KW

Features:
1. Heating system adopts Lead smt Heating technology.
2. Hot air no-contact output supported by imported large current solid-state relay, safe and reliable, meanwhile equipped with special SSR radiator, greatly improve the cooling efficiency, enjoy loner lifetime of the machine.
3. Heating devices used high quality components; ensure the whole system goes smoothly.
4. Combined with temperature controller PID fuzzy control function, has been monitoring the change of the ambient temperature and heat value ,with the minimum pulse control heating device , fast response, guarantee the temperature control precision ,minimize temperature distribution differences inside the oven ,the length direction of the temperature distribution accords to IPC STANDARDS .
5. Heating zone Module design, convenient for maintenance.
6. Sound and Light alarm when the temperature beyond the limit, with error analysis functions.
7. With small hot air cycle system design, up and down heating, good thermal compersation, perfect hot source efficiency, warm-up fast, suitable for BGA, CSP and 0201 ect, components solder welding .Unique forced hot air cycle structure, make components on PCB heated evenly.
8. Winding system adopts advanced wind air channel, working uniformly, with high hot source exchange.
9. Pre-heating zone, welding zone, cooling zone, cooling zone, up and down heating separately, independent cycle and temperature control, adjacent/beside zone temperature difference maximum value can reach 100 °C .No temperature exchange between zones, each zone temperature and wind speed can be adjusted.
10.Imported high temperature resistant motor straightly drive the hot air recycle, good heating balance, run smoothly, long lifetime, low noise, shock less .
11. Zones power match properly, warm-up fast, from room temperature to working temperature need 20 minutes, with hot source compensation function
12. Independent cooling zone, ensure the low temperature when PCB come out.
13. Transmission system adopts Japanese Frequency Motor, combined with 1:150 imported turbine reducer, running stably, the speed of 0-1500mm/min is adjustable.
14. Standing supported by independent wheels, with special stainless steel mesh belt, durable wearing resistant, especially for BGA, CSP and 0201 welding.
15.Rail + mesh belt transmission optional.
