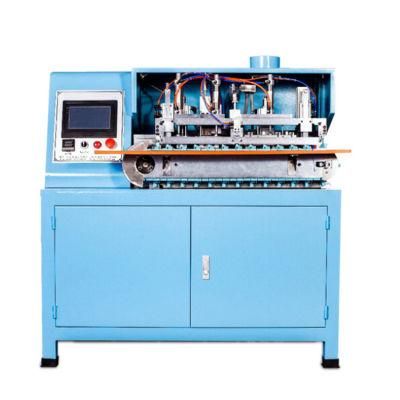

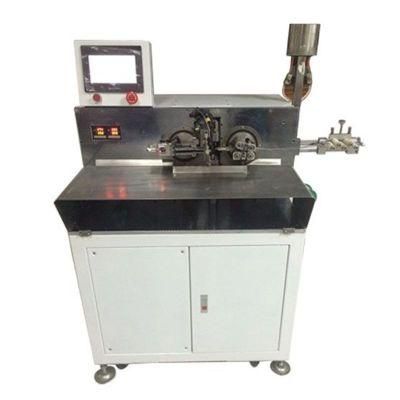

Ribbon Cable Single End Crimping and Housing Inserting Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Model：Wl-03cjh

Base Info

  • Model NO.：WL-03CJH
  • Input Power：AC220V 50Hz
  • Input Air Pressure：0.6-0.8MPa
  • Machine Power：2kw, 10A
  • Housing Inserting Speed：6,000-,8000 PCS,Hour (Depending on Wire Length)
  • Processing Length：20mm-600mm
  • Cutting Accuracy：-0.1mm~+0.1mm
  • Glue Box Separation：1.0, 1.25, 1.5, 2.0, 2.54mm
  • Crimping Mold：Taiwan Fengchen
  • Motor Brand：Delta
  • Solenoid Valve Brand：Airtac
  • Screw Guide Rail：Silver, Tpi
  • Space Occupation：5m²
  • Weight：900kg
  • Dimensions：1,600*1,500*2,000mm
  • Transport Package：Carton
  • Specification：cm
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：L=100mm, 2, 000-3, 000PCS,H

Description

1,600*1,500*2,000mm
This is a fully automatic cable single end crimping and housing connector plugging-in machine. It can process parallel twin cables, multiple electronic wires, and flat cables.

  • Applicable wires: parallel cables, multiple electronic wires, and flat cables

  • Processing length: 20mm-600mm

  • Applicable terminals and housing connectors: GH1.25, ZH1.5, PH, XH, VH, SM and other chain terminals and housing connectors.

  • Main function: wire fixed length cutting, wire splitting, stripping, terminal crimping and housing connector inserting.

  • Three modes available: electronic cable, flat cable, and super short cable. The three modes can be switched by one key on the HMI touch screen, and the humanized operation is convenient and quick.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Ribbon Cable Single End Crimping and Housing Inserting Machine

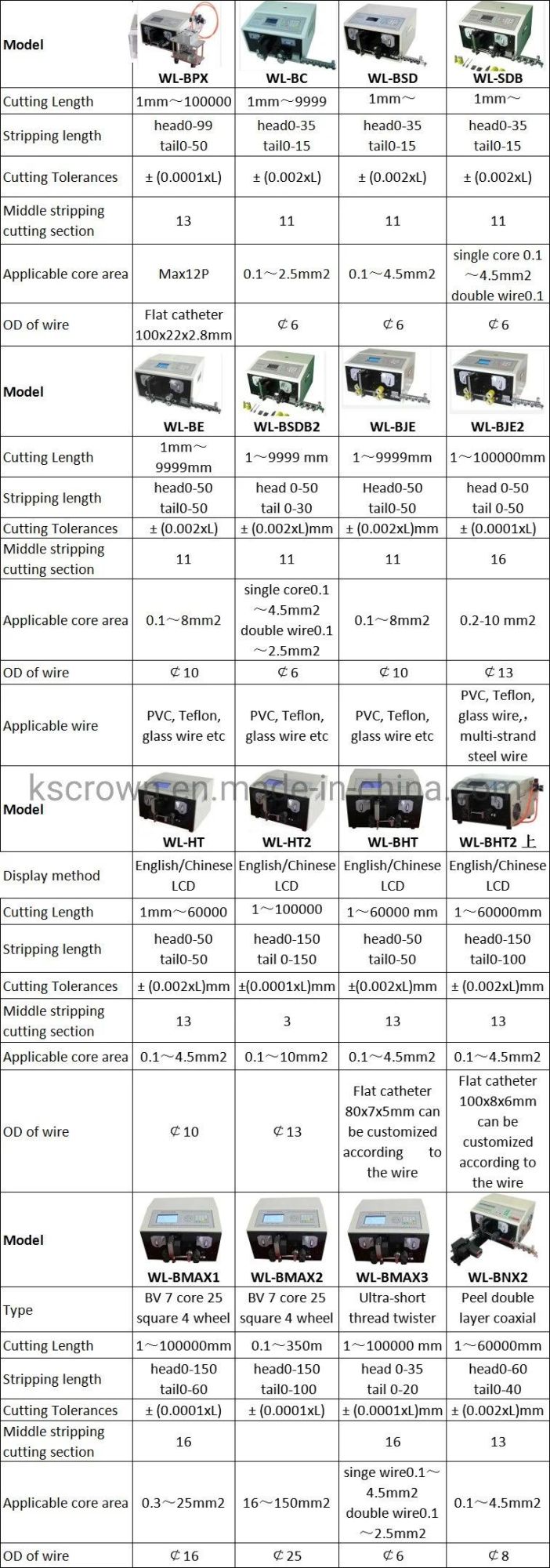

Related products:

Ribbon Cable Single End Crimping and Housing Inserting Machine

Ribbon Cable Single End Crimping and Housing Inserting Machine

FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.

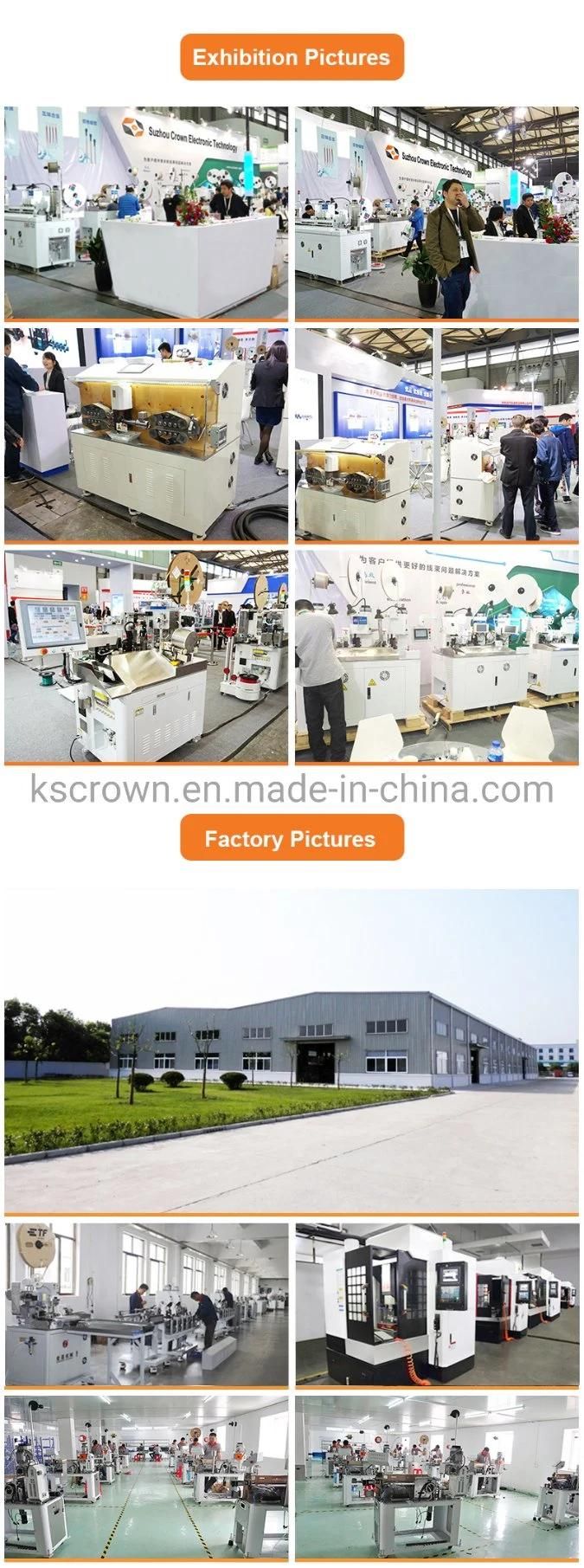

Company information:
