• Model NO.：F10
• Dimension：5800X1320X1490mm
• Number of Preheating Zones：up 10,Bottom 10
• Length of Preheating Zones：4640mm
• Nember of Cooling Zones：up 2,Bottom 2
• Max PCB Size：420mm
• Start Power：42kw
• Power Supply：5 Line 3 Phase 380V
• Control System：PC+PLC
• Tem Control：Pid+SSR
• Weight：2100kg
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Jaguar
• Origin：Shenzhen, China
• HS Code：85151900
• Production Capacity：100PCS,Month

Basic Info.

Model NO. F10 Dimension 5800X1320X1490mm Number of Preheating Zones up 10/Bottom 10 Length of Preheating Zones 4640mm Nember of Cooling Zones up 2/Bottom 2 Max PCB Size 420mm Start Power 42kw Power Supply 5 Line 3 Phase 380V Control System PC+PLC Tem Control Pid+SSR Weight 2100kg Transport Package Wooden Case Specification CE Trademark Jaguar Origin Shenzhen, China HS Code 85151900 Production Capacity 100PCS/Month

Product Description

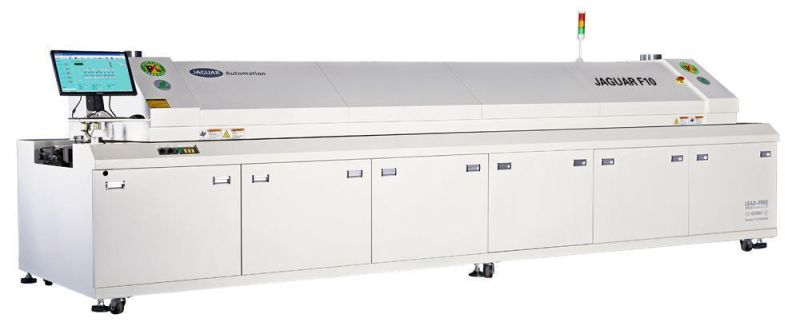

JAGUAR 10 Zones Lead Free Hot Air Reflow Oven F10




Introduction:

1.Heating zone

 1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
 1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
 1.3: 10 heating zones, 20 heating elements( up 10/ bottom 10 ) , independent temperature control and switch
 1.4: The latest design of nozzle plate, the best insulation performance

2.Control system

2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch

3.Conveyor system

3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the
accuracy is ±2mm/ Min

4.Cooling zone

4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5.Protection system

5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function

Machine parameters

Machine dimension	5800 x 1320x 1490mm
Color	Ivory
Net weight	Approx. 2150kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	42KW
Steady power consumption	8-12KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 30mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes


Machine configuration

Heating zone	Up 10, Bottom 10
Cooling zone	Up 2, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed
