• Model NO.：XJ-30,40
• Usage：Use for Wire Teflon Insulation Extrusion
• Wire Specification：0.2-2.5
• Extrusion Material：ETFE,FEP,PFA
• Screw Parameter：L,D Radio: 28:1
• Highest Outoput：5kg,H-30kg,H
• Highest Wire Speed：180m,Min
• Power：3kw,4kw Servo Motor or 7.HP,10HP
• Automatic Grade：Automatic
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：8 Sets,Month

Basic Info.

Model NO. XJ-30/40 Usage Use for Wire Teflon Insulation Extrusion Wire Specification 0.2-2.5 Extrusion Material ETFE/FEP/PFA Screw Parameter L/D Radio: 28:1 Highest Outoput 5kg/H-30kg/H Highest Wire Speed 180m/Min Power 3kw/4kw Servo Motor or 7.HP/10HP Automatic Grade Automatic Customized Customized Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 8 Sets/Month

Product Description

Micro-Fine Teflon Extrusion Machine for high temperature wire cable/car wire cable
Main Performance Of Teflon Extrusion Machine:

1.Extrusion concentricity: above 98%, OD tolerance: within+-0.001mm 2.The temperature of machine is controlled within +-1°C, the wire  speed of operated is 80-180/min (Difference will be base on wire specification)
 3.Extrusion Wire diameter range:φ0.3mm-1.5mm, automatic control wire diameter

Teflon Extrusion Machine Main constituted equipment specification and parameter:
A.      300-400 full-automatic minuteness active pay-offs.
B.      Full-automatic high frequency copper wire pre-heater
C.      30mm Teflon main extruder
D.     take out vacuum and adjust control device
E.      Main control electric appliance temperature control electric box
F.       Needn't Cross-eyed + allow fine adjustment Teflon handpiece (Domestic handpiece)
G.     1.5 meter removable type tank
H.     6 meter monolayer cooling tank
I.        high precision horizontal type 8 meter wire-storage machine
J.        φ318mm dual wheel type capstan
K.      φ200-300mm double-shaft take-ups
L.       Shanghai OULe outer diameter measuring and control instrument
M.   concave-convex diameter measuring
N.     TaiWan imported high frequency Spark machine (bought-in components)

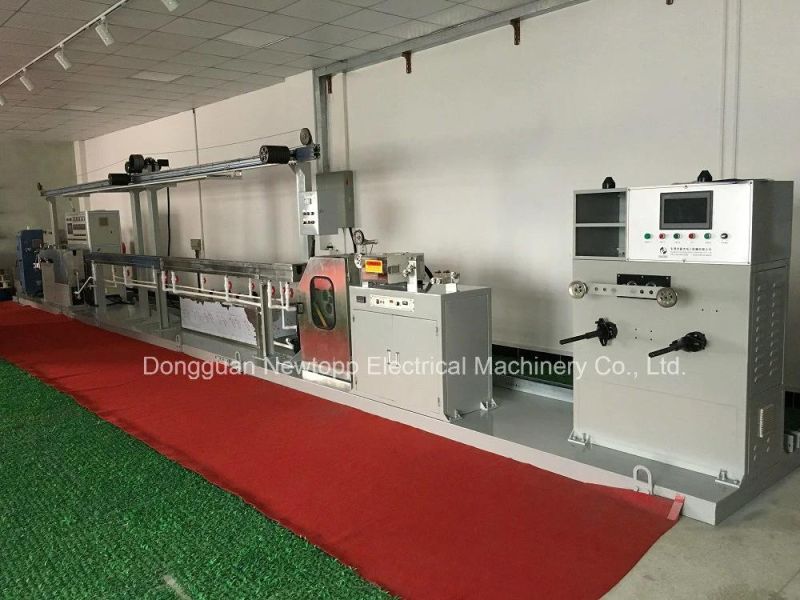

Teflon Extrusion Machine Show As below:

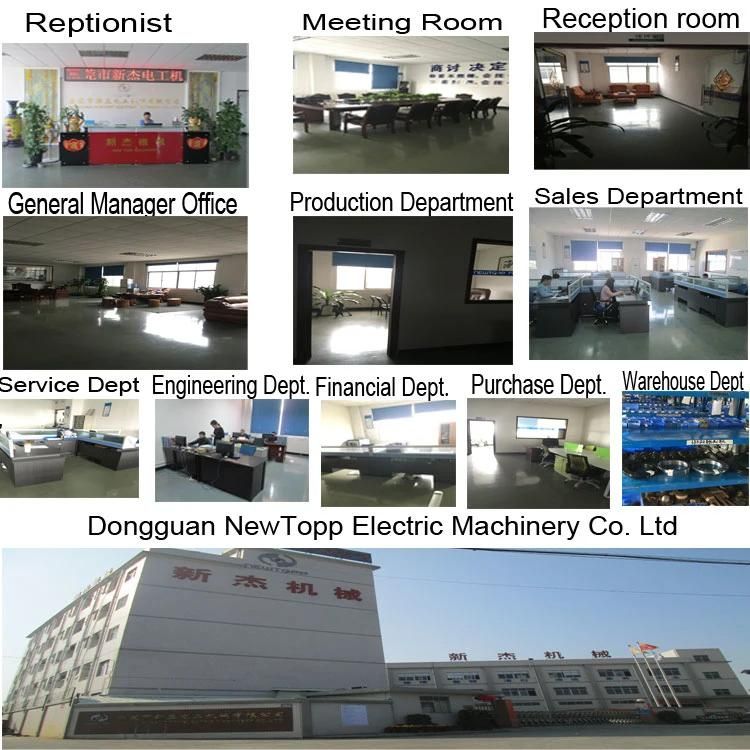

Company Introduction(Why choose us):

1.Dongguan NewTopp Electrical Machinery Co.,ltd is a profeesional enterprise specializing in Wire&Cable equipment R&D, design and Manufacture, Located in Humen Town, Dongguan City. It has very convenient transportation because of the high-speed rail, welcome our customers come to visit our factory at any time.

2. We were founded in Year 2009 but we are famous in cable machine business line and enjoy the higher reputation, our competitors regards us as "dark horse" becuase our rapid development, we are full of passion and energy, also we keep innovating. We have 10  patented products.

3. There is almost 5000 square meter of our company, we have workers about 100. Also we have a system departments:  Such as Financial department, Engineering department, After-sales service department, Purchasing department, Production department, Sales department, Personnel departmentManagement department etc.
