• Model NO.：HH-70,80,90
• Inverter：Yaskawa
• Bearing：Japan-NSK
• Available Material：BV,BVV,Bvr,RV
• Model Number：Hh-70mm
• Usage：Extruding
• Extrusion Capacity()：140kg,H
• Wire Speed：Max500
• Wire Spec.：1.5mm-12mm
• Color：Customized
• Pay-off Type：Double Axes,Dynamic Drum Take-up
• Pay-off Bobbin Size：Pn 400-630
• Screw Diameter：70mm
• L/D of Screw：25:1 Bm Type
• Main Unit Power：30HP
• Transport Package：Plastic Packing
• Specification：CE ISO
• Trademark：HOOHA
• Origin：Dongguan China
• HS Code：8477209000
• Production Capacity：10 Sets,Month

Team of HOOHA serviceNameEducationPositionMainly responsible for projectSpecializing in projectIndustry working history    ( year )zanyang XiecollegeGeneral EngineerThe total project design and planningpower cable machine15xiaohua HucollegeVis general engineerThe total project design and planningnet cable,data cable machine10Changhong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25xiuwu ChencollegeGeneral EngineerThe total project design and planningcopper drawing machine15lixin YuancollegeEngineerThe project design and planningcoppwer wire making technical16zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10haipin LiUniversityEngineering directorMarketing and salesproject consulting8sen YangUniversityEngineering translatorMarketing and salesproject consulting5

2. Certificate:






3. Application:

Applied to BV, BVV, BVR, RV, Nylon sheath, and halogen-free environmental-friendly building wire.


4. Technical Parameter:
 Machine modelHH-70HH-80HH-90Pay-off line typeDouble axes/dynamic drum take-upDouble axis wayPay-off bobbin size(mm)400-630630-800Screw diameter(mm)φ70φ80φ90L/D of screw25:1 BM typeExtrusion capacity(kg/hr)140200250Main unit power(HP)304050Cooling deviceSingle layer/doubleAccumulator capacity200mCapstan power(HP)57.57.5Wire speed(meter/minute)0-5000-4500-400Take-up line typeDouble axes bundle packing /axis packing/swaying tray coiler packingDouble axis way/axisReceving reel500mm-630mmTake-up line power(HP)557

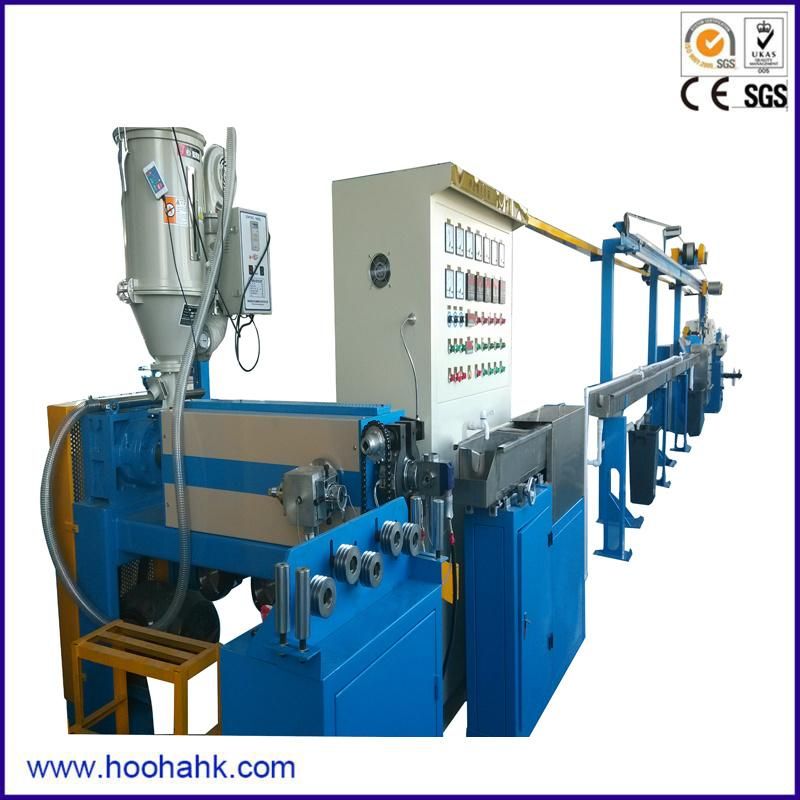

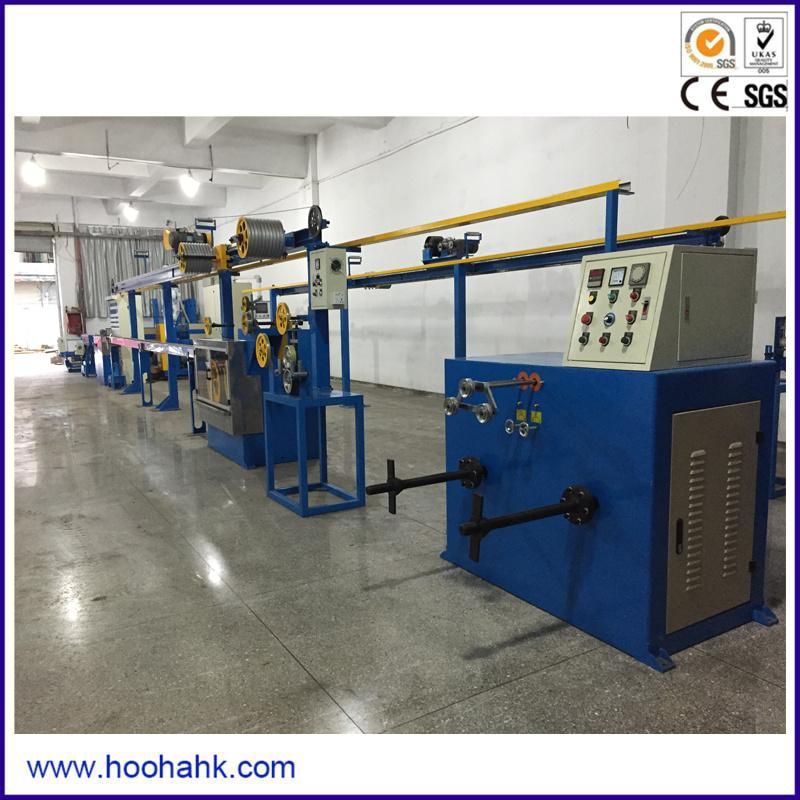

5. Product Details:







6. Spare Parts Brands:

1) Motor is Siemens.
2) Temperature control: RKC
3) Relay:Omron
4) Touch screen: Siemens
5) bearing:NSK,kOYO
6) Inverter:Yaskawa Japan


7. Components:

1,double-shaft pay-off rack
2,straightening workbench
3,main extrusion host
4,automatic dryer and hopper
5,electric main control cabinet
6. fixed water tank
7,Double/single layer fixed water tank
8. OD tester
9,printer
10,double-wheels capstan
11,Meter counter
12,accumulator
13. sparker
14,double-shaft take-up machine


8.After-sales service

1)Delivery date: 45 days
2)Payment: TT or L/C
3)Packing: plastic packing,ensuring the goods' safety during the transportation.
4)Install and training service: 2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.


9. HOOHA Advantages:





10.Contact information:

Phone: +8615015409397
Web: http//:hoohaco.en.made-in-china.com
         http://hoohaco.en.made-in-china.com/
Address:3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China


11.Where are we:

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
