Multi-Core Sheathed Cables Stripping and Twisting Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-3HN
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping

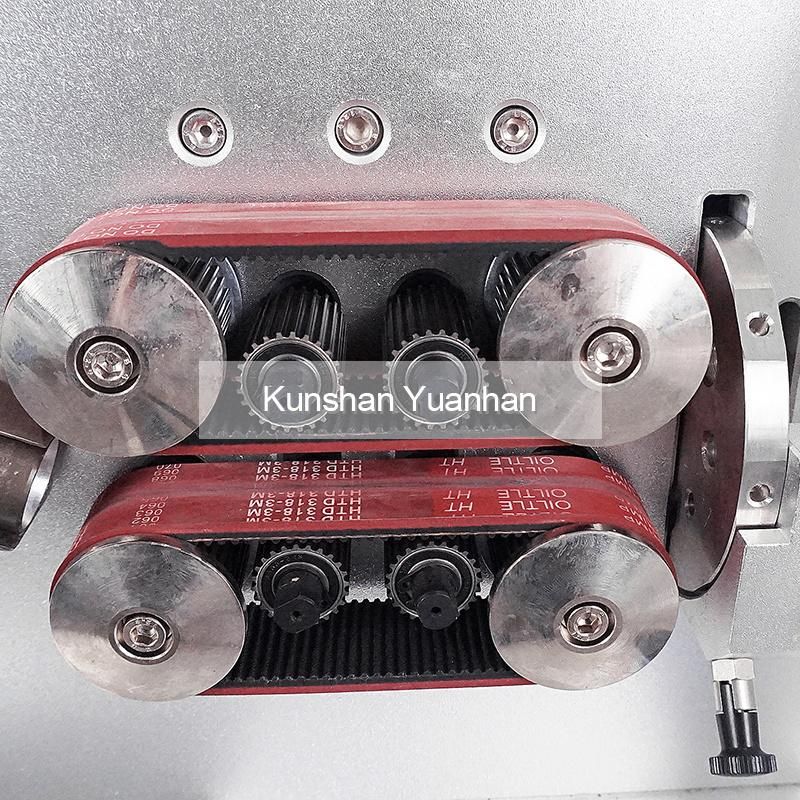

  • Feeding Method：12-Wheel Belt Feeder
  • Cutting Length：0.01-999999.99mm
  • Wire Diameter：6-30mm2
  • Core Wires：2-8 Cores
  • Head Peeling：Head Peeling Max 120mm
  • Tail Peeling：Tail Peeling Max 240mm
  • Stripping Accuracy：0.01mm
  • Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
  • Capacity：2300PCS,H
  • Detect Function：Wire Presence Detection
  • Air Pressure：0.5-0.8MPa
  • Input Power：AC220V,50Hz
  • Power：1.6kw
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm²Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max guiding pipe dia.Φ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.


Product Pictures

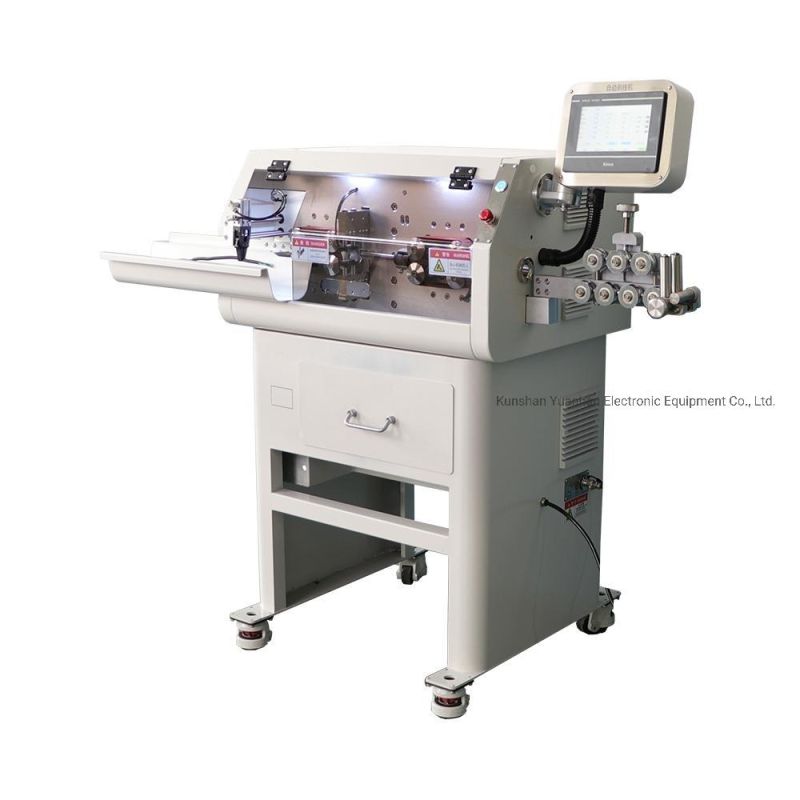

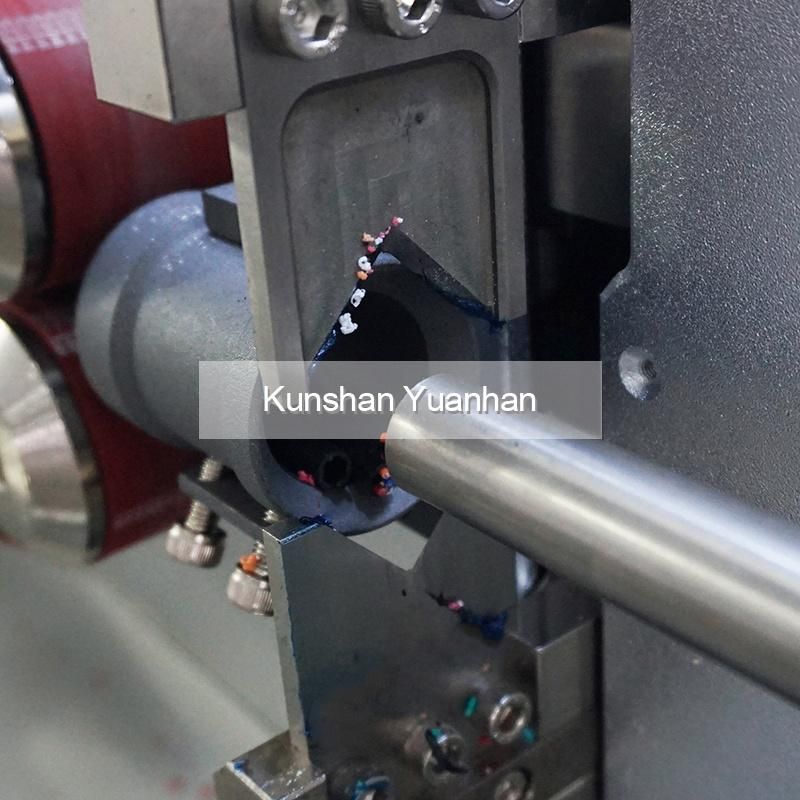

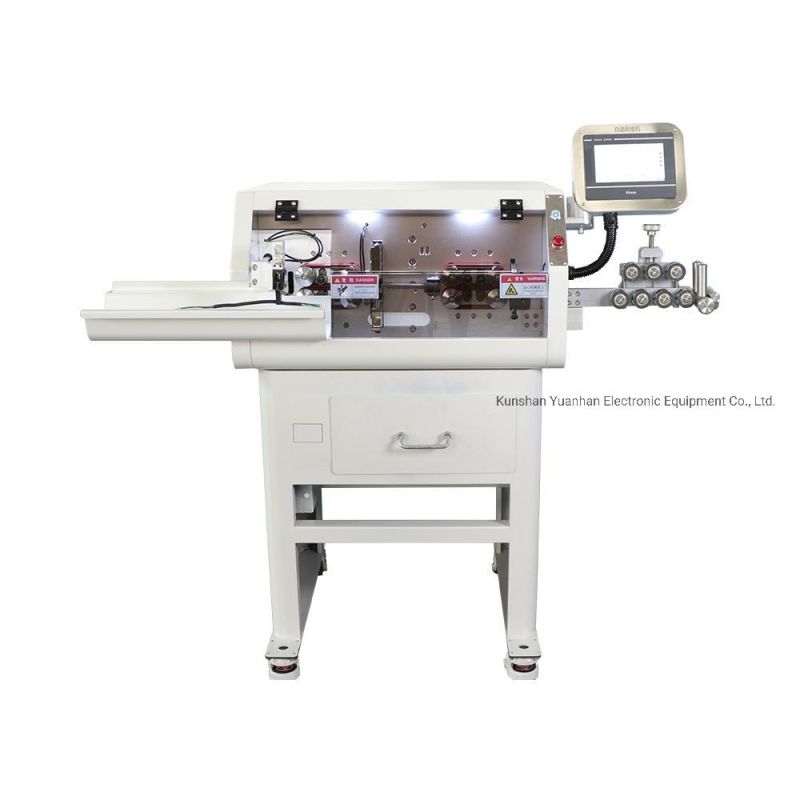

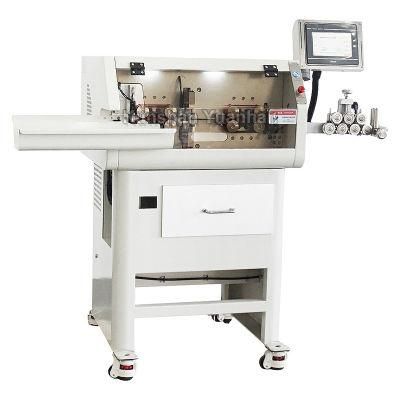

Multi-Core Sheathed Cables Stripping and Twisting MachineMulti-Core Sheathed Cables Stripping and Twisting Machine
Multi-Core Sheathed Cables Stripping and Twisting MachineMulti-Core Sheathed Cables Stripping and Twisting Machine

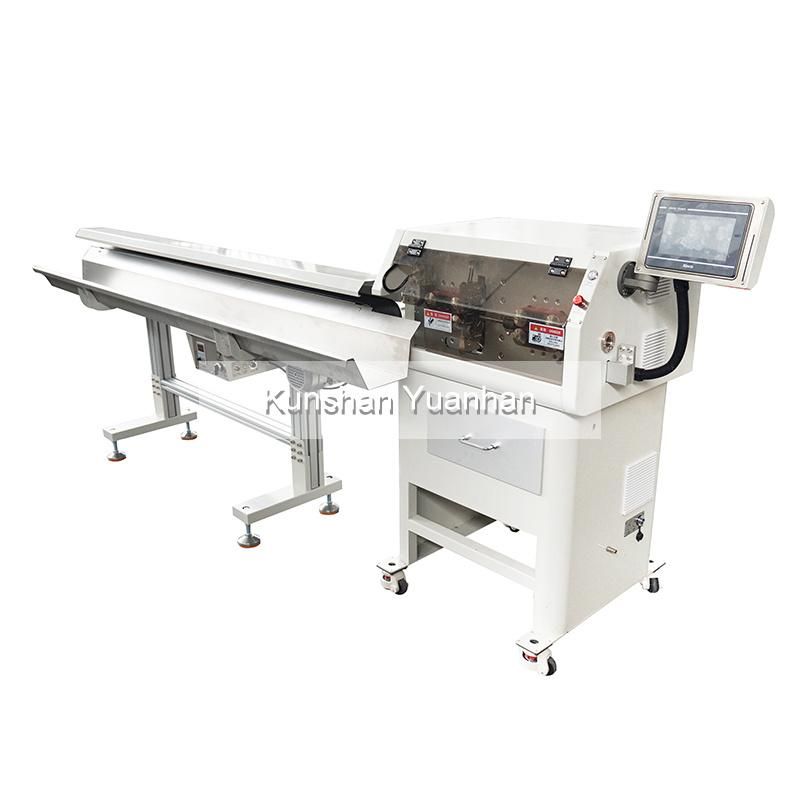

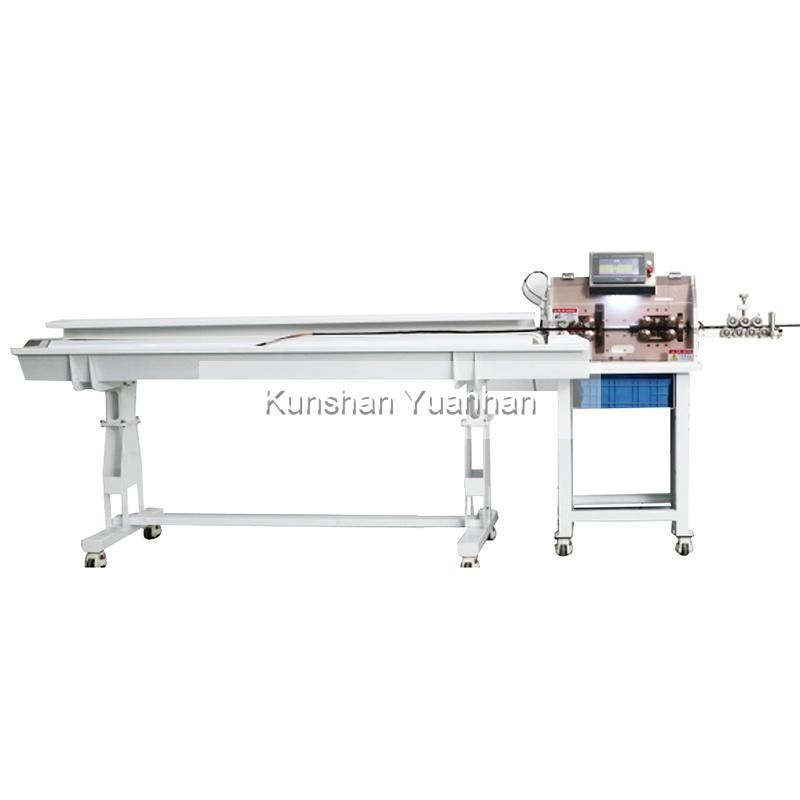

Multi-Core Sheathed Cables Stripping and Twisting MachineMulti-Core Sheathed Cables Stripping and Twisting MachineMulti-Core Sheathed Cables Stripping and Twisting MachineMulti-Core Sheathed Cables Stripping and Twisting Machine 30 square sheathed wire cutting and stripping both inside and outside.  All-in-one machine, with manipulator + 2 meters of wire take-up frameMulti-Core Sheathed Cables Stripping and Twisting MachineMulti-Core Sheathed Cables Stripping and Twisting Machine



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

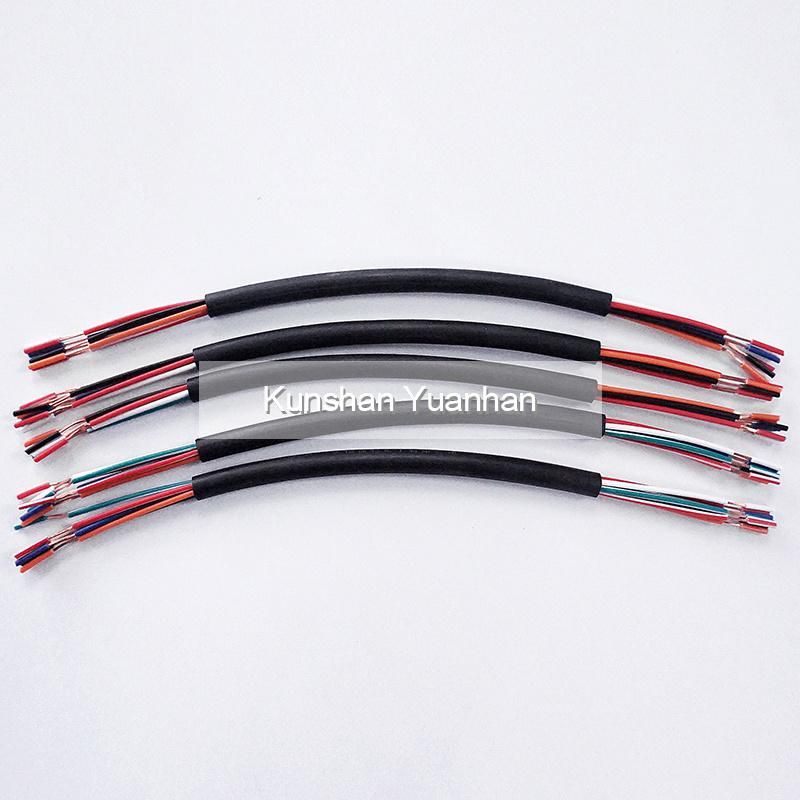

Sample: cut and strip wire automatically

Multi-Core Sheathed Cables Stripping and Twisting Machine
