8 Heads Smta Pick and Place Machine for PCB Assembly PCB Board Motherboard with 66 Feeders

Zhejiang NeoDen Technology Co., Ltd.
  • After-sales Service：2 Years Warranty
  • Condition：New
  • Speed：Super High Speed
  • Precision：High Precision
  • Certification：ISO
  • Warranty：24 Months

Base Info

  • Model NO.：NeoDenK1830
  • Automatic Grade：Automatic
  • Type：High-speed Chip Mounter
  • Model：Neodenk1830
  • Max Speed：14,000cph for LED Assembly
  • Average Speed：8500cph for Drive Board
  • Nozzle：8 Heads
  • Vision：Flying Vision System
  • Feeder Qty：64PCS (If 8mm, 12mm)
  • Packing Size：142*122*166.5cm
  • Camera Qty：8
  • Smallest Component：0402′
  • Max IC：40*40mm
  • Transport Package：Fumigation Free Wooden Case
  • Specification：142*122*166.5cm
  • Trademark：NeoDen
  • Origin：Zhejiang, Cn
  • HS Code：84798962
  • Production Capacity：50sets,M

Description

Overview Nozzle head qty6AlignmentFlying vision cameraDrive motorPanasonic servo motor A6Max speed14,000CPHMax tape feeder capacity64Smallest component0402'Other feederTray feeder, vibration feeder (selectable)Largest size40*40mm (lead pitch 0.4mm)Placement area630*300mm (1200mm optional)Max height10mmAir source 0.6MpaPower supply220v/ 110vPacking size142*122*166.5cmN.W/ G.W.280KG/ 360KGModelNeoDen7
Video from customers feedback:

1.https://pickandplace-neoden.en.made-in-china.com
2.https://pickandplace-neoden.en.made-in-china.com
3.https://pickandplace-neoden.en.made-in-china.com
4.https://pickandplace-neoden.en.made-in-china.com

Accessories:
1) Pick and Place Machine NeoDen7: 1
2) Nozzle: Totally 10 (CN065=2,CN100=2,CN140=2,CN220=2, CN400=1,CN750=1)
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Solid  Wrench:2
10)PCB Fixation Unit*8
11)PCB Positioning Block:4
12)Nozzle clean Tool:10
13)User Manual:1


 Customers' Cases

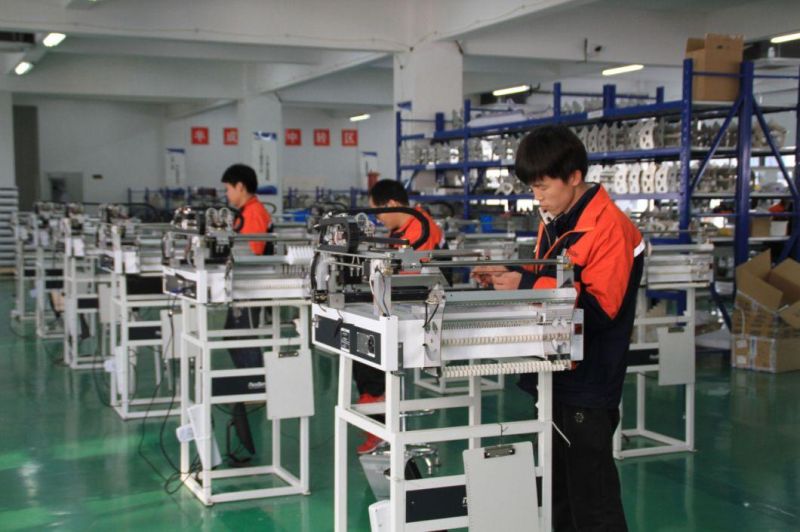

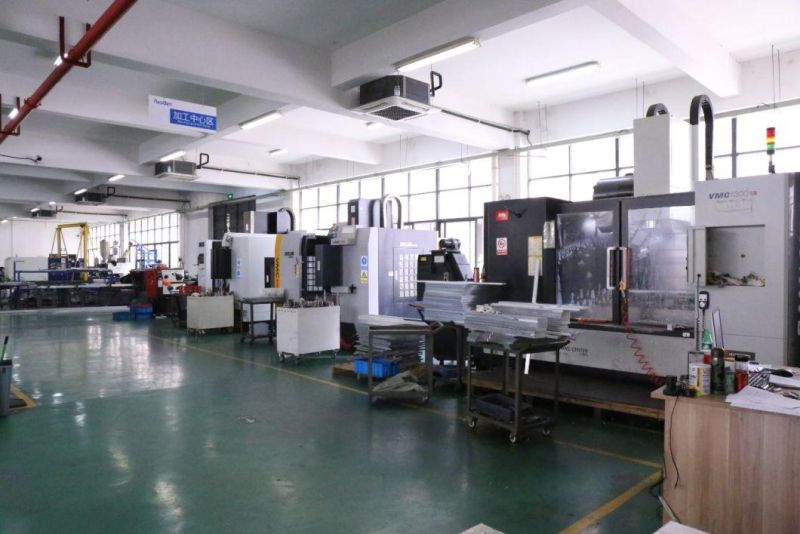

NeoDen in ExhibitionsFactory Tour8 Heads Smta Pick and Place Machine for PCB Assembly PCB Board Motherboard with 66 Feeders8 Heads Smta Pick and Place Machine for PCB Assembly PCB Board Motherboard with 66 Feeders8 Heads Smta Pick and Place Machine for PCB Assembly PCB Board Motherboard with 66 Feeders
