New Structure 1200rpm Interlock Cable Armouring Machine for Flat Submersible Oil Pump Cable
Alpha Technical Industrial Co., Ltd.- After-sales Service:Available
- Warranty:Available
- Condition:New
- Voltage:220V
- Packaging Material:Plastic
- Automatic Grade:Automatic
Base Info
- Model NO.:Alpha
- Reel Diameter:Krh-50,75,125
- Width of Strip(mm):9.5-25.4mm
- Thickness of Strip (mm):0.5-0.8mm
- Dia. of Cable(mm) :50-120mm
- Max Rotation Speed:500-700 Rpm
- Machine Color:Can Be Customized
- Armoured Cable Shape:Round or Flat
- Strip Material:Aluminium Strip or Steel Strip
- Product Name:High Speed Steel Strip Interlock Cable Armoring
- Transport Package:Standard Seaworthy Package
- Specification:Dia of cable: 50, 70, 120mm
- Trademark:Can be customized
- Origin:Jiangsu, China
- Production Capacity:1000 Sets Per Year
Description
Basic Info.
Model NO. Alpha Reel Diameter Krh-50/75/125 Width of Strip(mm) 9.5-25.4mm Thickness of Strip (mm) 0.5-0.8mm Dia. of Cable(mm) 50-120mm Max Rotation Speed 500-700 Rpm Machine Color Can Be Customized Armoured Cable Shape Round or Flat Strip Material Aluminium Strip or Steel Strip Product Name High Speed Steel Strip Interlock Cable Armoring Transport Package Standard Seaworthy Package Specification Dia of cable: 50, 70, 120mm Trademark Can be customized Origin Jiangsu, China Production Capacity 1000 Sets Per YearProduct Description

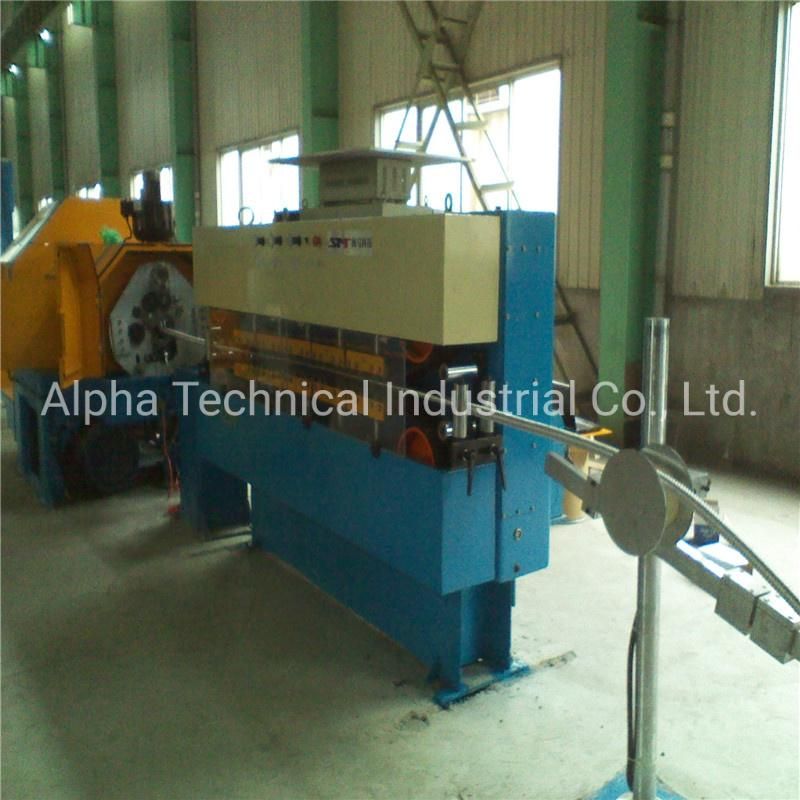

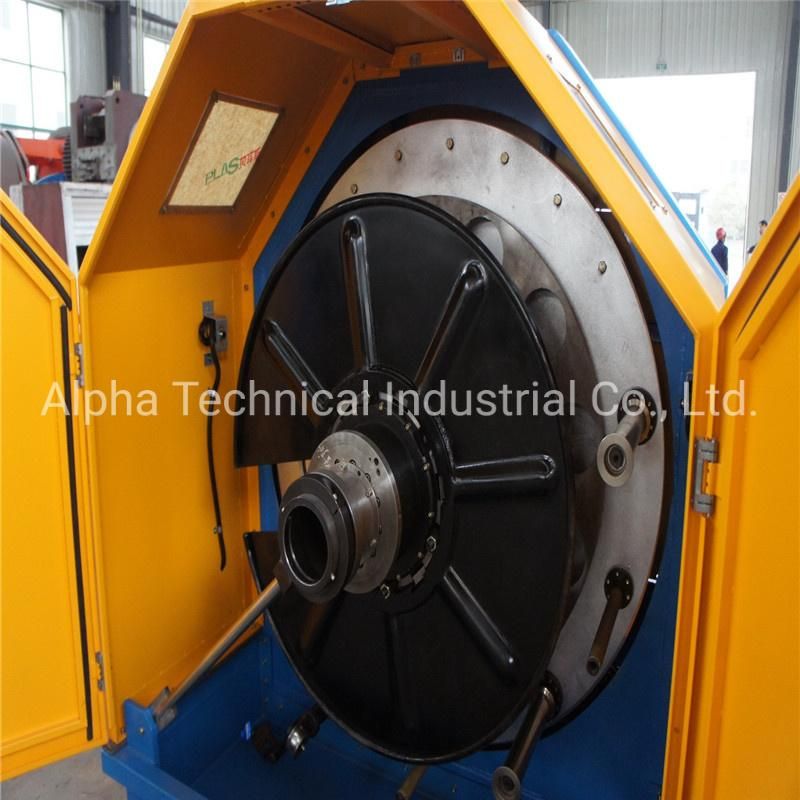

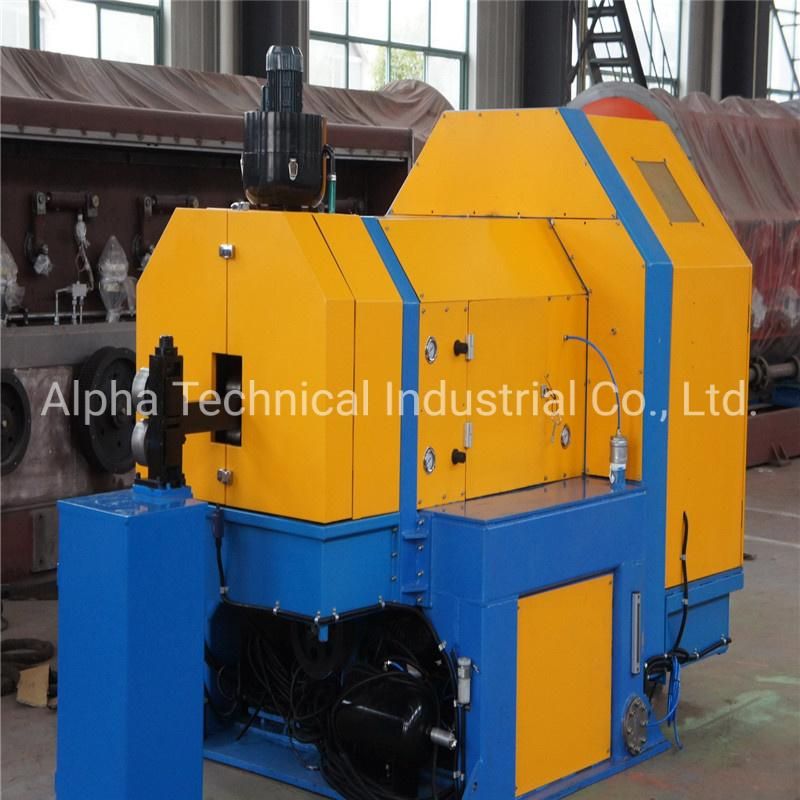

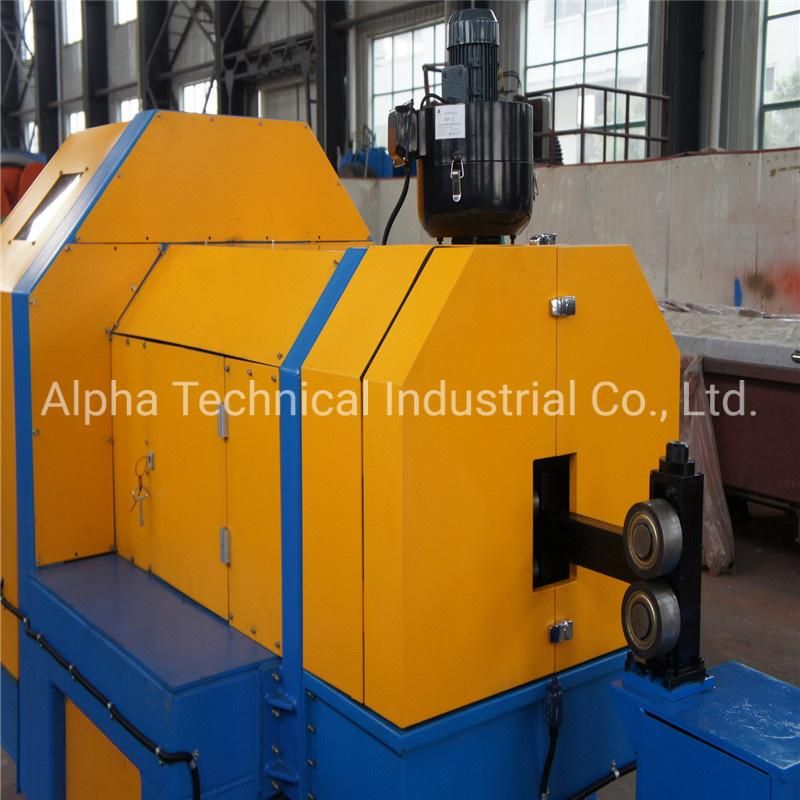

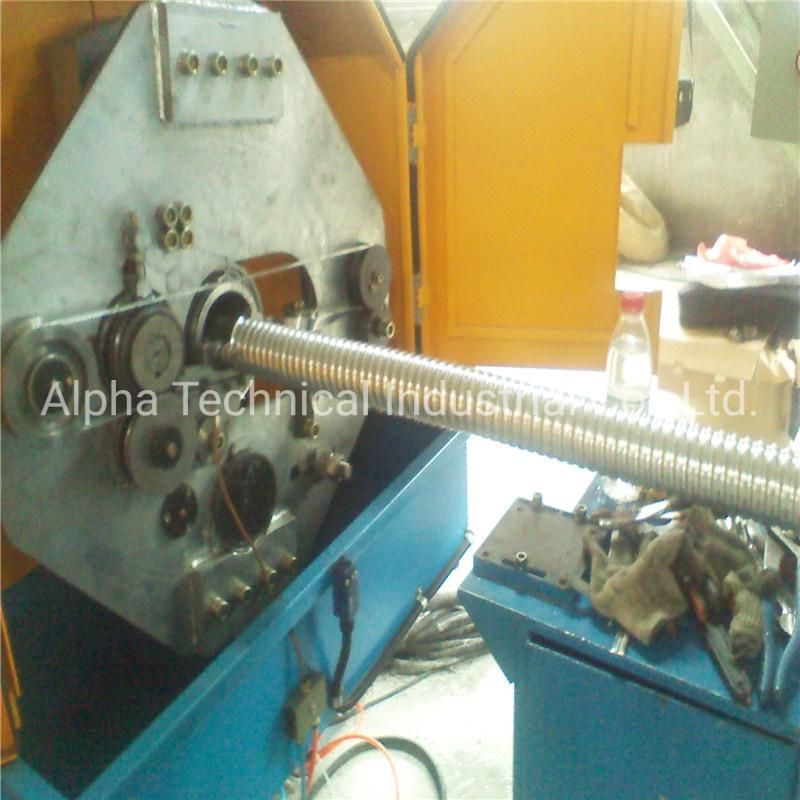

New structure 1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump CableEquipment Application:

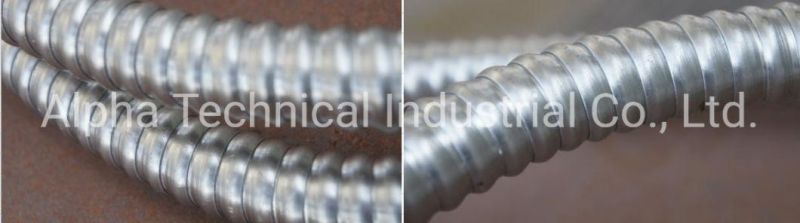

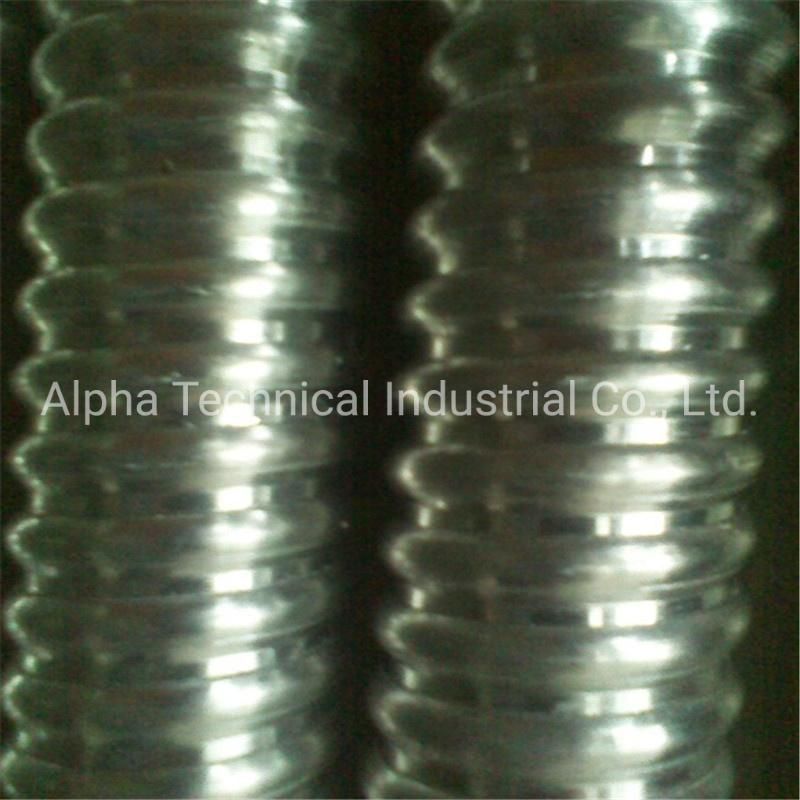

This machine is designed for aluminum alloy core, aluminum alloy sheathed cable coating purpose, For armouring productiuon of round BX and MC cable, and submersible pump cable.
Equipment feature:
1. The whole body of the machine frame is welded by high quality steel plate,good stablity.
2.Conveying speed is via main shaft through synchronous belt transmission to stepless variator,ensure the accuracy of main shaft speed and strip conveying speed.
3.Adopt individual structure, electrical control is synchronization with production line.
Main Technical Parameters
Reel diameter | Width of strip(mm) | Thickness of strip (mm) | Dia. of cable(mm) | Max rotation speed(rpm) |
KRH-50 | 9.5-15 | 0.5-0.6 | 50 | 700 |
KRH-75 | 9.5-19 | 0.5-0.7 | 70 | 600 |
KRH-125 | 9.5-25.4 | 0.5-0.8 | 120 | 500 |

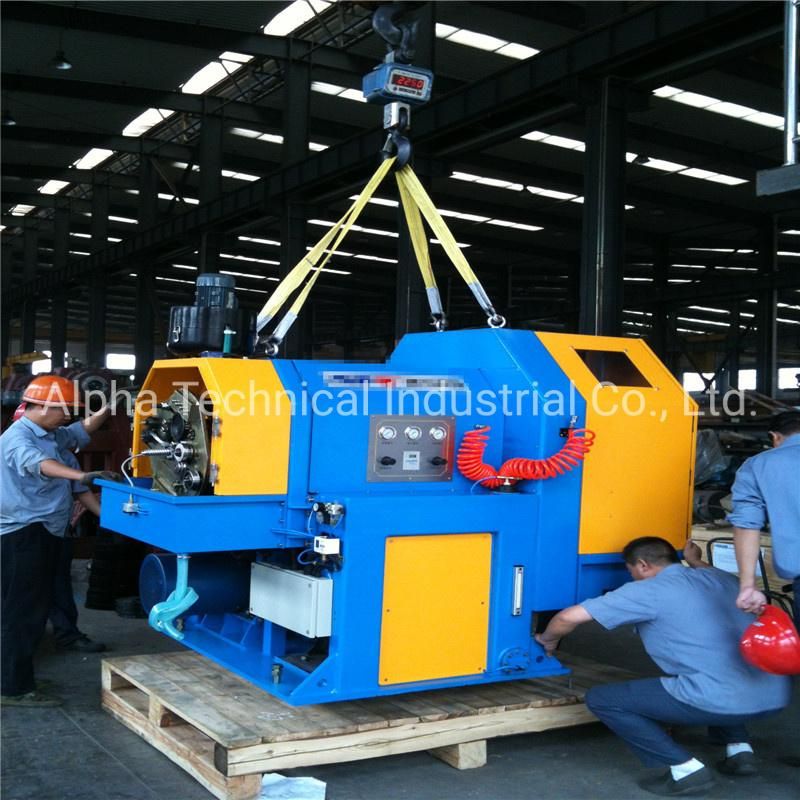

Package &Delivery

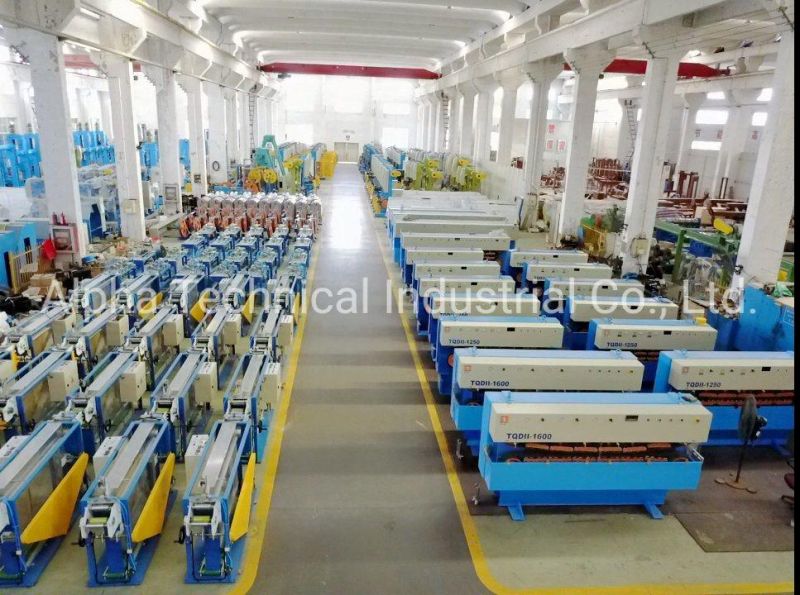

Our Factory

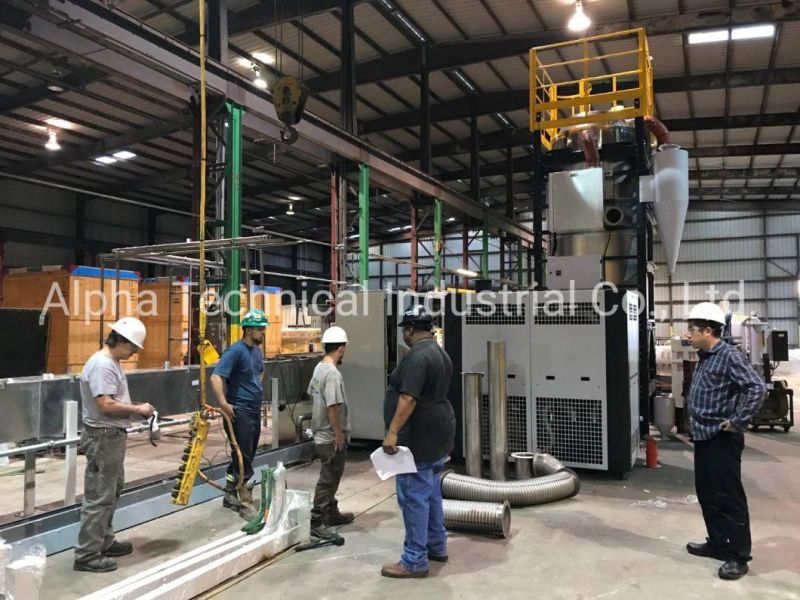

Customer Visiting
Our Team
FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
Enable us make accurate and detailed quotation for you, would you pls send the following information to us
1.What is cable outside diameter before armoring?
2.Is the armoured cable round or flat shape?
3.What is the strip material? Aluminium strip or steel strip
