• Model NO.：T200N
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Customized：Customized
• Transport Package：Plywood Case or Other Packing
• Specification：CE ISO SGS
• Trademark：TORCH
• Origin：Beijing, China
• HS Code：8514109000
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. T200N Precision High Precision Demoulding Automatic Heating System Electric Customized Customized Transport Package Plywood Case or Other Packing Specification CE ISO SGS Trademark TORCH Origin Beijing, China HS Code 8514109000 Production Capacity 100 Sets / Month

Product Description

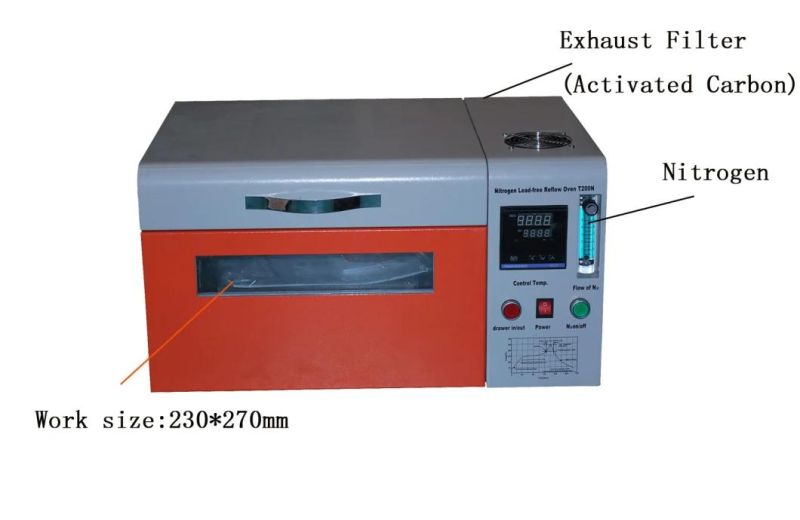

Desktop Small Nitrogen Lead-Free SMD SMT Reflow Oven T200N



Remark:
RoHS directive has publicized. During the welding process with lead-free, all of the electron
Manufacturers are thinking one question how to ensure the quality of lead-free welding. It is all
Known that the lead-free welding in quality control is more difficult than lead welding. In the
Generation of lead-free, Torch always try to satisfy the requirement of the trial-manufacture of
Lead-free welding and the manufacture of small batch and high quality for many years.
According to the practical requirement of small and middle sized electron factory, the small batch
Trial- product in research center, T200N is designed and manufactured by Torch technologists on
The basis of technical accumulation for many years. It has many specialties such as high precision,
Multi-function; Practicality; Steady capability; Long life; Energy-saving with high efficiency;
Viewable operation. It is been adapted in the research center, war industry, middle and small-sized
Corporation, small Private Corporation and other electronic production companies.

Technical instruction:
Item Parameter
Temperature control segment
40 segment. The segment can be set in computer according to the
Actual requirement.
Temperature-zone numbers Single-zone and multi-segment
Temperature control system PC control system, SSR non-contact output.
Temperature accuracy ± 2 degree
Warm-up time 3min
Temperature range Room-temperature -360 degree
Heating supply Infrared ray + Hot air convection
Effective working table area 360mm * 230mm (less than A4)
Welding time 3min± 1min
Temperature curve It can be set, adjusted and tested according to the actual requirement.
Cooling system Transverse flow equal cooling
Rated voltage AC single-phase, 220V; 50Hz
Rated power 3.8KW
Mean power 1.6kw
Weight 45kg
Dimension Length*width*height

Model	T200N
Temperature accuracy	± 2 degree
Warm-up time	3min
Temperature range Room-temperature	-360 degree
Welding time	3min± 1min
Weight	45kg
Dimension	820*460*310mm
