• Model NO.：,
• Mould Life：>1,000,000 Shots
• Type：High-speed Stranding Machine
• Material：Metal
• Colour：as Required
• Wire Diameter Specification：1.5-5.0mm
• Cage Speed：46-231 Rpm
• Stranding Pitch：71-781 mm
• Traction Wheel Diameter：2000 mm
• Pay-off Bobbin in Cage：Pnd 500,630,710
• Central Pay-off Bobbin：Pn800-Pn1600
• Take-up Bobbin：Pn1250-Pn3150
• Central Height：1000 mm
• Transport Package：Seaworthy Packing
• Specification：630 , 12 + 18 + 24
• Trademark：BH
• Origin：Hejian, Hebei, China
• HS Code：8479400000
• Production Capacity：15 Sets,Month

Model (Rigid Stranding Machine)JLK-500JLK-630JLK-710/720Diameter of single wireCopperφ1.5-5 mmφ1.5-5 mmφ1.5-5 mmAluminumφ1.5-5 mmφ1.5-5 mmφ1.5-5 mm Maximum stranded conductor ODφ35-55 mmφ35-55 mmφ35-55 mmStranding Pitch6 Bobbin Stranding Cage40-719 mm51-896 mm54-963 mm12 Bobbin Stranding Cage40-719 mm51-896 mm54-963 mm18 Bobbin Stranding Cage44-793 mm63-1056 mm57-1012 mm24 Bobbin Stranding Cage51-924 mm71-1246 mm66-1190 mm30 Bobbin Stranding Cage57-1028 mm87-1553 mm79-1403 mmRotating Speed6 Bobbin Stranding Cage230.6 r/min180.1 r/min150.6 r/min12 Bobbin Stranding Cage230.6 r/min180.1 r/min150.6 r/min18 Bobbin Stranding Cage208.5 r/min155 r/min142.6 r/min24 Bobbin Stranding Cage179 r/min130.1 r/min122.3 r/min30 Bobbin Stranding Cage161.8 r/min115.9 r/min102.7 r/minCapstanCapstan Wheel Diameter2000 mm2000 mm2000 mmMaximum Haul-off Force30 T30 T40 TPre-spiral DevicePitch500-2500mm500-2500mm500-2500mmMotor Power90-180 KW110-180 KW130-180 KWBobbin Size500*375*127630*475*127710*530*127Center Payoff Bobbin1600*800*801600*800*801600*800*80Take-up Bobbin2500*1500*1252500*1500*1253150*1900*160Maximum Haul-off Linear Speed69 m/min69 m/min62 m/minCentral Height1000 mm1100 mm1100 mm

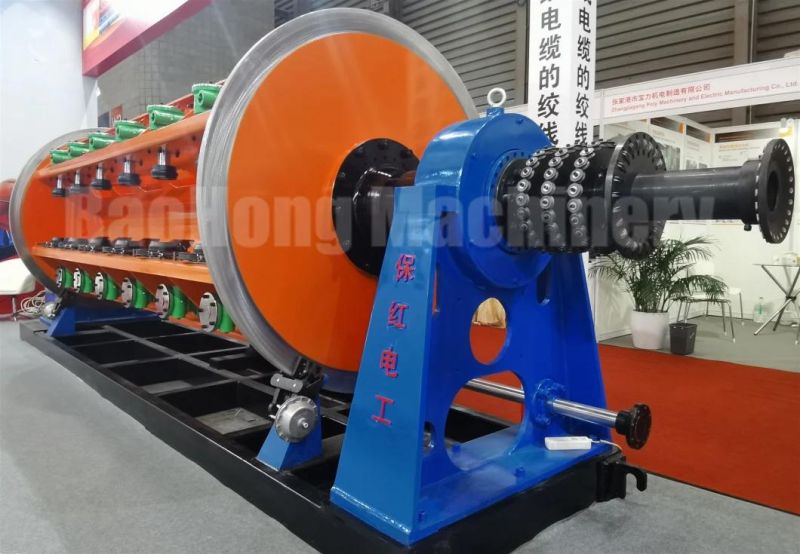

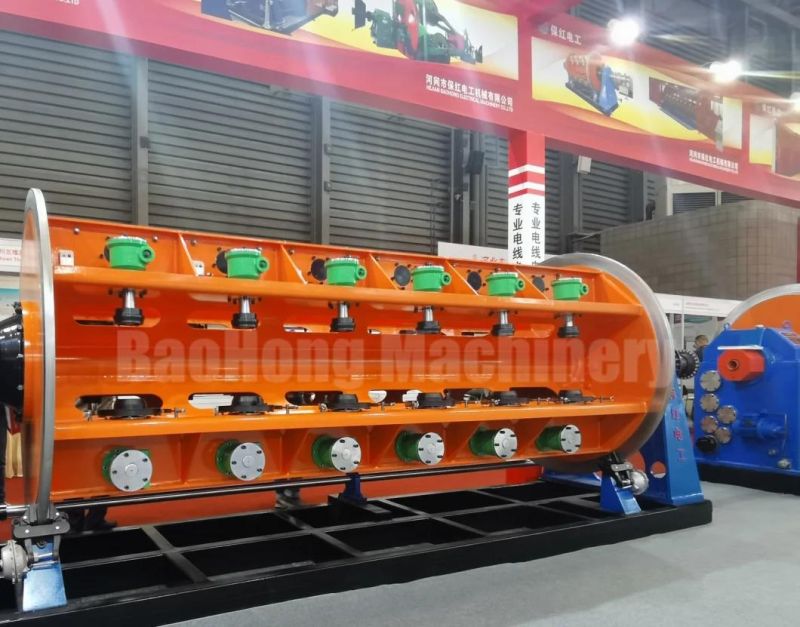

3.Photo
