• Model NO.：SR-IDC
• Voltage：AC220V 50,60Hz
• Pressing Mode：Pneumatic Cylinder
• Applicable Connector：IDC Type
• Air Source：0.6-0.8MPa
• Function：Cutting, Pressing
• Moving Drive Mode：Ball Screw
• Transport Package：Plywood Case
• Specification：3.5*2.3*2m
• Trademark：Sinrad
• Origin：China
• HS Code：8479819000
• Production Capacity：10 Sets,Month

Specification:

Name

Automatic double ends ribbon cable cutting IDC pressing machine

Model

SR-IDC

Function

Cutting, pressing

Dimension

3.5*2.3*2m

Applicable pins number of IDC

10-40pin

Min length of cable

40-50mm

Applicable connector

IDC type

Max length of cable

10-20m

Stripping

Without stripping function

Air pressure

0.6-0.8MPa

Machine weight

220kg

Control systemTouch screen. Features:

1) For IDC ribbon cable processing: cutting the cable to length needed, auto feeding the IDC, inserting the cable to IDC, and pressing IDC and cable.
2) Can do single end and double ends processing.
3) When processing the second end, the machine can rotate the cable 180°, so the IDC at two ends direction can be different.
4) Only one connector can be pressed at each end of a cable.

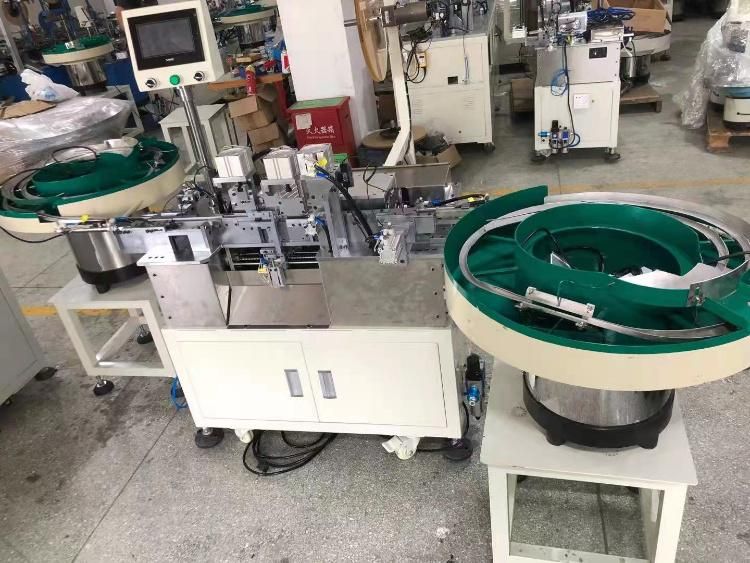

Pictures:

With two auto feeder for connectors.

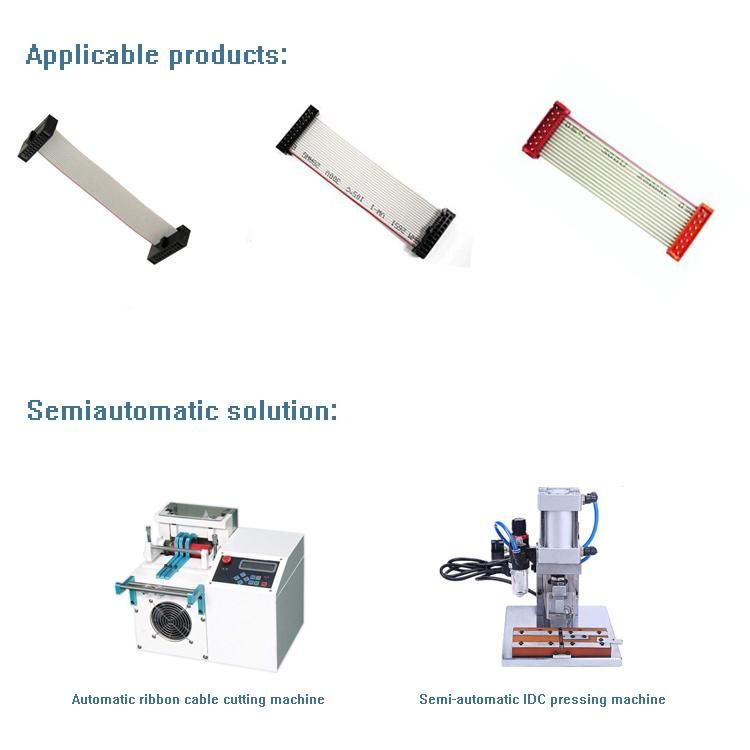

Finished products:






Service:


 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

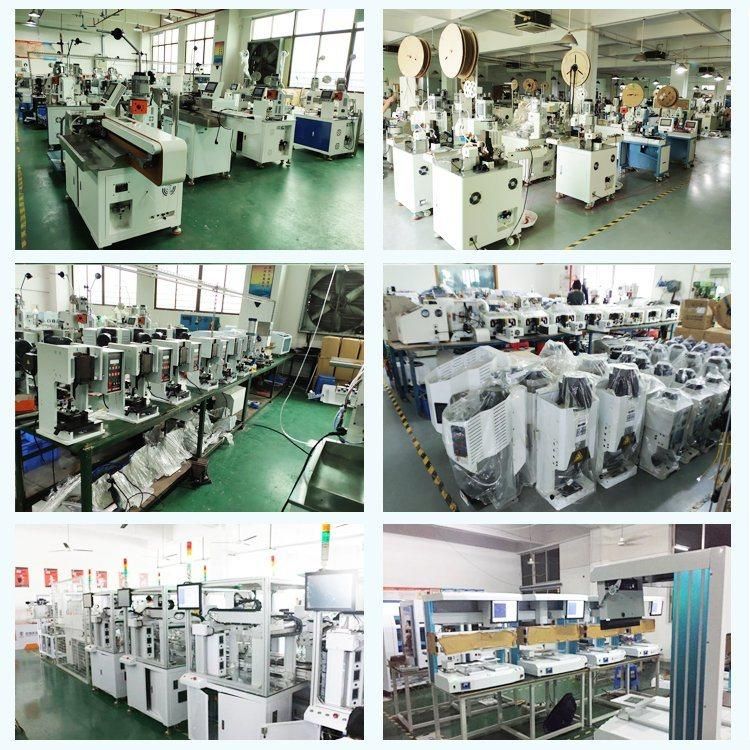

Company info:
