• Model NO.：WL-BAMX1
• Stripping Length Jacket：Head: 0-100mm, Tail: 0-100mm
• Cutting Length：1-100000mm
• Productivity：4000-5000 (L=100mmpcs,Hour)
• Drive Mode：6 Wheels Drive
• Weight：28kg
• Power：800W
• Middle Stripping Cutting Section：16
• Transport Package：Carton
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-BAMX1 Stripping Length Jacket Head: 0-100mm, Tail: 0-100mm Cutting Length 1-100000mm Productivity 4000-5000 (L=100mmpcs/Hour) Drive Mode 6 Wheels Drive Weight 28kg Power 800W Middle Stripping Cutting Section 16 Transport Package Carton Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

  WL-BAMX1 Automatic cable cutting stripping machine

Feature:
1Mechanical and electrical. Microcomputer for the integration of the fully automatic computer wire stripping machine is a kind of the introduction of Japan, Taiwan and other advanced technology of automatic numerical control equipment.

2.Widely used in electronic industry, automobile industry, electrical appliances, motors, lamps, toys and other kinds of wiring harness processing products. Optimum strip wire line with teflong/PVC/silicone /. Glass fiber, etc.

3.This product USES LCD screen people dialogue mode, has a beautiful appearance, simple operation, convenient maintenance, stable performance, fast speed, high precision characteristics.

4.Wire length can be set freely, according to the customer request to modify, can strip wire of different thickness, also have to row lines, sheathed cable, power cable and casing shear and other functions.



Specifications:


Model	WL-BMAX1	WL-BMAX2	WL-BMAX3
Type	BV 7 core 25 square 4 wheel drive	BV 7-19 cores 75 square 8 wheels drive	Ultra-short thread twister  shortest twist28-30mm
Input Voltage	AC220/ 50HZ	AC220/ AC110/60HZ/50HZ	AC220/ 50HZ
Power	1000W	2000W	450W
Display method	English/Chinese LCD	touch screen LCD/English/Chinese LCD	English/Chinese LCD
Cutting Length	1~100000mm	0.1~350m	1~100000 mm
Stripping length	Head0-150  tail0-60	Head0-150  tail0-100	Head 0-35           tail 0-20
Cutting Tolerances	± (0.0001xL)	± (0.0001xL)	± (0.0001xL)mm
Middle stripping                       cutting section	16		16
Available wire size	0.3-25mm2	1-75mm2	1-150mm2
OD of catheter	¢25	¢75	¢150
Applicable wire	PVC, Teflon, glass wire,,multi-strand steel wire	PVC, Teflon, glass wire,,multi-strand steel wire	PVC, Teflon, glass wire etc
Tool material	Multi-strand steel wire	Multi-strand steel wire	hard tungsten steel (optional)
Stripping speed	5000-6000	1500-2000	4000-10000
Drive method	eight-wheel drive	sixteen-wheel individual drive	Double - head twist line, also can single - head twist line.
Weight	65 kg	87 kg	190 kg
Dimension	70*70.5*49.5 cm	70*70.5*49.5 cm	93.7*82.7*62 cm

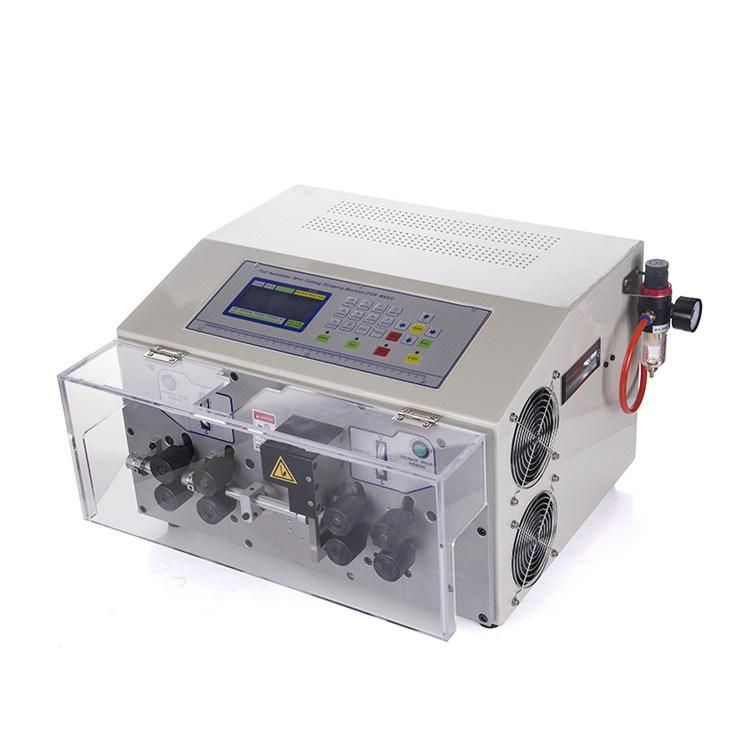

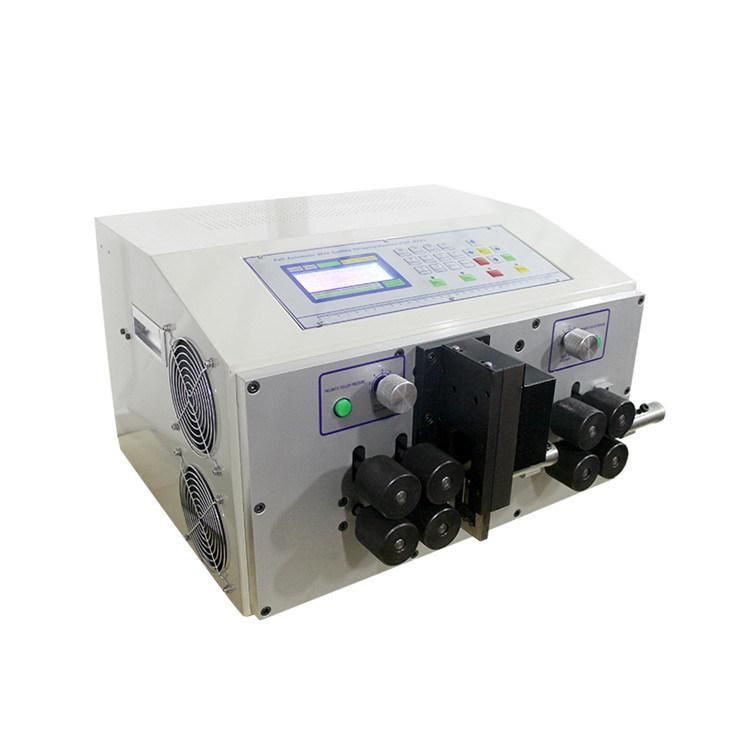

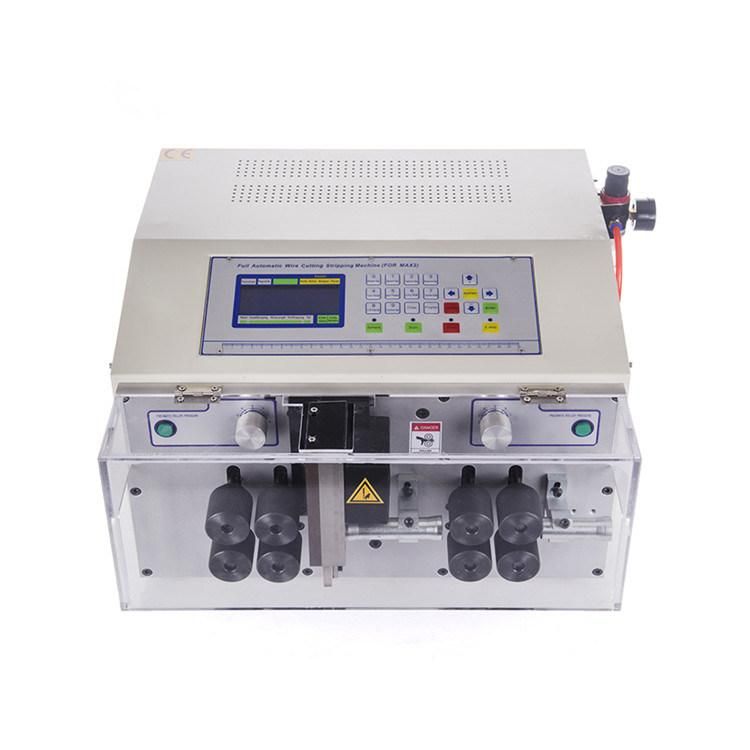

Product Show:

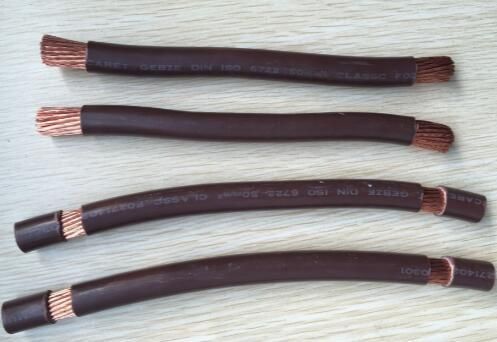

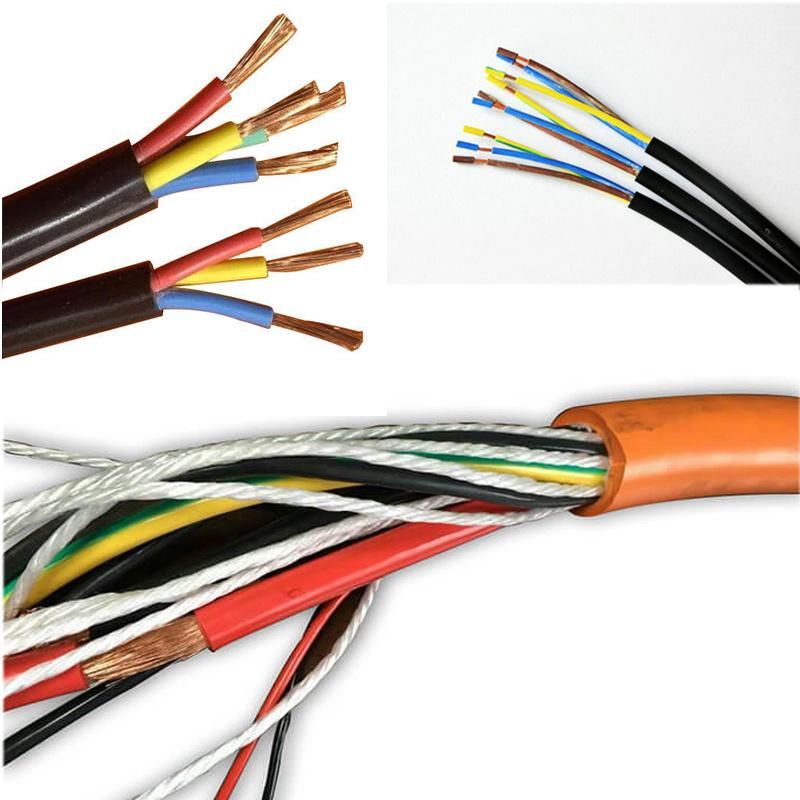

Application Terminal:








Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information

 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
