• Model NO.：200-1000

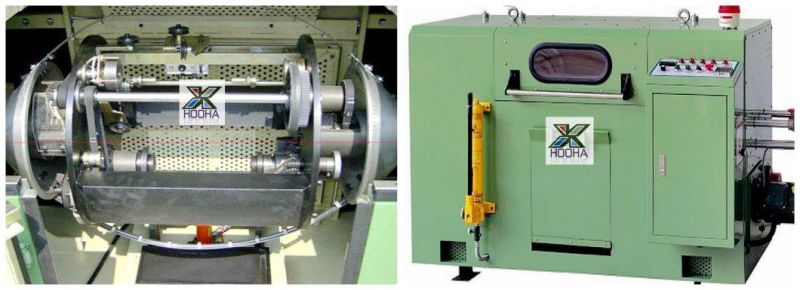

• Type：High-speed Stranding Machine
• Usage：Twisting
• Motor：Siemens
• Bearing：NSK
• Inverter：Siemens
• Electric Element：Siemens and Omron
• Features：Automatic
• Precision：High Precision
• Demoulding：Pull Core
• Style：New Design
• Transport Package：Plastic Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8479811000
• Production Capacity：20 Sets,Month

wistingApply to over 7thread silver plate wire,tin plated wire, enamelled wire,naked copper wire,CCS,CCA etc super fine conductor and cored wire twisting.Twisting directionTo left or rightAdjustable pitchPolish rod traverse unit,pitch & throw adjustableTake-up tensionTension adjustable,pulled wire no deformationAuto-stop machine1.The machine will brake automatically when the wires are broken inside or outside the machine
2.Automatically calculate the meter length of the wire. When the length reaches the set value, the machine would automatically brakeMachine bearingMain bearing made in Sweden,others in Japan


HH-200HH-250HH-300(min)TwistingApply to over 7thread silver plate wire,tin plated wire,enamelled wire,naked copper wire,CCS,CCA etc super fine conductor and cored wire twisting.Finished wire range19-32AWGTwisting section(mm2)0.0014-0.00350.005-0.30.0137-0.45Diameter of single wire(mm)Φ0.016-0.08Φ0.03-0.16Φ0.05-0.16Twisting distance(mm)0.8-4.00.8-10.6 (24 kinds)1.6-17.1 (24 kinds)Copper loading weight (kg)Max 20Max 20Max 30Max speed5000rpm(10000t/min)4000rpm(8000t/min)3000rpm(6000t/min)Twisting directionTo left or rightAdjustable pitchPolish rod traverse unit, pitch & width adjustableTake-up tensionTension adjustable,pulled wire no deformationAuto-stop machine1.The machine will brake automatically when the wires are broken inside or outside the machine
2.Automatically calculate the length of meter, when the length reaches the set value, the machine would automatically brakeMachine bearingMain bearing made in Sweden,others in JapanPower(HP)3HP controlled inverter5HP controlled inverter5HP controlled inverterNoise level(dB)Approx 75Machine dimension(mm)(L)1800×(W)750×(H)850(L)1900×(W)750×(H)950Machine net weight(kg)Approx 700Approx 750Approx 850 Machine model5006508001000Twisting section(mm2)0.05-2.500.80-6.000.25-10.001.50-16.00Diameter of single wire(mm)Φ0.08-0.41Φ0.12-0.64Φ0.38-1.00Φ0.38-1.70Twisting distance(mm)4.22-39.64 (30 kinds)4.20-130.0022.51-155.3235.00-200.00Copper loading weight (kg)Max 250Max 400Max 900Max 1200Max rotation
speed2200rpm(4400t/min)/
3000rpm(6000t/min)1800rpm(3600t/min)1200rpm(2400t/min)800rpm(1600t/min)Power(HP)5-7.5HP controlled Inverter10HP controlled Inverter15HP controlled inverter25HP controlled inverterNoise level(dB)Approx 75-80Approx 75-80Approx 75-80Approx 75-80Machine dimension(mm)(L)2690×(W)1060×(H)1230(L)2850×(W)1500×(H)1600(L)3673×(W)1550×(H)1650(L)4473×(W)2200×(H)2300Machine net weight(kg)Approx 2000Approx 4000Approx 5000Approx 8000
5. Spare parts brand

All configurations are first-rate, we don't like to talk about configuration because, as a company that considers quality first, a first-class brand is its basic requirement.

Motor: Siemens
Inverter : available to Japan Yaskawa, Siemens, America Emerson
Temperature Control Meter : Japan RKC, Omron
PLC : German Siemens , Japan Misubishi
Auxiliary Relay: Japan Omron
Ammeter and Voltmeter: Taiwan Risesun
Indicator, Switch and Button : Taiwan TEND
Contactor: Taiwan Shihlin ,Schneider
Relay: Japan Omron
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

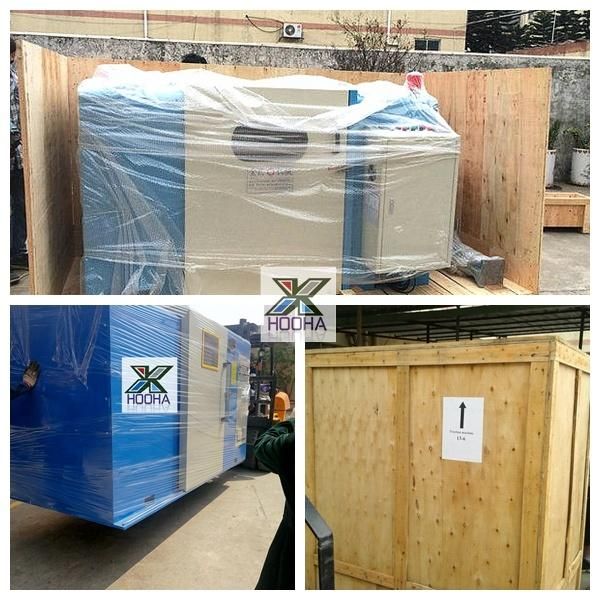

6.Delivery



7.After-sale service

1. Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training
2. Free lifetime online consultation service
3. Long-time maintenance, reconstruction and upgrade services of the wire and cable equipment
4. Additional service support, such as raw material or accessories supply and suggestions



8.What can we provide

1.Professional and customized wire and cable solutions
2.Suggestions and guidance of the overall cable factory operation
3.Overseas on-site installation and operation instruction
4.Cost accounting service of raw materials and accessories
5.Cost accounting service of overall production operation
6.Talent delivery and training service
7.Lifetime after-sales online consultation service
8.Maintenance, reconstruction and upgrade services of the overall equipment
9.Additional support, such as raw material or accessories supply and suggestions, etc.



9.Choose us

Our YTB channel: tiezhong chi/HOOHAWIREMACHINE

1. Our experienced technical team provide customized project plan for you according to your specific needs.
2. We guarantee to offer new superior goods.
3. We would like to send technicians to the installation site to help provide technical instruction, quantity estimation, installation, preliminary testing, and help start up operation. If there is any problems with the product, we will reply within 12 hours and arrive at the site within 36 hours.
4. After installation,We'll send skilled Technical personnel to conduct a preliminary test and answer any problems emerged. We will bear all the costs of maintenance, tests or retest within the scope of our duty stipulated in contract.
5. Within the validity of the contract,if the equipment can not be used properly due to our unqualified goods, improper files or the fault of our instructor, we'll change the products at once without compensation and take charge in all expenses of re-installation.
