LED Light Making Reflow Soldering Machine
Shenzhen Jaguar Automation Equipment Co., Ltd.- Condition:New
- Certification:CE
- Warranty:12 Months
- Automatic Grade:Semiautomatic
- Installation:Vertical
- Length of Heating Zones:2400mm
Base Info
- Model NO.:reflow oven A6
- Heating Mode:up:Hot Air; Bottom: IR
- Cooling Mode:Force Air
- Max. Width of PCB:350mm
- Mesh Belt Width:400mm
- Transmission Type:Mesh
- Conveyor Speed:0-1000mm,Min
- Total Power:28kw
- Warming Time:About 20 Mins
- Temp. Setting Range:Room Temperature-300ºC
- Transport Package:Wooden Case
- Specification:3500× 700× 1320mm
- Trademark:jagaur automation
- Origin:Shenzhen
- HS Code:8515190000
- Production Capacity:100pieces,Year
Description
JAGUAR A6
Heating System
Number of heating zones
UP 6/BOTTOM6
Length of heating zones
2400MM
Heating mode
Up:hot air; bottom: IR
Cooling Mode
Force air
Conveyor System
Max. Width of PCB
350mm
Mesh belt width
400mm
Transmission Direction
L→R(or R→L)
Transmission Net Height
880±20mm
Transmission type
Mesh
Conveyor speed
0-1000mm/min
Fixed rail side
Front rail fixed(option:rear rail fixed)
Control system
Power supply
5 line 3 phase 380V 50/60Hz
Total power
28kw
Starting power
24kw
Normal power consumption
4KW
Warming time
About 20 mins
Temp. setting range
Room temperature-300ºC
Temp. control method
PID close loop control & SSR driving
Temp. control precision
±1ºC
Temp. deviation on PCB
±2ºC
Data storage
Process Data and status storage
(80 GB)(machine with PC)
Nozzle plate
Aluminum Alloy Plate
Abnormal Alarm
Abnormal temp. (extra-high/extra-low temp.)
Board dropped alarm
Tower light:yellow-warming, Green-normal, Red-abnormal
General
Dimension(L*W*H)
3500×700×1320mm
Weight
600KG
Color
Computer gray
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

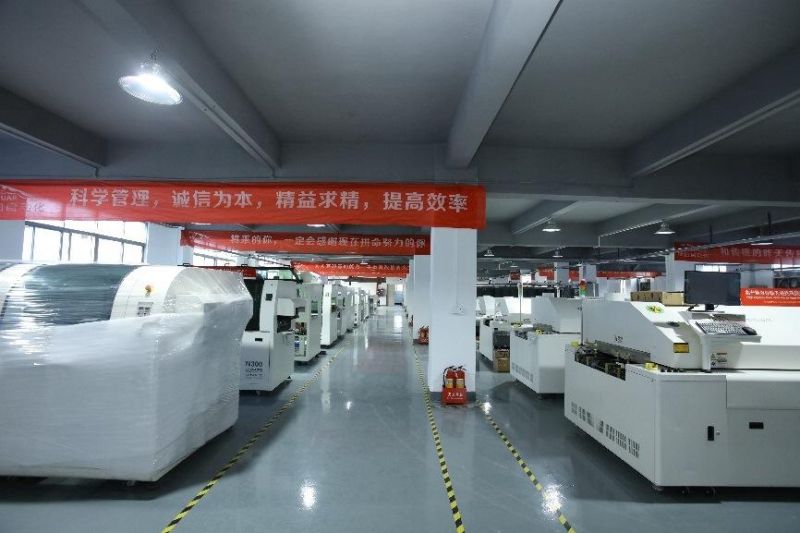

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Packing and shipping:
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
