• Model NO.：R10
• Number of Cooling Zones：up 3 Bottom 3
• Length of Heating Zones：3900mm
• Heating Mode：Hot Air
• Cooling Mode：Air Oven:Forced Air
• Max. Width of PCB：450mm
• Transmission Type：Mesh and Chain
• Conveyor Speed：0-2000mm,Min
• Components High：Top and Bottom 25mm
• Power Supply：5 Line 3 Phase 380V 50,60Hz
• Transport Package：Wooden Box
• Specification：5710*1350*1490mm
• Trademark：JAGURA
• Origin：China
• HS Code：8501101000
• Production Capacity：100 Sets,Month

JAGUAR R10



Heating SystemNumber of heating zonesUP 10/BOTTOM 10Number of cooling zonesUp 3 bottom 3Length of heating zones3900mmHeating modehot airCooling ModeAir Oven:Forced airExhaust Volume10m³/min * 2 exhausts




Conveyor SystemMax. Width of PCB450mmMesh belt width500mmTransmission DirectionL→R(or R→L)Transmission Net Height900±20mmTransmission typeMesh and chainRange of rail width0-450mmConveyor speed0-2000mm/minAuto/manual LubricationstandardFixed rail sideFront rail fixed(option: rear rail fixed)Components highTop and bottom 25mm







Control systemPower supply5 line 3 phase 380V 50/60HzTotal power50kwStarting power48kwNormal power consumption10KWWarming timeAbout 20 minsTemp. setting rangeRoom temperature-300ºCTemp. control methodPID close loop control & SSR drivingTemp. control precision±1ºCTemp. deviation on PCB±2ºCData storageProcess Data and status storage(80GB)Nozzle plateAluminum Alloy PlateAbnormal AlarmAbnormal temp. (extra-high/extra-low temp.)Board dropped alarmTower light:Yellow-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H)5710×1350×1490mmWeight2150KGColorComputer gray
Our main product:

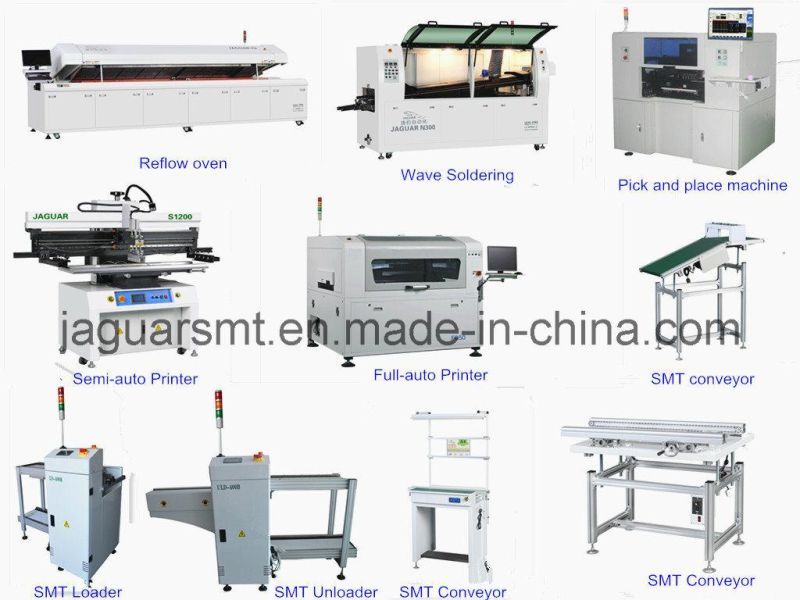

1. wave soldering,reflow ovens;
2.pick and place machine;
3.solder paste printer;
4.AOI machine;
5.SMT conveyor, PCB loader and unloader, DIP line ect.



About us:
JAGUAR is the  leader of SMT machine industry in China .We focus on technological innovation and lean manufacturing with high-tech talents .
What we can do for you if you want to set up a SMT factory?as follows:
1. we can provide full SMT solution.
2. we can provode you with top technical support.
3. we have enrich experience in guiding and supporting the new SMT factory.
4.we can provide the best professional tech service.
5.we can help you to deal with all the trouble about SMT.

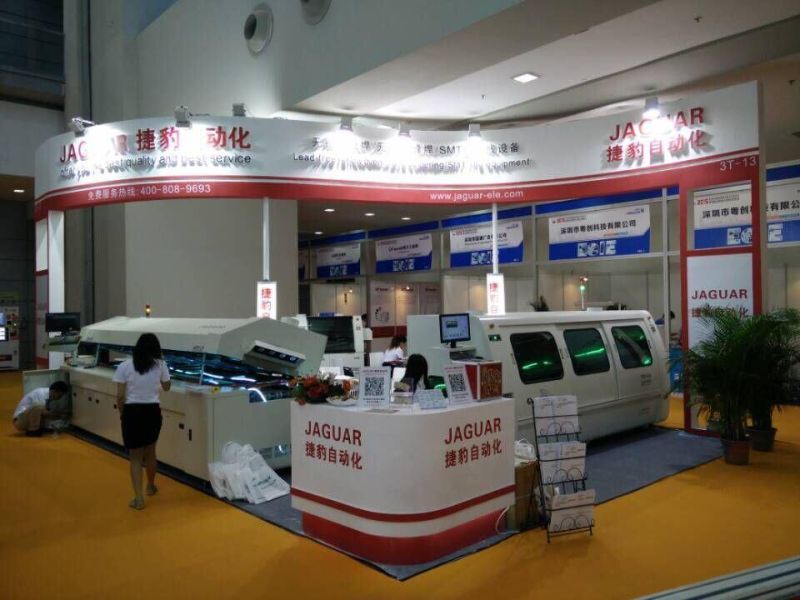

Our exhibition in shenzhen,China :
