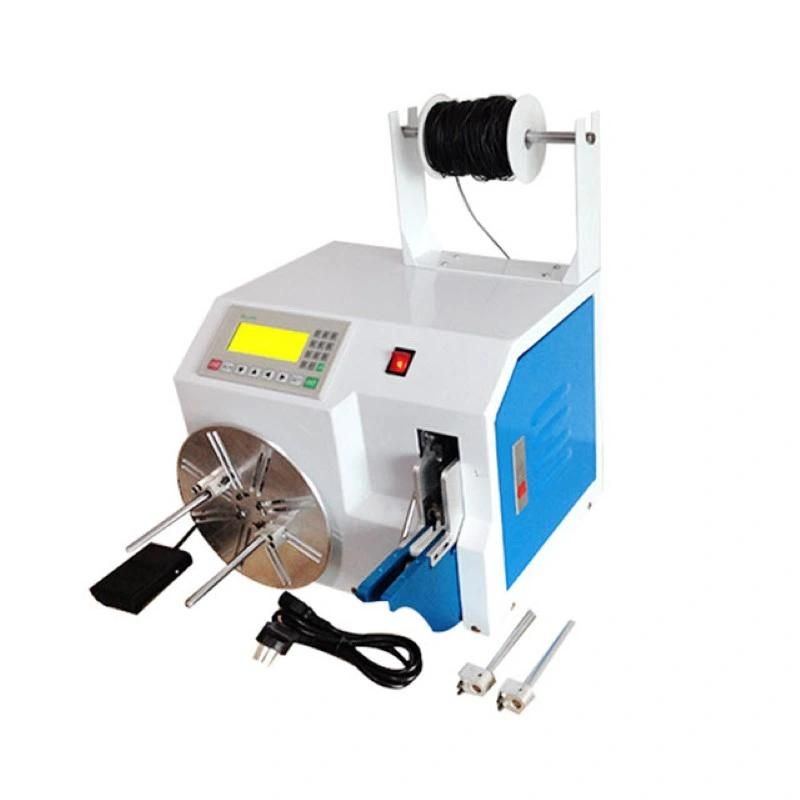

Semi Automatic Wire Twist Tie Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Voltage：220,110VAC; 50,60Hz
  • Warranty：1 Year
  • Model：Wl-2022
  • Power：80W
  • Binding Length：110-200 mm
  • Binding Diameter：Φ20-45mm

Base Info

  • Model NO.：WL-2022
  • Binding Coil Number：Can Be Set, 2-6 Laps Recommended
  • Supply Frequency：50Hz,60Hz
  • Power Voltage：80W
  • Size：320X450X500mm
  • Weight：40kg
  • Transport Package：Carton
  • Specification：cm
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：L=100mm, 2, 000-3, 000PCS,H

Description

110-200 mmBinding diameter

Φ20-45mm

Binding coil number

Can be set, 2-6 laps recommended

RibbonPlastic coated iron core wire, recommended PE materialSupply frequency50HZ/60HZPower voltage

80W

Size320x450x500mmWeight40KGThis semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.

  • This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.

  • PLC program control, LCD text parameter setting, easy to operate

  • Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire

  • This machine can customize the number of coils, the number of ties and the length of the cable tie

  • The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation


Semi Automatic Wire Twist Tie MachineSemi Automatic Wire Twist Tie MachineSemi Automatic Wire Twist Tie Machine
Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Semi Automatic Wire Twist Tie Machine

Related products:

Semi Automatic Wire Twist Tie Machine

Semi Automatic Wire Twist Tie Machine

FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
