• Model NO.：WL-ZW16
• Stripping Length：0.1-100mm
• Cutting Length：1-100000mm
• Max. Stripping Layers：9 Layers
• Weight：24kg
• Power Supply：110V,220V,50Hz
• Transport Package：Wooden Case Package
• Specification：600x185x280 mm
• Trademark：Dimension
• Origin：Kunshan City
• HS Code：8479811000
• Production Capacity：10000

Basic Info.

Model NO. WL-ZW16 Stripping Length 0.1-100mm Cutting Length 1-100000mm Max. Stripping Layers 9 Layers Weight 24kg Power Supply 110V/220V/50Hz Transport Package Wooden Case Package Specification 600x185x280 mm Trademark Dimension Origin Kunshan City HS Code 8479811000 Production Capacity 10000

Product Description

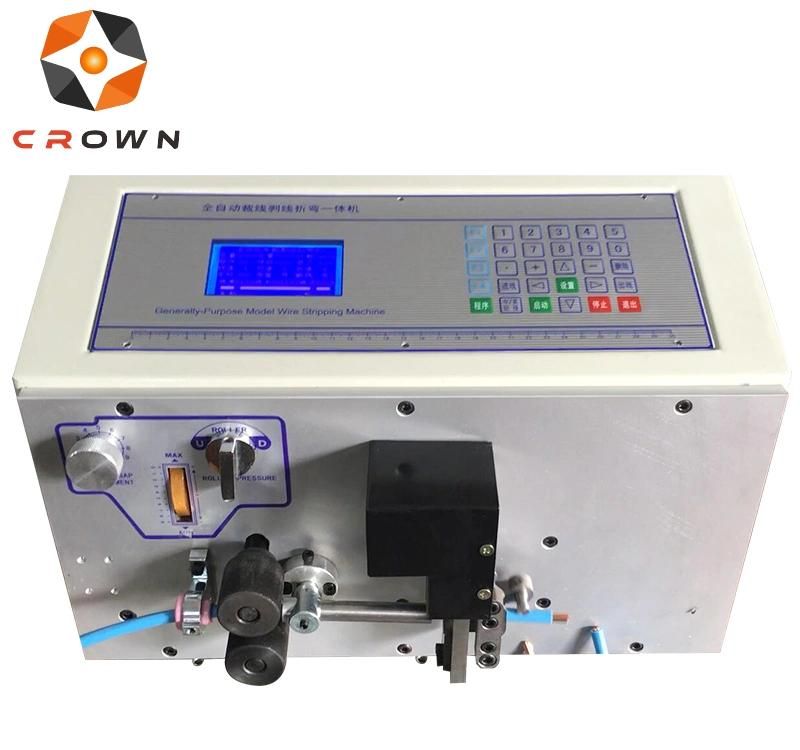

Semi automatic cable wire stripping wire cable stripper machine

Product Description:This series machines is used for cutting, stripping and bending hard wires. Support two wire ends stripping and different shapes bending. WL-ZW6 is used for small wire , with keypad button operation. WL-ZW16/25/35 used for big wire, touch screen operation. Suitable for the jumper wire of the electric control cabinet, bending wire of the meter box, forward and reverse jumper wire of the contactor, table box, watch cabinet and other hard wires that need to be bend and stripped etc. 2. Excellent bending consistency, and eliminate manual operation error 3. Automatic stripping and bending, improve work efficiency 4. Equip with Shangyin linear slide, precision pneumatic pressure roller, more precision, more 1. Support almost arbitrarily adjust angle and bending length complete functions
Features:
1.  Chinese and English switching display
2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.
4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Specification:

Model	WL-ZW16
Type	Wire stripping cutting bending machine
Input Voltage	AC220/ 50HZ
Power	650W
Display method	English/Chinese LCD
Cutting Length	1mm~100mm
Stripping length	Head 0.1-20mm,                     Tail 0.1-20mm
Cutting Tolerances	± (0.001xL)mm
Stripping Length	1-16mm2
Feed roller size	Dia 10mm
Applicable wire	PVC, teflong, glass wire etc
Tool material	hard tungsten steel
Stripping speed	2000-3000pcs/H (L=100mm)
Drive method	two-wheel drive





Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

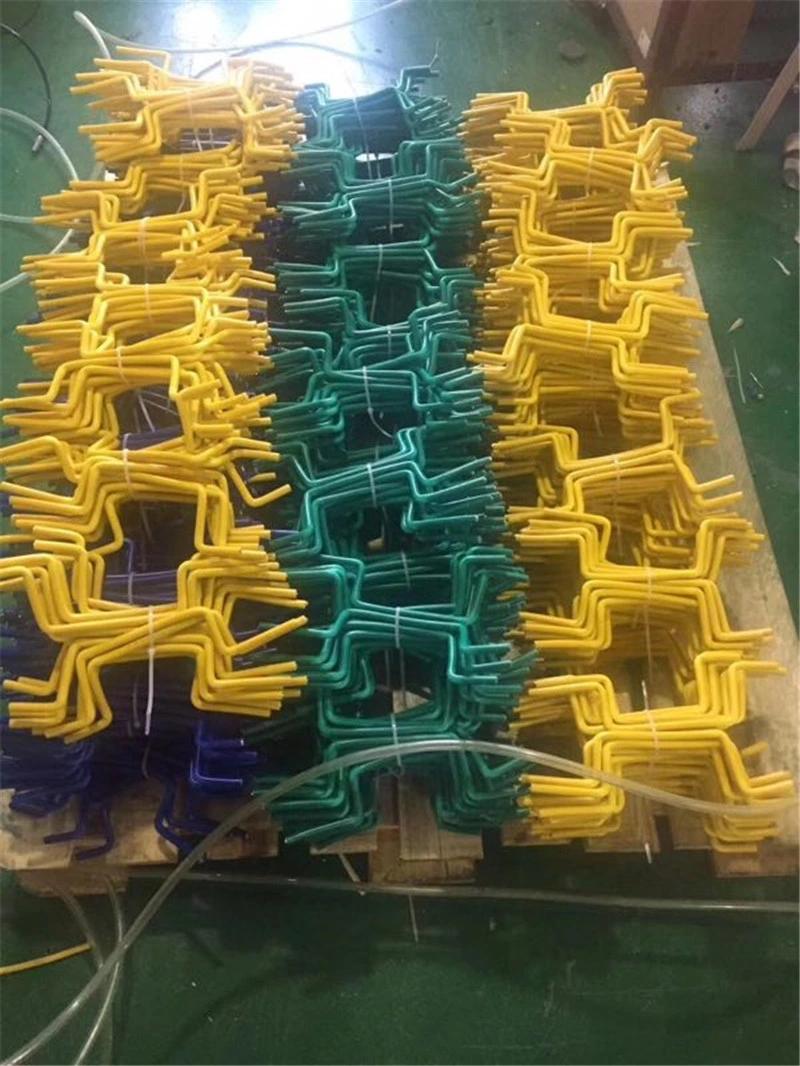

Sample: cut and strip wire automatically

Application
