• Model NO.：T200N
• Temperature Accuracy：Within 2 Degree
• Transport Package：Plywood Case or Other Packing
• Specification：CE
• Trademark：TORCH
• Origin：Beijing, China
• HS Code：8514109000
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. T200N Temperature Accuracy Within 2 Degree Transport Package Plywood Case or Other Packing Specification CE Trademark TORCH Origin Beijing, China HS Code 8514109000 Production Capacity 100 Sets / Month

Product Description

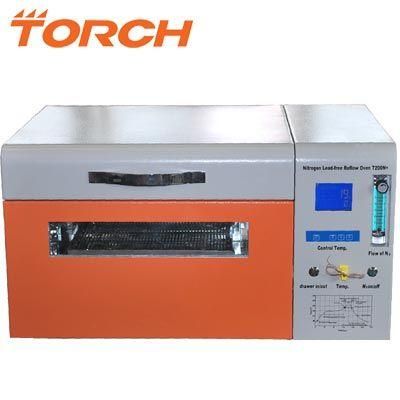

                             SMD Benchtop Lead Free Desktop Reflow Oven T200N




 Remark:RoHS directive has publicized. During the welding process with lead-free, all of the electronManufacturers are thinking one question how to ensure the quality of lead-free welding. It is all
Known that the lead-free welding in quality control is more difficult than lead welding. In the
Generation of lead-free, Torch always try to satisfy the requirement of the trial-manufacture of
Lead-free welding and the manufacture of small batch and high quality for many years.
According to the practical requirement of small and middle sized electron factory, the small batch
Trial- product in research center, T200N is designed and manufactured by Torch technologists on
The basis of technical accumulation for many years. It has many specialties such as high precision,
Multi-function; Practicality; Steady capability; Long life; Energy-saving with high efficiency;
Viewable operation. It is been adapted in the research center, war industry, middle and small-sized
Corporation, small Private Corporation and other electronic production companies.

Technical instruction:
Item Parameter
Temperature control segment
40 segment. The segment can be set in computer according to the
Actual requirement.
Temperature-zone numbers Single-zone and multi-segment
Temperature control system PC control system, SSR non-contact output.
Temperature accuracy ± 2 degree
Warm-up time 3min
Temperature range Room-temperature -360 degree
Heating supply Infrared ray + Hot air convection
Effective working table area 360mm * 230mm (less than A4)
Welding time 3min± 1min
Temperature curve It can be set, adjusted and tested according to the actual requirement.
Cooling system Transverse flow equal cooling
Rated voltage AC single-phase, 220V; 50Hz
Rated power 3.8KW
Mean power 1.6kw
Weight 45kg
Dimension Length*width*height

Model	T200N
Temperature accuracy	± 2 degree
Warm-up time	3min
Temperature range Room-temperature	-360 degree
Welding time	3min± 1min
Weight	45kg
Dimension	820*460*310mm
