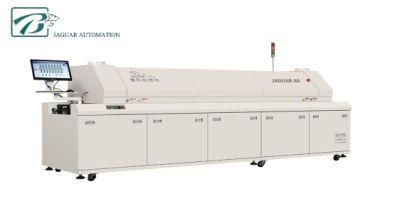

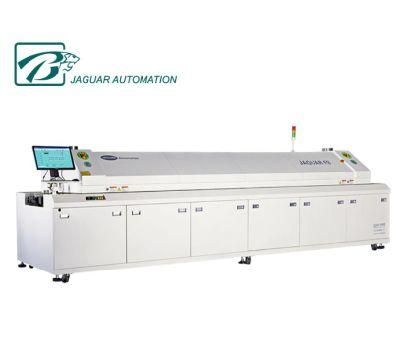

• Model NO.：A8
• Automatic Grade：Automatic
• Installation：Vertical
• PCB Board Width：50-400mm
• Heating Method：Hot Air Heating
• Dimension(L× W× H )(mm)：5500*1500*1600
• Heating Zone：8 Heating Zone(8 Upper, 8 Cover)
• Heating Length：2950mm
• PCB Transportation Height：900±20mm
• Transportation Way：Chain and Net Tape to Transport
• Transportation Speed：0-2000mm,Min
• Chain′s Wide Range：70-500mm
• Net Tape Width：520mm
• Transport Package：Wooden Case or Package as Your Request
• Specification：ISO9000 ISO14000 CE
• Trademark：Torch
• Origin：Beijing, China
• HS Code：1105962268
• Production Capacity：400PCS ,Year

Heating -zones
8 heating-zones,16 heating, 4 cooling
Heating length
2950mm
controlling area
room temperature to 360ºC
Controlling accuracy
±1ºC
difference in temperature
±2ºC
cooling way
compulsion cooling air(can choose water cooling)
PCB size
50-400mm
PCB transportation height
900±20mm
transportation way
Chain and net tape to transport
transportation direction
L-R (can choose R-L)
transportation speed
0-2000mm/min
Chain's wide range
70-500mm
net tape width
520mm
power off protection
Ups for Conveyor & PC
power supply
AC 380V 50Hz
normal/start power
8.5/33kw
mm dimension
5500L*1500W*1600H
net Weight
2200kg
Nitrogen protection
can choose configuration
O2 density
-
cost of Nitrogen
-
