• Model NO.：WL-BSDB2
• Warranty：12 Months
• Automatic Grade：Automatic
• Wire Size：Singe Wire 1-4.5mm2, 2 Wire 1-2.5mm2
• Stripping Length Jacket：Head 0-30, End 0-15 mm
• Cutting Length：1-150000mm
• Productivity：3000 - 8000PCS,Hour
• Drive Mode：2 Wheels Drive
• Weight：28kg
• Power：400W
• Transport Package：Carton
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month
• Package size per unit product：54.00cm * 51.00cm * 40.00cm
• Gross weight per unit product：33.000kg

Basic Info.

Model NO. WL-BSDB2 Warranty 12 Months Automatic Grade Automatic Wire Size Singe Wire 1-4.5mm2, 2 Wire 1-2.5mm2 Stripping Length Jacket Head 0-30, End 0-15 mm Cutting Length 1-150000mm Productivity 3000 - 8000PCS/Hour Drive Mode 2 Wheels Drive Weight 28kg Power 400W Transport Package Carton Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 54.00cm * 51.00cm * 40.00cm Gross weight per unit product 33.000kg

Product Description

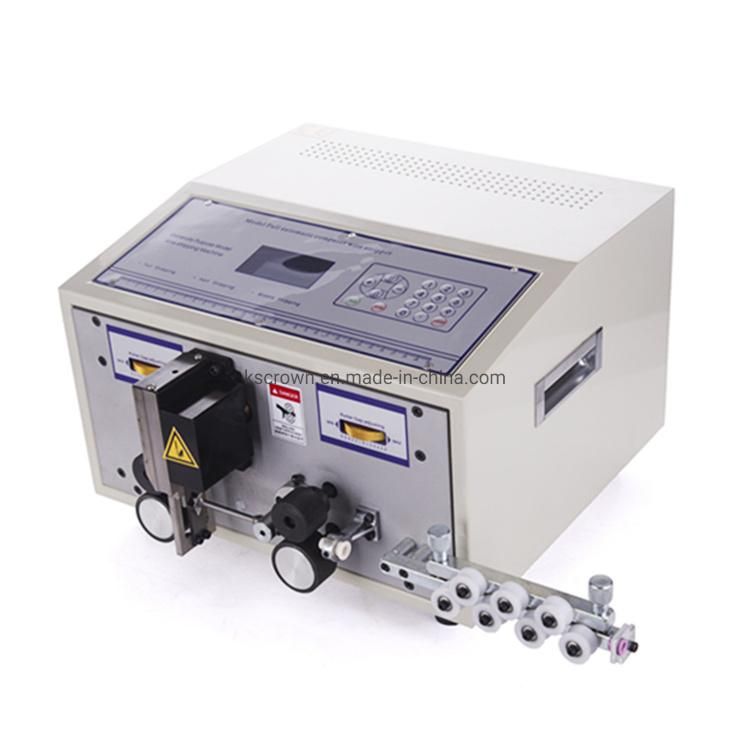

  WL-BSDB2 Automatic computer double wire cutting stripping machine

Feature:
1Mechanical and electrical. Microcomputer for the integration of the fully automatic computer wire stripping machine is a kind of the introduction of Japan, Taiwan and other advanced technology of automatic numerical control equipment.

2.Widely used in electronic industry, automobile industry, electrical appliances, motors, lamps, toys and other kinds of wiring harness processing products. Optimum strip wire line with teflong/PVC/silicone /. Glass fiber, etc.

3.This product USES LCD screen people dialogue mode, has a beautiful appearance, simple operation, convenient maintenance, stable performance, fast speed, high precision characteristics.

4.Wire length can be set freely, according to the customer request to modify, can strip wire of different thickness, also have to row lines, sheathed cable, power cable and casing shear and other functions.



Specifications:


Model	WL-BSDB	WL-BSDB2
Type	Short line double line type	Short and thin double jump catheter
Input Voltage	AC220/ 50HZ	AC220/ 50HZ
Power	200W	200W
Display method	Full Chinese LCD display	English/Chinese LCD
Cutting Length	1mm~9999mm	1~9999 mm
Stripping length	head0-35   tail0-15	head 0-50         tail 0-30
Cutting Tolerances	± (0.002xL)	± (0.002xL)mm
Middle stripping                       cutting section	11	11
Available wire size	single core 0.1~4.5mm2     double wire0.1~2.5mm2	single core0.1~4.5mm2  double wire0.1~2.5mm2
OD of catheter	¢6	¢6
Applicable wire	PVC, Teflon, glass wire etc	PVC, Teflon, glass wire etc
Tool material	hard tungsten steel (optional)	hard tungsten steel (optional)
Stripping speed	5000-10000	4000-10000
Drive method	four-wheel drive	four-wheel drive
Weight	31 kg
Dimension	54*51*40 cm

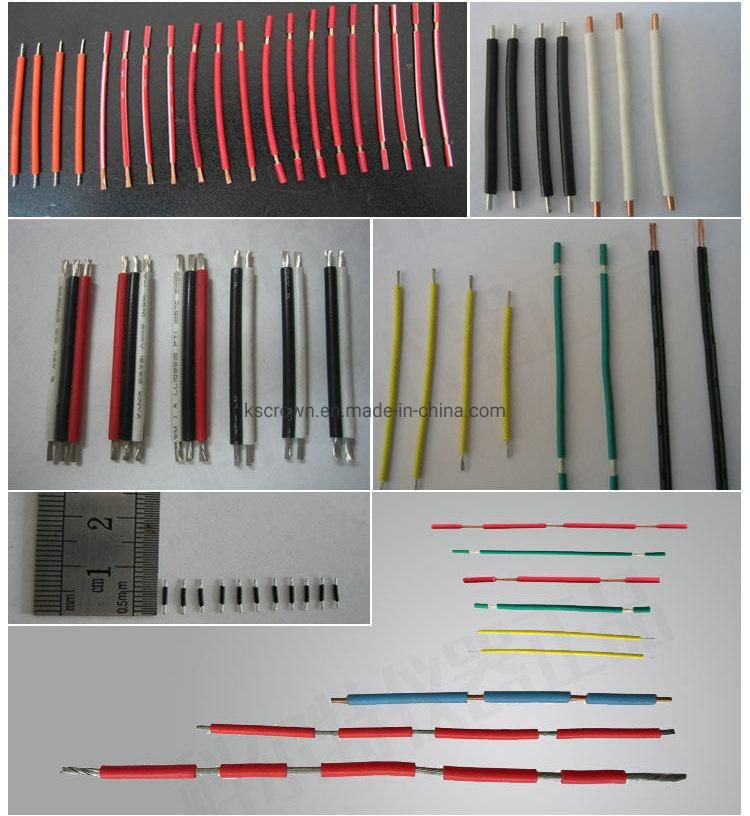

Product Show:
