• Model NO.：WL-P01
• Cutting Lenght：≥60mm (Can Be Customized 50mm Long)
• Split Wire Length：25mm or More
• Productivity：15000PCS,Hour
• Standard P Number：3-20p (20-40p Can Be Customized)
• Weight：180kg
• Transport Package：Wooden Carton
• Specification：700x860x1260mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-P01 Cutting Lenght ≥60mm (Can Be Customized 50mm Long) Split Wire Length 25mm or More Productivity 15000PCS/Hour Standard P Number 3-20p (20-40p Can Be Customized) Weight 180kg Transport Package Wooden Carton Specification 700x860x1260mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

 WL-SP01 high quality fully automatic double head flat cable cutting stripping crimping machine
Flat cable terminal crimping, like communication wire, DuPont and other flat cables. WL-P01 is Introduction floor standing with more quality parts, the WL-DP01 is desktop, small size and good price.
1. Automatic continuous crimping multiple terminals, manual put the wire on right position, automatic
positioning and terminal crimping 2. The terminal is balanced, good consistency, stable quality
3. Stepper motor, accurate crimping
4. High efficiency, can work 24 hours, saving labor
5. Low power consumption: less than 350W

Product Name	Automatic flat cable double-side terminal crimping machine
Model	WL-SP01
Function	Cut off the line, split line, stripping, single-headed,  double headed
Capacity	15000 terminals/hour
Standard P number	3-20P (can be customized 20-40)
Split wire length	25mm or more
Cable length	the shortest 60mm (can be customized 50mm long)
Transfer line	servo linear screw
Pressure line	cylinder
Tool Material	Japan DC53
Detecting device	presence or absence of wire, terminal presence, pressure detection, wire breakage abnormality
Adjustment method	manual, automatic
Supply voltage	AC220V 50HZ
Working pressure	4-6kgf (clean and dry air)
Rated power	2800W
Dimensions	1800*1600*1800mm
Weight	620KG

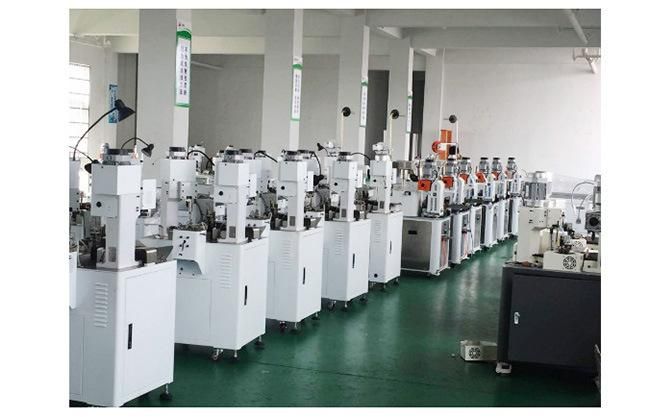

Product Show:

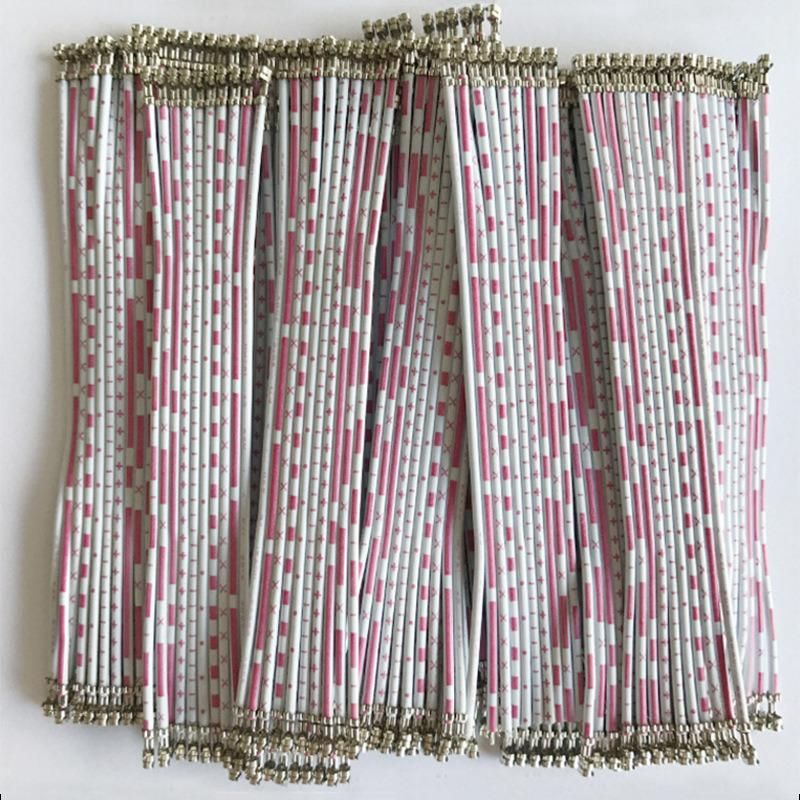

Application Terminal:




Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information

 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
