• Model NO.：WL-S01
• Stripping Length：0.1-15mm on One End
• Cutting Lenght：45-99999mm
• Productivity：4000PCS,Hour
• Air Pressure：0.4-0.6MPa
• Cutting Wire Accuracy：0.01*Lmm (L =Cutting Length )
• Transport Package：Wooden Carton
• Specification：1600*900*750mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-S01 Stripping Length 0.1-15mm on One End Cutting Lenght 45-99999mm Productivity 4000PCS/Hour Air Pressure 0.4-0.6MPa Cutting Wire Accuracy 0.01*Lmm (L =Cutting Length ) Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

Fully automatic double ends electrical cable wire stripping terminal crimping machine(WL-S01)

This seriese of machines can cut, strip, crimping terminals for both end, for single wire, double wire or ribbon cable.

And we can customise for you for different wire cable size.

Just tell us your requirement, ODM or OEM terminal crimping machine is welcome.

Specifications:

Product Name	Automatic double head terminal crimping machine
Model	WL-S01
Power Supply	AC220V/50HZ/60HZ Single Phase
Mechanical function	wire cutting, single end stripping, double- end stripping, single and double head crimping
Capacity	4000 pieces/hour (within length 300mm)
Processing Range	AWG16#/-AWG30#
Cutting wire length	45-99999mm
Cutting wire accuracy	0.001*Lmm (L refers to the length of the cut line)
Stripping length	0.1mm-15mm on one end
Air pressure	0.4-0.6MPa
Detecting device	pressure detection, presence of wires, presence  of terminals Terminals without pressure, stripping detection
Appearance size	160x70x80cm
Machine weight	130KG

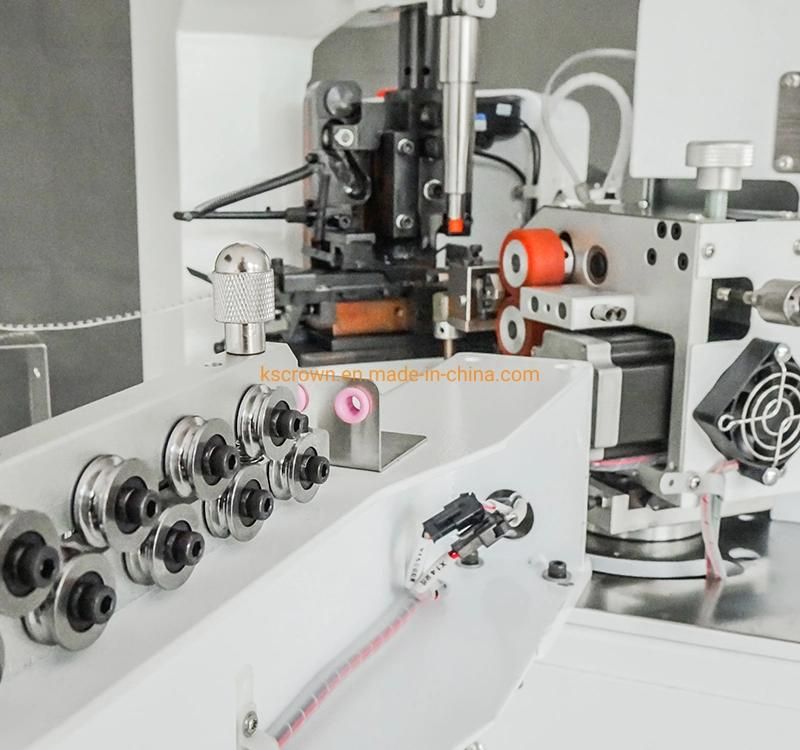

Detail image:

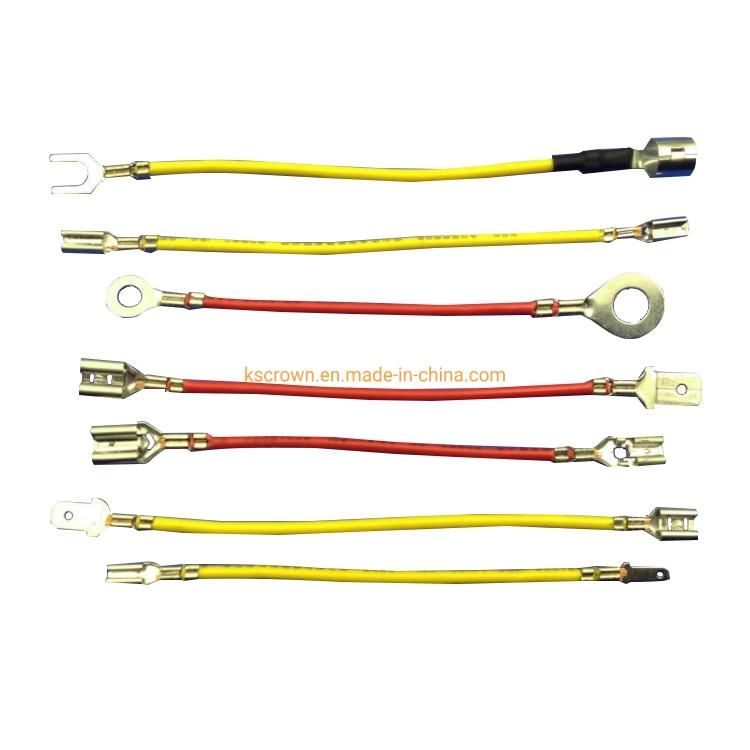

Finished products of this machine below:






Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.
