• Model NO.：Automatic wire cutting stripping machine
• Wire Size：6~30 Sq mm
• Core Stripping Length：Head: 1~190mm, Tail: 1~120mm
• Wire Guide Diameter：16mm
• Display Screen：7′′ Touch Screen
• Productivity：2300PCS,H
• Drive Method：16 Wheels
• Dimension：85*54*63cm
• Weight：115kg
• Transport Package：63*73*71cm
• Specification：130kg
• Trademark：Crown
• Origin：China
• HS Code：8479819000
• Production Capacity：1000set,Month

Basic Info.

Model NO. Automatic wire cutting stripping machine Wire Size 6~30 Sq mm Core Stripping Length Head: 1~190mm, Tail: 1~120mm Wire Guide Diameter 16mm Display Screen 7′′ Touch Screen Productivity 2300PCS/H Drive Method 16 Wheels Dimension 85*54*63cm Weight 115kg Transport Package 63*73*71cm Specification 130kg Trademark Crown Origin China HS Code 8479819000 Production Capacity 1000set/Month

Product Description

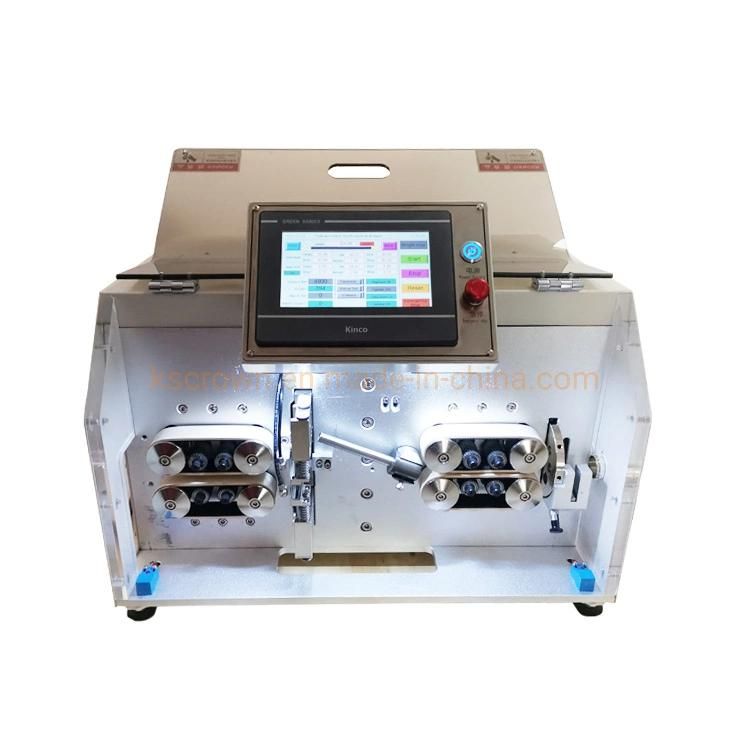

Automatic electric car cable and wire stripping cutting machine(WL-30)

Product Description:

WL-30 is used for automatically cable cutting and stripping different one core wires size, and also
can cut and strip sheath cable jacket. Widely used for processing of new energy motors, charging
stations, electronic control, high-Power Supply power cable wires.

1. Belt feeding wire, no indentation on cable. It's good for Silicone wire, high temperature wire
and signal wire, etc
3. Better cutting length tolerance control, high precision
4. Stable performance, fast production rate
2. Support long stripping length, max stripping length 190mm

Specification:


Model	WL-30
Conductor Cross-Section	6-30mm²
Cutting Length	1-99999mm
Cutting Length Tolerances	≤(0.002*L) mm
Stripping Length	Head:1~190mm; Tail: 1-120mm
Conduit Diameter	Φ16mm
Production Rate	2300pcs/h (based on wire size); Sheath wire 800pcs/h (based on wire size)
Display Screen	7 inch touch screen
Drive Method	16 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable
Tool Material	High quality imported high production rate steel
Weight	115kg
Dimensions	84.5*54*62.5cm

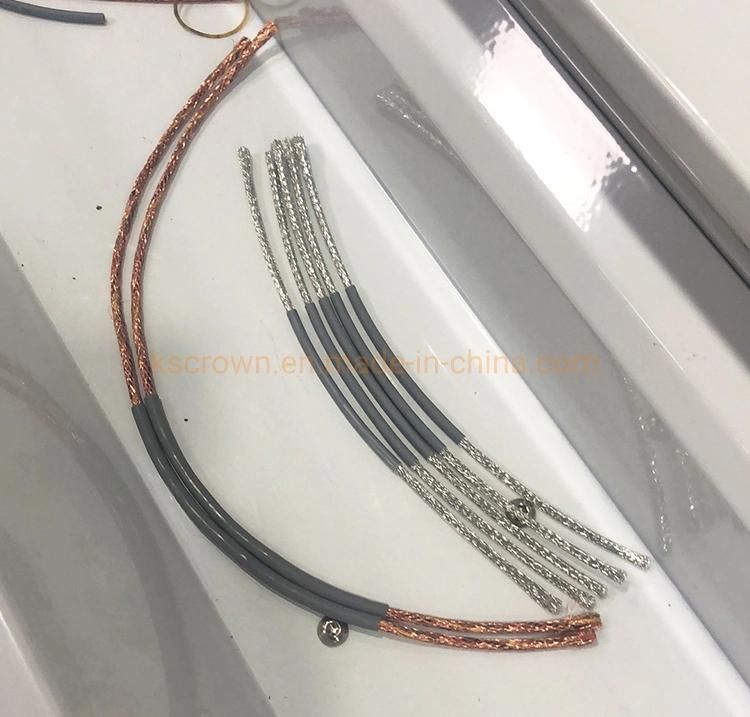

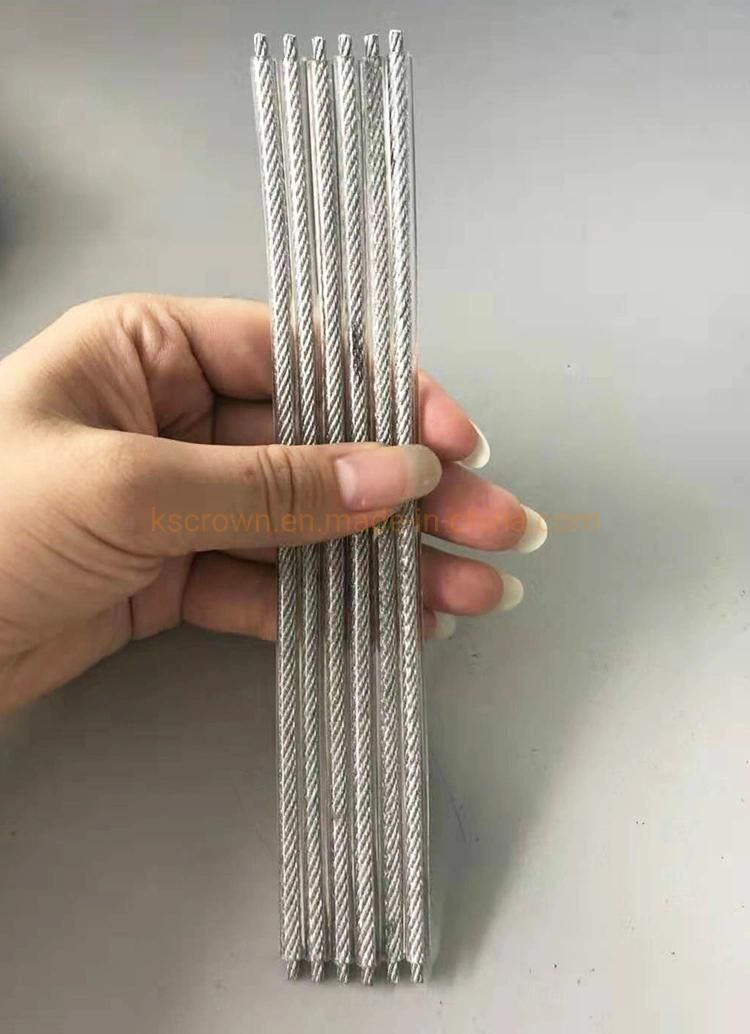

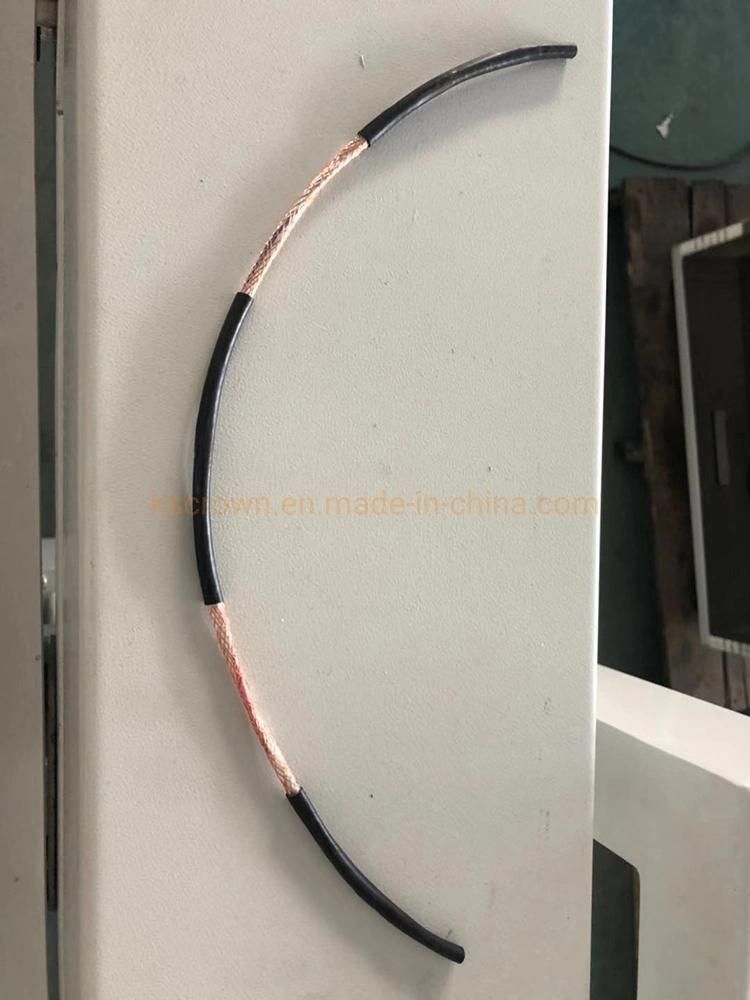

Application



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Company info:






Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
