Qm C Series Meg Socket Circular 12V Push Pull RJ45 M12 Connector Banana Plug Socket Terminal Connector
Shanghai Quanma Electronic Technology Co., Ltd.- After-sales Service：12month
- Precision：Precision
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Semiautomatic
Base Info
- Model NO.：MEG
- Installation：Vertical
- Driven Type：Electric
- Protection Level：IP68
- Numbers of Inserts：>5000
- Vibration：10-20000Hz, 15g
- Temperature Rang：-45c~ +125c
- Mechanical Shock：100g.6ms
- Salt Spray Corrosion Test：96h
- Material：Cooper Alloy
- Series：C Series
- Pins：Multipins
- Voltage：12V
- Humidity：at 60c, The Highest Humidity Can Reach 95%
- Quality：Waterproof
- Pin：Multipin
- Brand：Qm
- Color：White
- Transport Package：Standard Box as Required
- Specification：0C 1C 2C 3C
- Trademark：QM
- Origin：China
- HS Code：8536700000
- Production Capacity：5000000PCE,Year
Description
Product Description

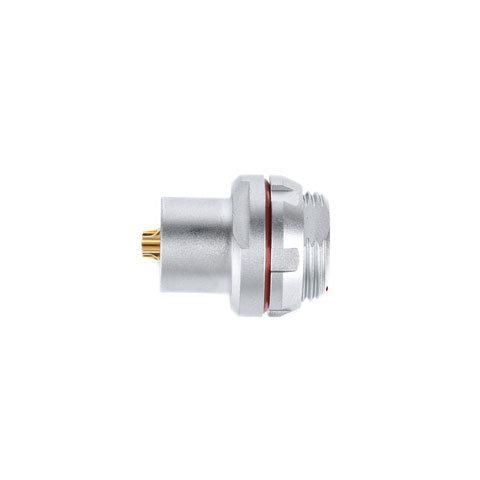

MEG socket
Socket connector waterproof
Multi-lobe positioning to prevent misinsertion
Detailed Photos
Features

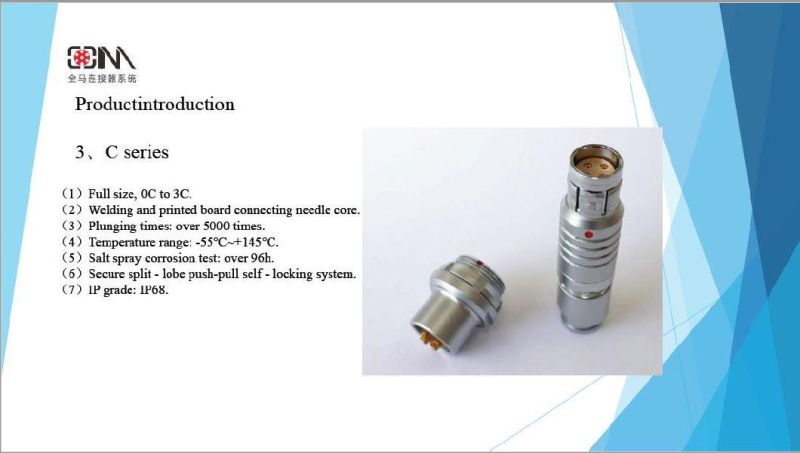

Main features of C series connector
Secure multi-lobe type self-latching system with key push-pull
Connection method: welding and printed board type
Multi-chip and multi-key positioning can be selected inside to prevent mis-insertion
360° shielding provides all-round EMC protection (anti-electromagnetic interference)
2-19 multi-cores can be selected,high-density installation can save space
With sealed (IP66-IP68) and non-sealed structures
The plug and socket mating locking structure is a multi-lobed spring sheet connecting the ring
Specification
Technical characteristics of C series connectors:

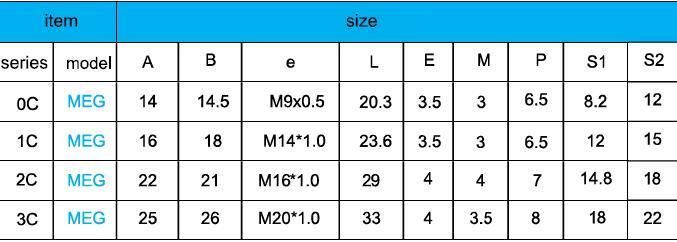

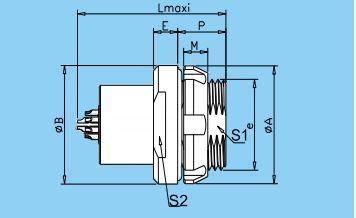

Product ParametersTechnical parameters of MEG socket
Catagory: Waterproof C series
Model: MEG socket
Series :0C, 1C, 2C, 3C
Company Profile
QM connector is a Chinese manufacture of waterproof push pull connector. We aim to provide high quality connectors for our customers. Push pull connector is a small and convenient spare parts for your equipment. It can be used in medical device such as endoscopy, can be used in military-use helmet and garments, base station for telecommunication, automatic machine such as dispensing machine, etc. Our waterproof self-locking connector have different series will fit your requirement in different equipment. We also provide custom made service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfiction is our motivation!
Our factory is located in Shenzhen. The pictures of our factory shows below. We have qualified staff that make sure our customer's order will be delivered in time. Also research and invent new product is always important for a manufacturer. We have a reliable reserach and development team that will make sure our product fit our customer's needs.
FAQ
Q1. Are you a manufacturer or trading company?
QUANMA:We are a professional manufacturer of push pull connectors our sales servicedepartment is in Shanghai and our factory is in Shenzhen
Q2. What's the lead time after place order?
QUANMA: Normally we will deliver your order 7-12 working days after place order.
Q3. Is you connector compatible with other brand connector?
QUANMA:B series is compatible with LEMOS connector.Q4. How many field can be used this kind of connector?QUANMA: QUANMA connector now widely used in the fields of measurement,medical,
audio-video,military-use,navigation,security,aviation,industrial control,automo-tive and power etc.
Q5: How's our order spacked and delivered ?QUANMA:

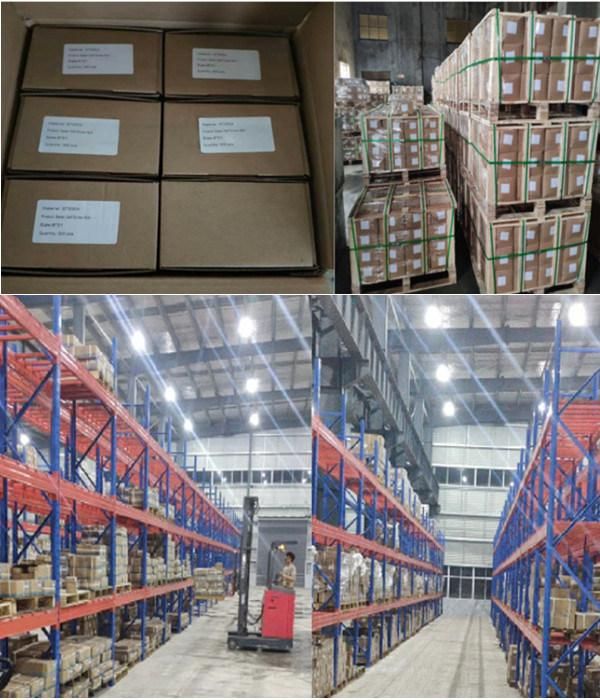

Our connector will pack and ship to you safely. We will pack it as you required. Check our package and warehouse below!
