Planetary Stranding Machine with Tension Control by Hysteresis Brake for Soft Copper Conductor

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Semiautomatic

Base Info

  • Mould Life：>1,000,000 Shots
  • Type：To Back Stranding Machine
  • Material：Metal
  • Colour：as Required
  • Wire Diameter Specification：1.5-4.0mm
  • Cage Speed：80-106 Rpm
  • Stranding Pitch：79-1075 mm
  • Traction Wheel Diameter：2000 mm
  • Pay-off Bobbin in Cage：Pnd 500
  • Central Pay-off Bobbin：Pnd 50
  • Take-up Bobbin：Pn1250-Pn2500
  • Central Height：1000 mm
  • Transport Package：Seaworthy Packing
  • Specification：500 , 1+6+12+18
  • Trademark：BH
  • Origin：Hejian, Hebei, China
  • HS Code：8479400000
  • Production Capacity：15 Sets,Month

Description

Central Height1000 mm1000 mm1000 mm1100 mm

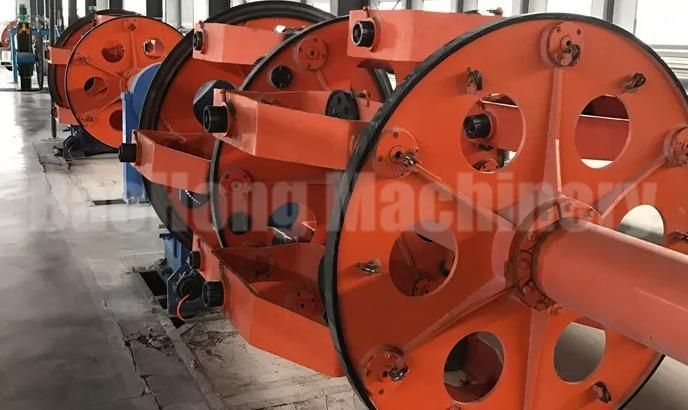

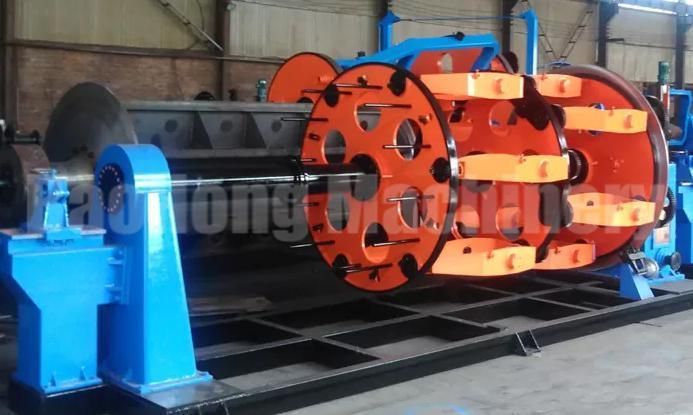

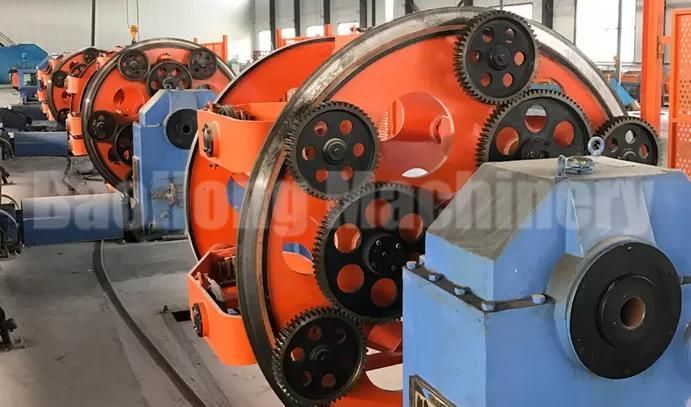

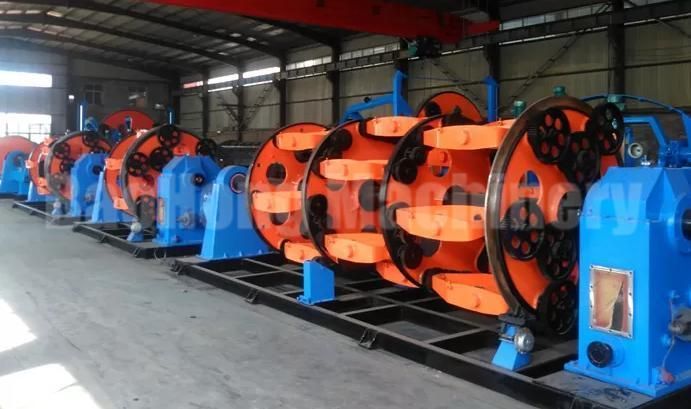

5.Photo
Planetary Stranding Machine with Tension Control by Hysteresis Brake for Soft Copper Conductor
Planetary Stranding Machine with Tension Control by Hysteresis Brake for Soft Copper Conductor
Planetary Stranding Machine with Tension Control by Hysteresis Brake for Soft Copper Conductor
Planetary Stranding Machine with Tension Control by Hysteresis Brake for Soft Copper Conductor
