• Model NO.：630,1+6
• Mould Life：>1,000,000 Shots
• Type：To Back Stranding Machine
• Usage：Skip Stranding
• Material：Copper Wire, Aluminum Wire and Steel Wire
• Maximum Strand Diameter：16
• Max Rotation Speed of The Tube：1200
• Take-up Bobbin：Pn630-Pn1600
• Stranding Pitch：49.3-372.7mm ( 36 Stage )
• Diameter of Draught Wheels：1200
• Main Motor Power：37kw
• Transport Package：Seaworthy Packing
• Specification：630,1+6
• Trademark：BH
• Origin：China
• HS Code：8479400000
• Production Capacity：100

Basic Info.

Model NO. 630/1+6 Mould Life >1,000,000 Shots Type To Back Stranding Machine Usage Skip Stranding Material Copper Wire, Aluminum Wire and Steel Wire Maximum Strand Diameter 16 Max Rotation Speed of The Tube 1200 Take-up Bobbin Pn630-Pn1600 Stranding Pitch 49.3-372.7mm ( 36 Stage ) Diameter of Draught Wheels 1200 Main Motor Power 37kw Transport Package Seaworthy Packing Specification 630/1+6 Trademark BH Origin China HS Code 8479400000 Production Capacity 100

Product Description

Skip Strander Manufacturer, Skip Stranding Machines Supplier & Exporter
 1.ApplicationThe machine is used for stranding copper wire, aluminum wire and steel wire.
 2.Main technical parameter

Name	Unit	Data
Single wire diameter	mm	Copper wire Φ1.5-Φ5.0     Aluminum wire Φ1.8-Φ5.0 Steel wire Φ1.8-Φ4.0
The maximum strand diameter	mm	Φ16
Max rotation speed of the tube	rpm	1200
Stranding pitch	mm	49.3-372.7mm ( 36 stage )
Diameter of draught wheels	mm	Φ1200×Φ1200
Main motor power( AC variable frequency speed regulation )	kw	37
The specifications of the bobbin	/	d1: 630 mm L1: 475 mm d4: 127 mm
Take-up bobbin	/	PN630-PN1600

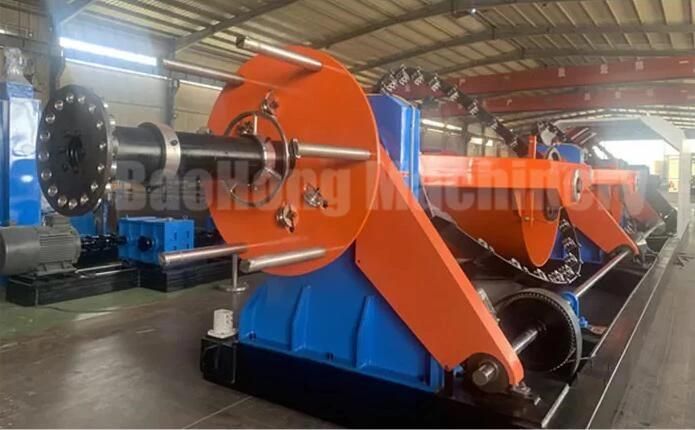

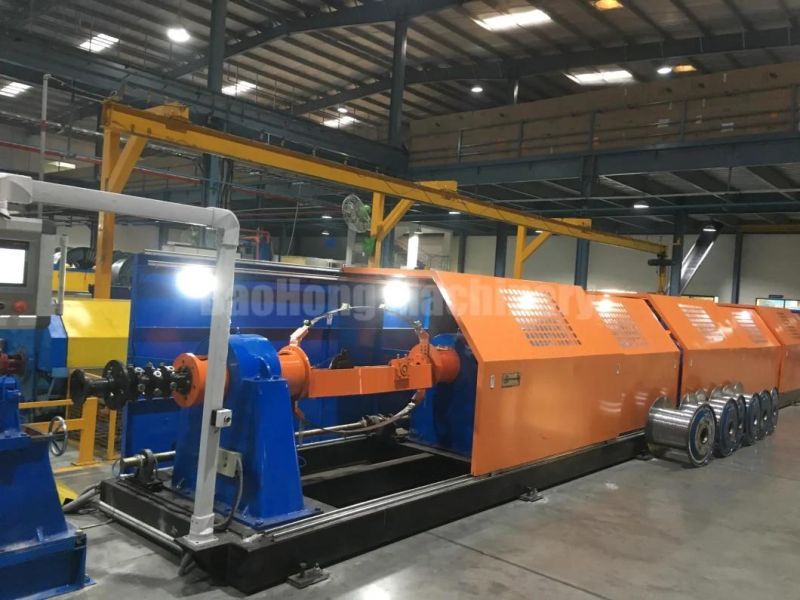

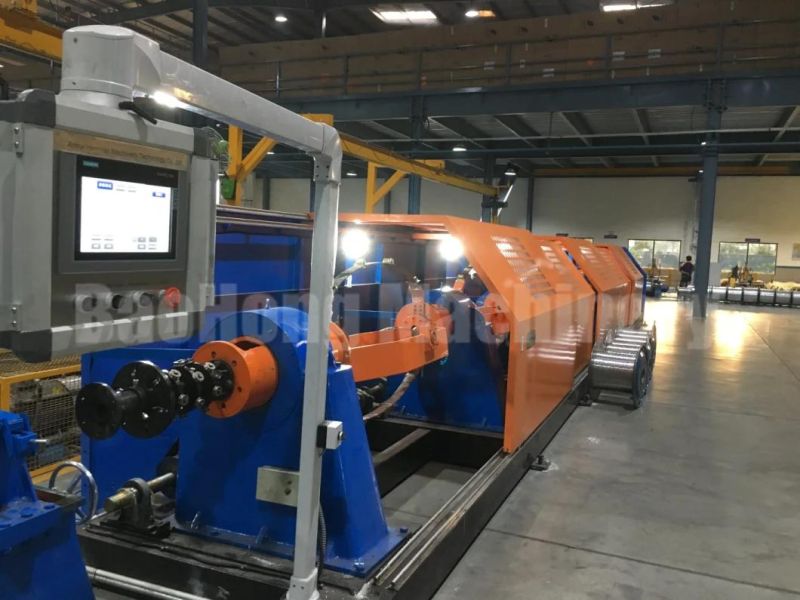

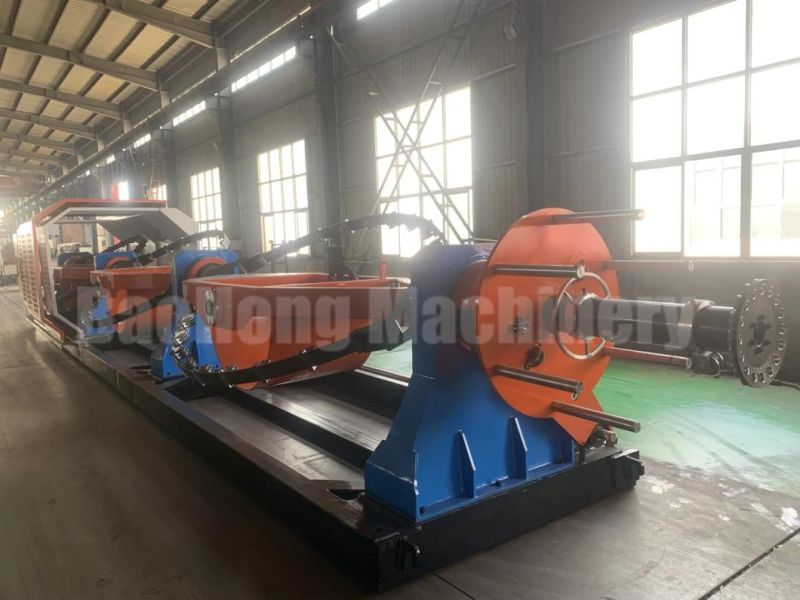

3.Product photos
