• Model NO.：HH-70
• Wire Spec：3-8 mm
• Wire Speed：Max: 300meters,Min
• Extrusion Capacity：180 Kg,H
• Bobbin Size：400-600 mm
• Motor：Siemens
• Inventor：Yaskawa
• Main Power：150 Kw
• Material：PE, PVC
• Voltage：380V or Customized
• L/D of Screw：25:1
• Transport Package：Plastic Packing
• Specification：30*25m
• Trademark：hooha
• Origin：Donguan, China
• HS Code：8479400000
• Production Capacity：3 Set,Month

Basic Info.

Model NO. HH-70 Wire Spec 3-8 mm Wire Speed Max: 300meters/Min Extrusion Capacity 180 Kg/H Bobbin Size 400-600 mm Motor Siemens Inventor Yaskawa Main Power 150 Kw Material PE, PVC Voltage 380V or Customized L/D of Screw 25:1 Transport Package Plastic Packing Specification 30*25m Trademark hooha Origin Donguan, China HS Code 8479400000 Production Capacity 3 Set/Month

Product Description

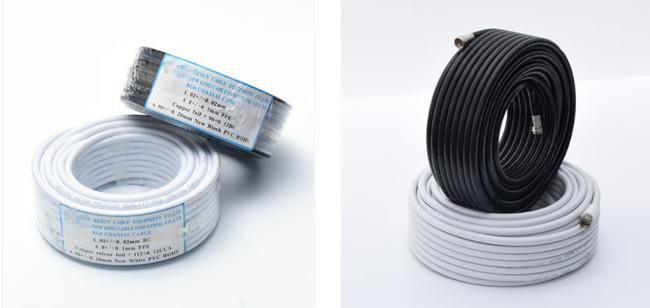

CATV Cable Making Machine

Introduction and Feature of CATV Cable



Introduction:

The full name of CATV is Community Antenna Television. CATV cable is used for broadband transmission. It is different from the baseband transmission used by other Ethernet physical layers. The broadband cabling system can divide the frequency band into different frequency spectrums, and then provide different services through different frequency bands. This kind of technology has been widely used in cable television broadcasting, providing multiple TV channels on the same cable at the same time, since each channel occupies a different frequency band, it can not interfere with each other.




Feature :

CATV is characterized by multiple communication and two-way communication. In the future, CATV systems may use optical fiber to transmit signals instead of coaxial cables. Because the wavelength of light is shorter than that of high-frequency waves, the use of light to transmit signals can increase a lot Transmission capacity, and can achieve the effect of high fax rate. Because of the appearance of optical fiber, the performance of CATV will be further exerted.



Product details

PVC extrusion capacity	130KG/H
PP extrusion capacity	68KG/H
trade or factory	we are factory
Name	wiring of electrical wire and cable extrusion machine
Usage	wiring of electrical wire and cable extrusion machine
HS CODE	84772090
SERVICE IN CABLE MACHINERY	MORE THAN 20 YEARS
we can	control the price,quality,and deivery time
usage	Extruding Insulated Wires



Production Process and Related Machines

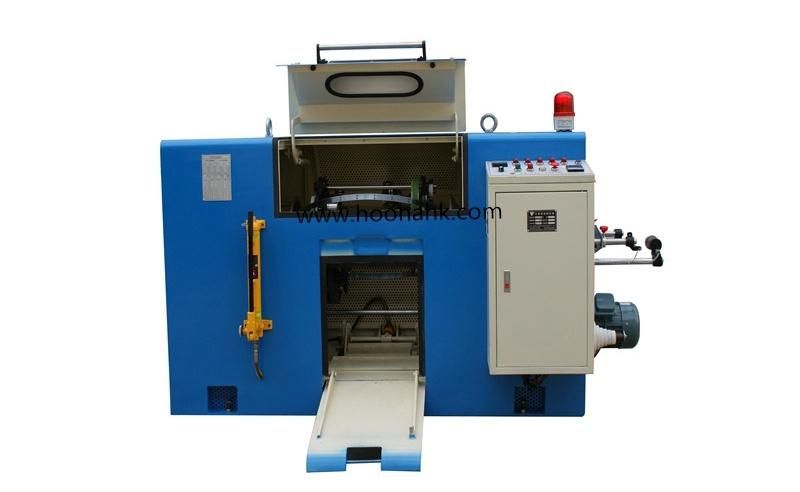

1. Copper Wire stranding (outer diameter 0.81mm)→ HH-B-500 High Speed Bunching Machine

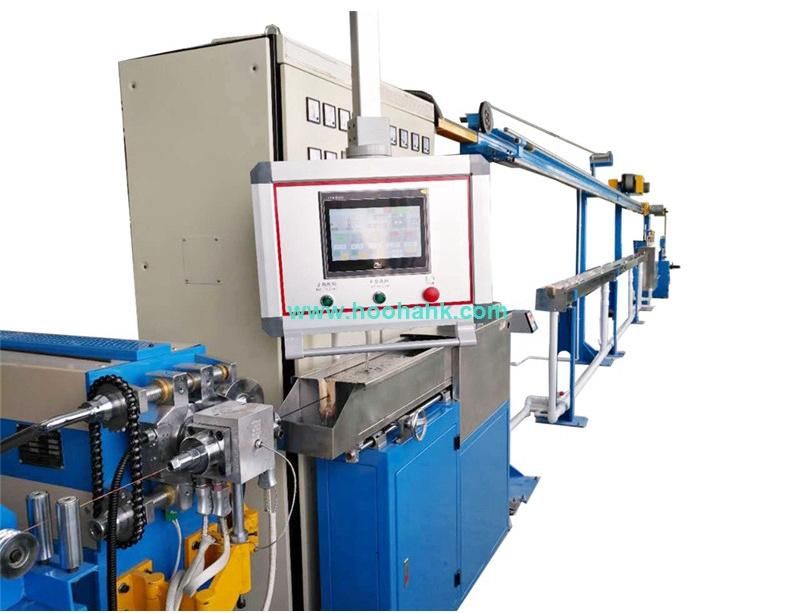

2. Copper Wire PE Insulation→ HH-E-PLC 70 Extrusion Machine

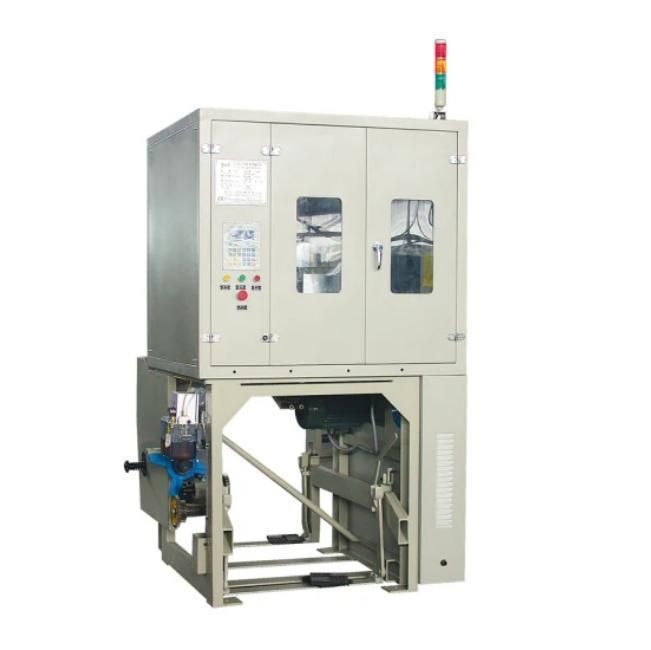

3. Copper Wire Braiding → HH-BR-High Speed 16 Spindle Braiding Machine

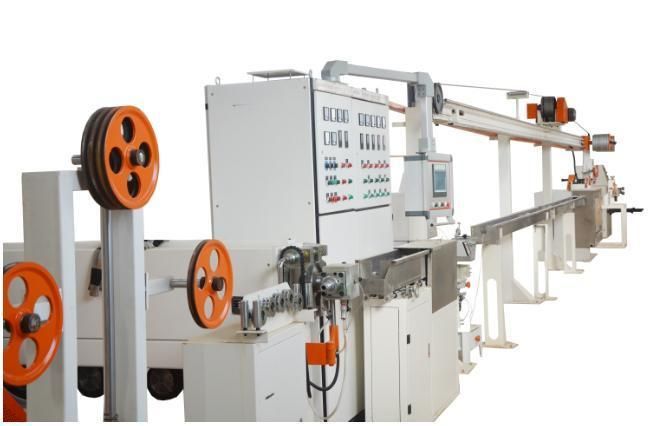

4. PVC Sheath → HH-E- PLC 80 Extrusion Machine

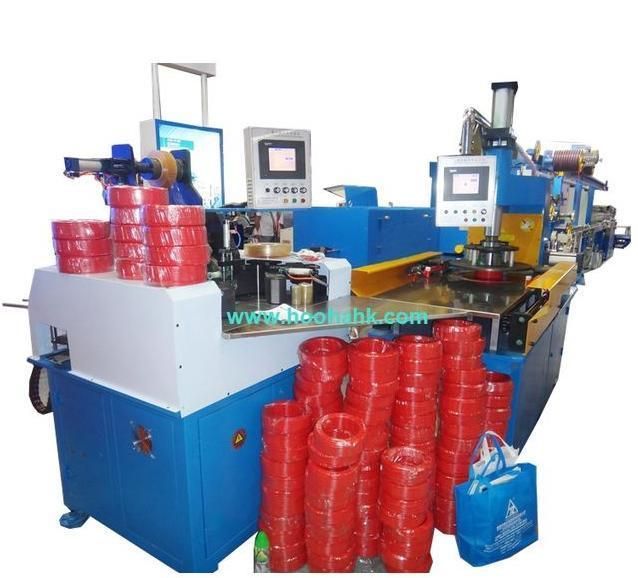

6. Packing→ HH-P-1860 Automatic Coiling and Wrapping Machine

100m/Roll, 1000m/Spool
