• Model NO.：WG-645
• Power Consumption：Min.20W-Max.380W
• Stroke：75mm
• Output：30 Ton (300kn)
• Working Pressure：58 MPa
• Crimp Width：12mm( COM 8mm 10mm)
• Transport Package：Wooden Case
• Specification：940*720*660 mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-645 Power Consumption Min.20W-Max.380W Stroke 75mm Output 30 Ton (300kn) Working Pressure 58 MPa Crimp Width 12mm( COM 8mm 10mm) Transport Package Wooden Case Specification 940*720*660 mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

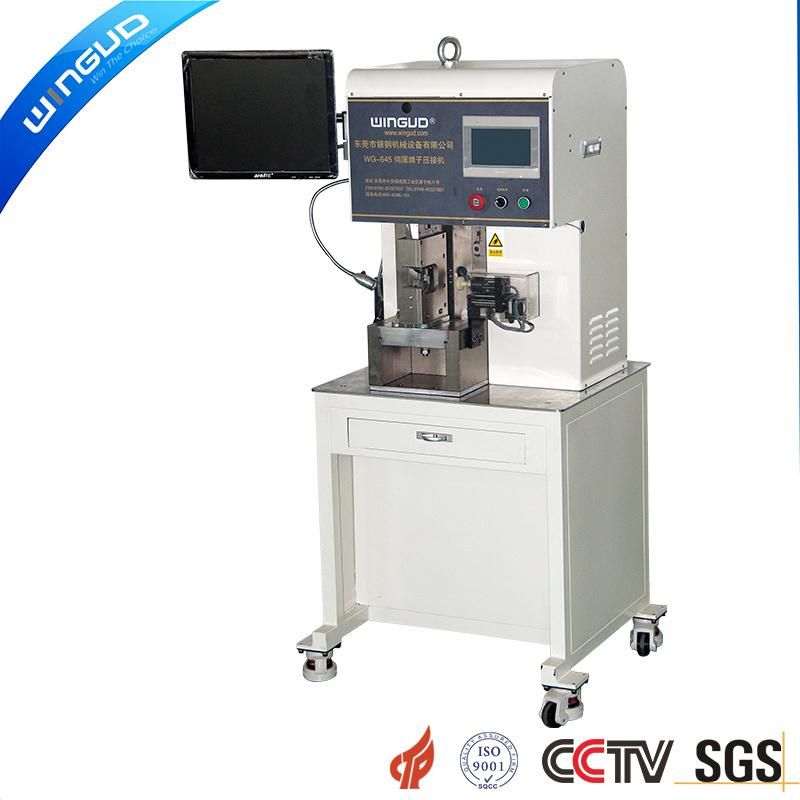

                       WG-645 Servo Wire Terminal Crimping machine
Characteristics
1. The machine is mainly for large square tubular terminals, B-shaped terminals, special-shaped terminal crimp;
2. This machine can be installed six-side crimp mold, 16-200 mm2 closed tubular terminal, 90 degrees elbow terminal crimping without replacing the crimp knife slider, instantly change the size of the knife blade;
3. This machine can also be replaced up and down riveting die, The terminals of different shapes and the size of the wire diameter can be easily riveted as long as the appropriate tool sliders are matched.
4. Suitable for the crimping operation of non-standard terminal or crimp type terminal;
5. Six Square pressure joint is open, suitable for the middle continuation, the large square terminal of the six-side crimp
6. The actual square number of the wire can be adjusted by position;
7. Microcomputer display screen electronic control automatic positioning, optional additional pressure sensor, plus computer scan code gun, can be flexible docking MES system data call.
8. Wide application range, one machine multi-use, Save the factory machine management costs.

In addition to the functions of the above equipment, we are different from the machines sold in the market: First of all, this machine is equipped with servo motor for force, makes our machine module control the precision of the hexagon pressing dimension be more higher. The precision of the module pressing on the opposite sides is guaranteed within 0.2mm. The consistency of the module regular hexagon can be ensured more longer and will not be changed with the extension of the pressing time. Changed the up and down riveting module to crimp the B shape terminal or special terminal, the precision of the crimping height and width can be maintained enduringly.

Technical Parameter:

Model	WG-645-30T	Crimping method	Servo motor
Power supply	AC220V/50/60HZ	Dimension	700×620×1660mm
Stroke	75mm	Power	2.3kw
Weight	550kg	Working pressure	30ton(300kn)
Display method	CNC display	Crimping width	12mm (8mm, 10mm optional)
