• Model NO.：FC-800
• Winding Machine：Working with Winding Machine
• Motive：Motor Drive
• Style：Double Shaft
• Applied Wire Diameter：0.08mm-0.5mm
• Transport Package：Common
• Trademark：FC
• Origin：China
• HS Code：8479811000
• Production Capacity：50sets,Month

Basic Info.

Model NO. FC-800 Winding Machine Working with Winding Machine Motive Motor Drive Style Double Shaft Applied Wire Diameter 0.08mm-0.5mm Transport Package Common Trademark FC Origin China HS Code 8479811000 Production Capacity 50sets/Month

Product Description

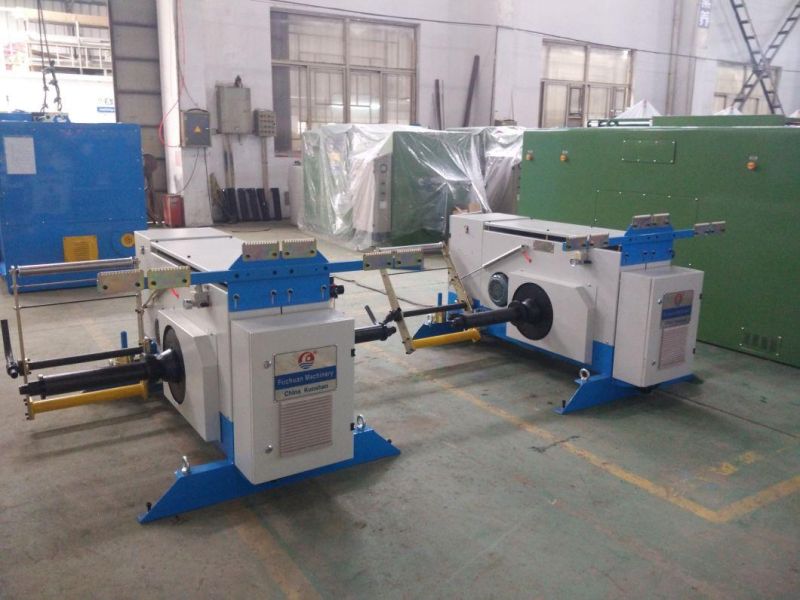

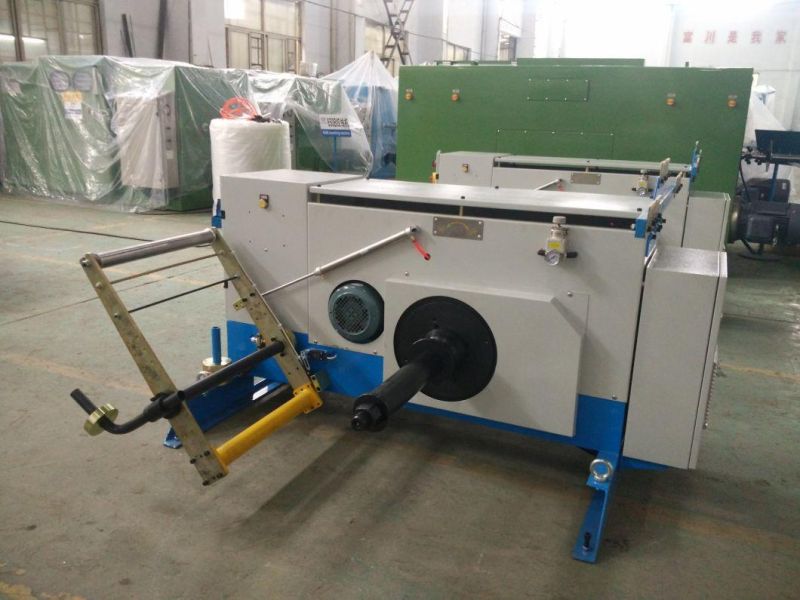

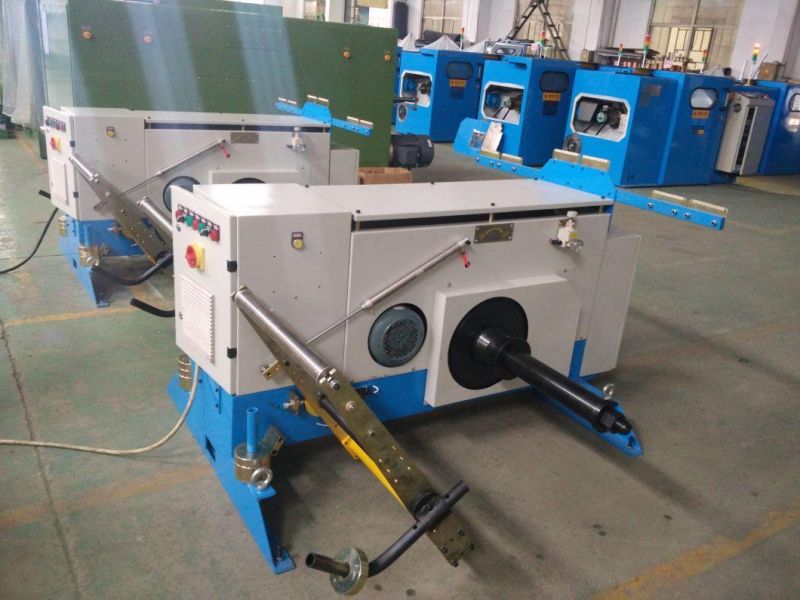

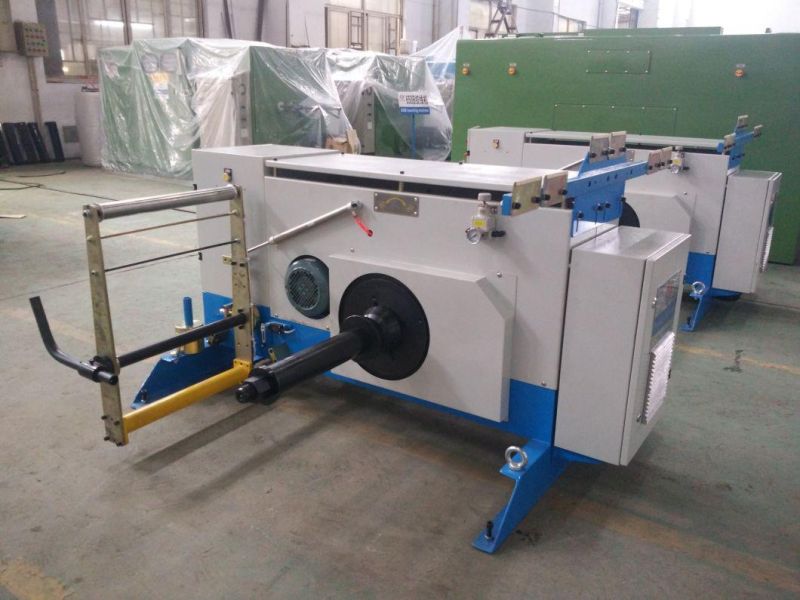

FC-800 Double shaft active Pay-off
Machine performance parameters:
The pay-off stand is constant tension, no reverse the pay-off double disk, can be used for single pay-off equipment pay-off, also can be used for drawing wire harness, and two dish line not interfere with each other, independent, pay-off, easy to operate, can efficiently save covers an area of space.
1. Put/size range: φ 0.08-0.5 mm;
2. The biggest MAX200m/min, the linear;
3. The pay-off plate size: Outside diameter φ 800 * hole φ 125 * 600
4. Tension adjustment: In the swinging rod are installed on cylinder, but through the governing valve adjusting cylinder pressure to change the pay-off tension, also can use a heavy hammer adjust tension;
5. The driver: The wire disc by belt brake 1.5 KW three-phase frequency conversion motor driven by special synchronous belt; The inverter control the motor.
6. Brake: Motor internal disc springs pads action, brakes motor;
7. Adjustable speed: By the sensor signal transmission swinging rod to control the speed of frequency converter, pay-off and host (such as stranding machine) to keep the same;
8. The wire disc loading and unloading: Use the hydraulic forklifts (by advertisers) manual handling the wire disc;
9. Painting: Apple green(or paint according to the customers' require)
10. Weight: 600 kg
