• Model NO.：T200C+
• Heating：Infrared Ray
• Application：SMD Soldering
• Heating Way：Infrared Ray + Hot Air Convection
• Temperature Range：Room -360 C
• Soldering Time：3min ± 1min
• Temperature Accuracy：2c up and Down
• Temperature Control System：PC Control System, SSR Non-Contact Output
• Transport Package：Plywood
• Specification：700(L) *460(W) *310(H)mm
• Trademark：Torch
• Origin：Beijing, China
• HS Code：8514200009
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. T200C+ Heating Infrared Ray Application SMD Soldering Heating Way Infrared Ray + Hot Air Convection Temperature Range Room -360 C Soldering Time 3min ± 1min Temperature Accuracy 2c up and Down Temperature Control System PC Control System, SSR Non-Contact Output Transport Package Plywood Specification 700(L) *460(W) *310(H)mm Trademark Torch Origin Beijing, China HS Code 8514200009 Production Capacity 60 Sets/Month

Product Description

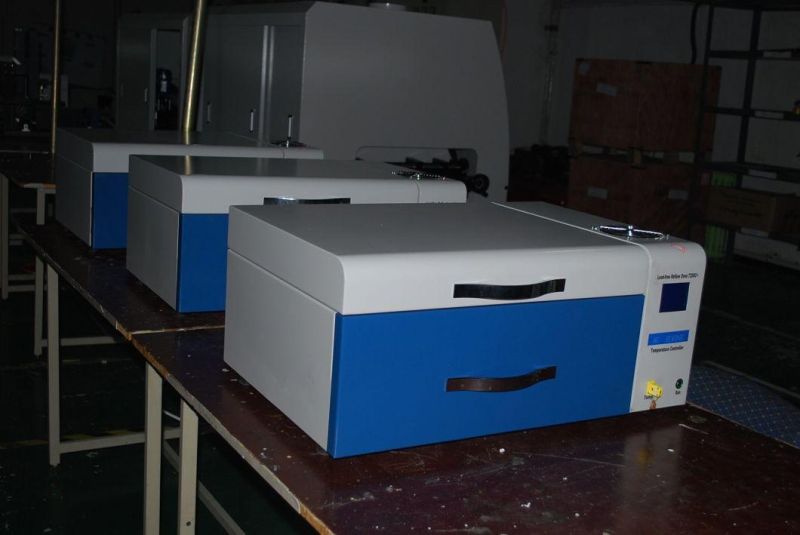

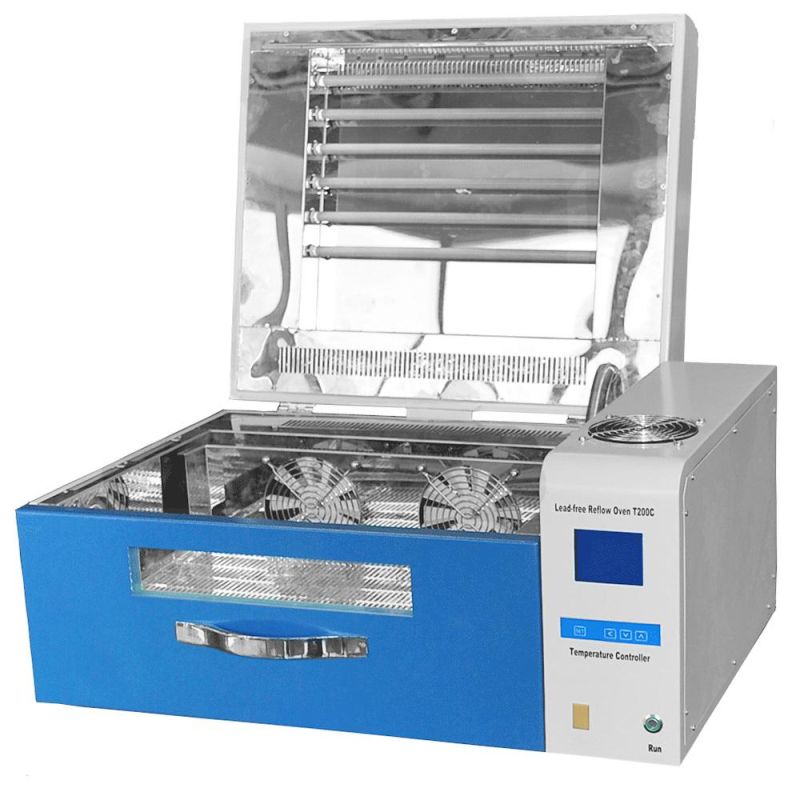

Small Single Zone SMD Reflow Oven PCB Soldering Oven T200C+
T200C+ introduce

T200A is manufactured by Torch in 2001, which is the first desk lead free reflow oven.

As an epoch-making product, T200C break instrument controlling market in 2005. In last 4 years, T200C entered General Electric (U. S. ), Sony (Japan), the NVIDA (United States), Chinese Academy of Sciences of the semiconductor, aerospace electronics, BYD and other well-known enterprises and laboratories.

Torch develops and manufactures new products T200C+ according to requirement and need from domestic and foreign market. T200C+ is suitable to small batch products, it is the good choice for electronics enterprises and research institutes, at the same time it is the complementary equipment for large and medium-sized production line.

T200C+ unique features

Cost-effective Desk Reflow Oven utilizes forced air convection heating technology and PC software interface to make an accurate temperature profile quickly and easily. T200C+ is a fine temperature profile model with temp testing capable of lead-free soldering.

PC interface software control and visional operation

Real-time temperature testing function fills the blank of SMT industry overall world for adjusting the temperature at the real time.

Patented heater installation® For heating evenly

Patented forced air cycling and ventilating technology® For extremely uniform temperature profiling across the board.

Patented oven door actuating device® For no vibration after PCB welding.

Patented auto-open door technology® For higher efficiency on production and the door matched with seal device for keeping temperature.

Active Ventilation function for exhaust gas emission.

Exhaust purifying function for environment-friendly.

Temperature control segment	40 segment, The segment can be set in computer according to the actual requirement.
Temperature-zone numbers	Single-zone and multi-segment
Temperature control system	PC control system ,SSR non-contact output
Temperature accuracy	± 2 ºC
Warm-up time	3min
Temperature range	Room-temperature -360ºC
Heating supply	Infrared ray + Hot air convection
Effective working table area	360mm * 230mm (more than A4)
Welding time	3min ± 1min
Temperature curve	It can be set ,adjusted and tested according to the actual requirement .
Cooling system	Transverse flow equal cooling
Rated voltage	AC single-phase, 220V; 50Hz
Rated power	3.8KW
Mean power	1.6kw
Weight	39 kg
Dimension	700(L) *460(W) *310(H)mm
