• Model NO.：TP210+
• Certification：CCC, PSE, UL, RoHS, ISO, CE
• Warranty：24 Months
• Automatic Grade：Semiautomatic
• Type：Ultra High-speed Chip Mounter
• Max PCB Size：300x200mm
• Typical Pick&Place Speed：1500-2000cph
• Max Pick&Place Accuracy：± 0.014mm
• Repeat Accuracy：± 0.07mm
• Position：Laser Machinery Position
• Component Available：Resistence and Capacitence (Above 0603) and Soic(B
• Dimension：980× 1000× 590mm
• Weight：95kg
• Transport Package：Wooden Case or Package as Your Request
• Specification：980×1000×590mm
• Trademark：Torch
• Origin：Beijing
• HS Code：8479896200
• Production Capacity：200 Sets, Year
• Package size per unit product：230.00cm * 140.00cm * 190.00cm
• Gross weight per unit product：200.000kg

Basic Info.

Model NO. TP210+ Certification CCC, PSE, UL, RoHS, ISO, CE Warranty 24 Months Automatic Grade Semiautomatic Type Ultra High-speed Chip Mounter Max PCB Size 300x200mm Typical Pick&Place Speed 1500-2000cph Max Pick&Place Accuracy ± 0.014mm Repeat Accuracy ± 0.07mm Position Laser Machinery Position Component Available Resistence and Capacitence (Above 0603) and Soic(B Dimension 980× 1000× 590mm Weight 95kg Transport Package Wooden Case or Package as Your Request Specification 980×1000×590mm Trademark Torch Origin Beijing HS Code 8479896200 Production Capacity 200 Sets/ Year

Packaging & Delivery

Package size per unit product 230.00cm * 140.00cm * 190.00cm Gross weight per unit product 200.000kg

Product Description

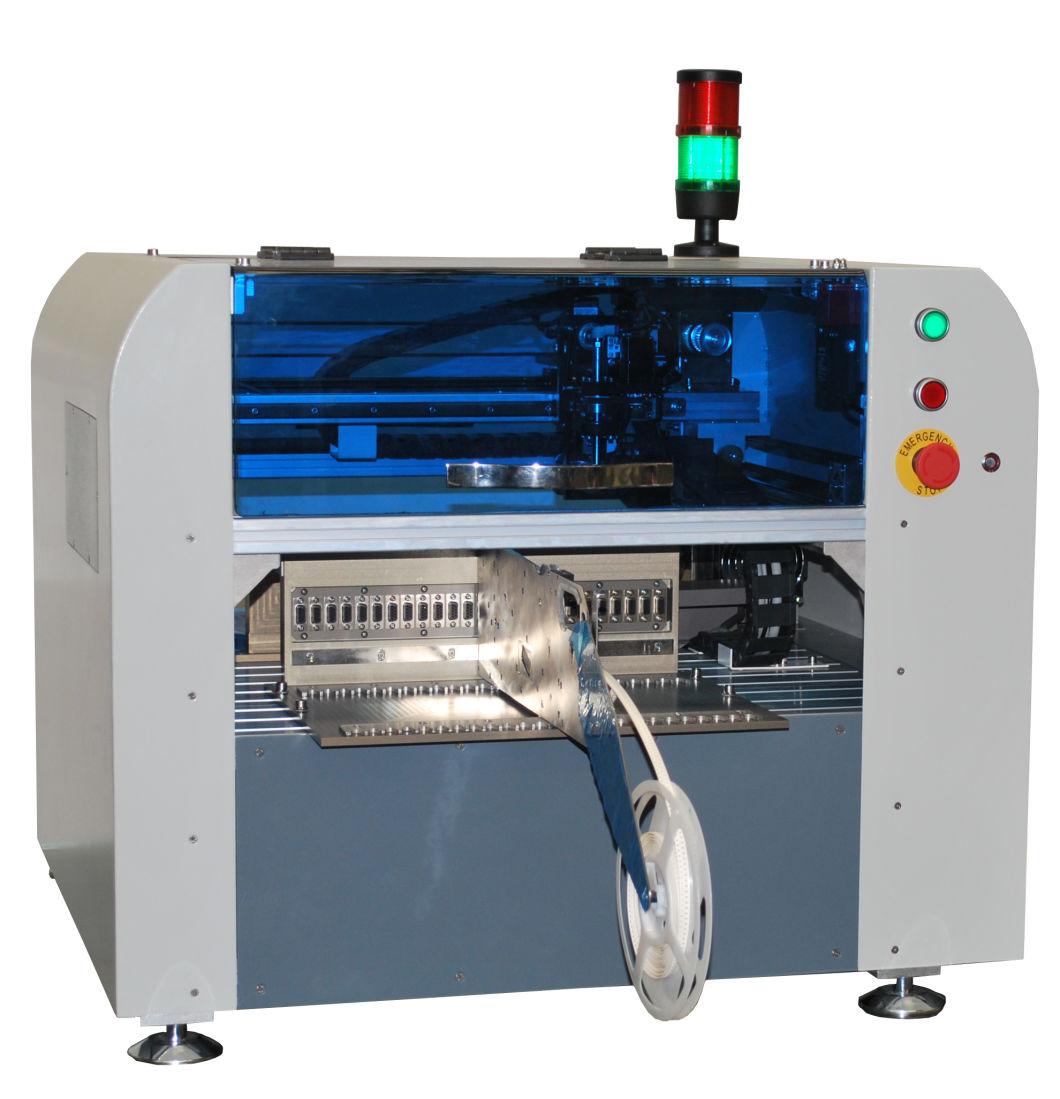

Automatic pick and place machine TP 210+
Automatic pick and place machine TP 210+ is a mini-type desktop pick n place machine. It is a cost and effective machine.
TP210+ can mount SMD 0402, simple IC chips below 20mm columnar diode, triode, SOT, SOP, IC chips ect
TP210+ equips 46 PCS of 8 feeders ( electric feeder 8mm, 12mm, 16mm, 24mm can choose), Z axis can route freely. It can meet mounting require of various of angle component.

Features:
1. High precision guiderail to improve mounting accuracy
2. Video programme, you can easy to finish the program and position
3. CAD data can be imported as moutning data, realize the program automatically without component coordinate input. Program is simple, suitable for beginner.
4. Different size component, nozzle can change by manual
5. High-performance automatic mounter, suitable for mass production of middle or small size factory and individual use. Especially for medium mass production of small type electronic factory.
6. Industrial computer cooperating with professional software control, easy to operate and use.
7. Stable and convinent for programme and mounting of multi panel boards
8. Show all coordinate of panel board on software, and micro-adjustable for these coordinate to realize high precision mounting.
9. Set the space among the panel board on software, and show all component coordinates according to space, and you can choose the panel board that needn't to mount.
10. If the board has quality problem, whole off-set function to adjust the placing coordinate.
11. Position limit testing on XYZ axis when moving.


Standard Configuration:
1. Computer 1 suit
2. Head 1 suit
3. Nozzle 2
4. Pump( built-in) 1

Configuration (optional)
1. 8mm, 12mm, 16mm and 24mm automatic feeder
2. Nozzle
3. Industrial pump
4. UPS continuously power supply

Type	TP210+  V4.0
Max PCB size	300x300mm
max moving range	390× 360mm
max moving range of Z axes	12mm
Typical pick& place  speed	3000cph
Max pick& place speed	3700cph
max pick& place accuracy	± 0.1mm
Positioning	Visional Position+ Machinery Position
Component Available	0402, 0603, 0805, 1206 etc and SOP, SOIC (size under 15*15mm, PIN foot less than 24)
Program way	Software program input/ Video study/keyboard input
Driving mode	use industrial Synchronous belt to drive
Automatic Feeder	8mm, 12mm, 16mm, 24mm feeder can choose
Feeder Num	Can set 46 pcs of 8mm feeder
Operating system	WINDOWS XP
compressed air	80psi(0.5Mpa)
Power supply	220V, 50Hz
Weight	120kg
Dimension	1025*1010*700mm
