• Model NO.：TB780D
• Specification：CE ISO
• Trademark：Torch
• Origin：Beijing
• HS Code：1105962268
• Production Capacity：30PCS ,Month

Basic Info.

Model NO. TB780D Specification CE ISO Trademark Torch Origin Beijing HS Code 1105962268 Production Capacity 30PCS /Month

Product Description

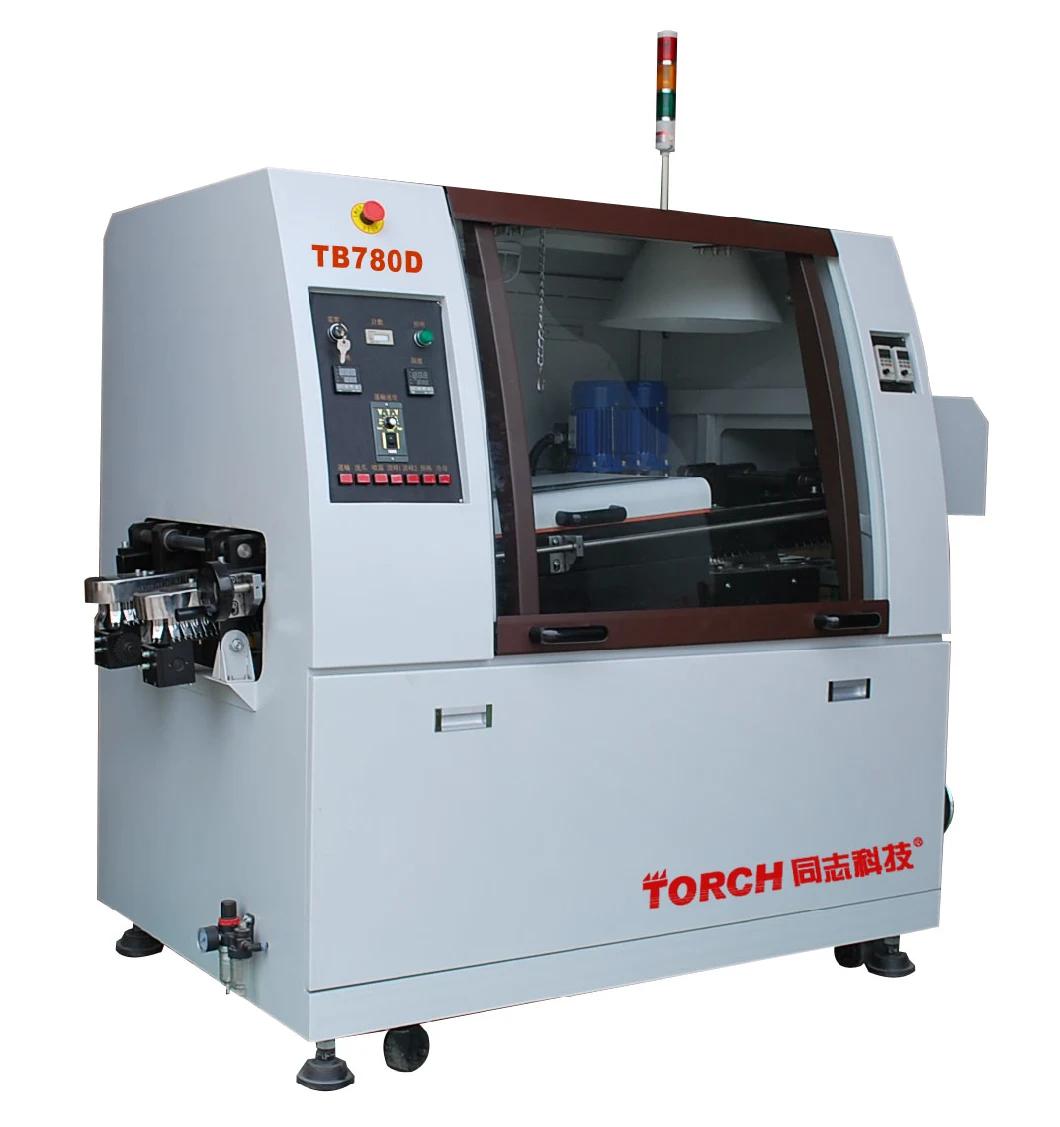

Automatic PCB SMT Welding Wave Soldering Machine TB780D





Features and function:

IFlux spray system
A function of flux spray device
1 nozzle: Import nozzle, better spray
2 air system: AIRTAC electromagnetism valve, anti-corrosive pipe
3 moving nozzle system: Air cylinder driven, spray speed and spray width can be adjusted by handle.
4 filtration flux system: Collecting device is made of multi collecting lay, it is convenient to clean.
5 flux controlling: Anti-corrosive controlling flux and display flux.
B function of flux foam device
with foam function, inner foam pump, it don't need outer air supply, it is convenient to spray flux.
1 preheating temperature range: Room temperature_260 degree
2 controlling way: with PID controlling to make welding process.
3 Heat: Infrared heating, temperature uniformity, rapid speed, PID supply heat.
4 Preheating security: Surface temperature is lower than fire point of flux.
5 Preheat: It can meet preheating need of batch PCB welding, uniformity temperature, small temperature differences of PCB.
II Welding system features:
1 Material: 316 stainless steel
2 Capacity: 100kg double wave crest capacity
3 Height range of wave crest: 0_8mm adjustment and keep wave crest balance.
4 Power consumption (heater): 6kw, uniformity heat, long life. It will take 1 hour to melt tin. This can save 6kw during melting tin and save 3kw during constant temperature.
5 Unique nozzle: Double wave crest design, with unique flat wave which is stable and reduce SMD leaking solder.
6 Heat controlling system: PID control, accuracy is +/-2
7 Moving tin pot: In and out can be finished by hand.
8 Motor of wave crest: Import motor, running stable.
9 Tin pipe: Screw thread stem

III Cooling system
1 Cooling motor: Unique cooling design, it can achieve import device effect.

IV Transmission system
1 chain: Stainless steel chain, anti-corrosive, ametabolic.
2 rail system: Special strong aluminum
3 speed: 0_1800mm/min
4 accuracy: Motor is from Taiwan, it is easy to adjust and maintain

V Controlling system
1 buttons on the panel: Manual/ automatic control, speed can be set, temperature can be display.
2 protect short circuit: with short circuit protection, with Sanling air switch protection in main power and tin pot of preheating zone, with fuse power in controlling system.
3 urgent stop protection: There are 2 urgent stop protection in the machine, please cut off power in urgent condition.
4 whole machine controlling: Relay controlling.
5 transmission speed: Taiwan motor makes sure stable speed.
6 wave crest: Taida transducer makes wave crest flatter.
7 over-current protection: Over-current protection with transducer, it will cut off power when current is over to make motor safe.
8 modularization wiring device: There are main wiring modularization and controlling modular

It is 2100mm when the machine include loading and cooling system.

	Specification	TB780D(double wave crest)
1	Solder type	Lead /lead free/ common solder
2	Max PCB	50-200mm
3	Components height	Above ≤130mm under ≤8mm
4	Capacity	100KG
5	Preheating length	600mm
6	Temperature accuracy	±2
7	Spray way	Foam
8	Temperature range	Room - 300ºC
9	Wave height	0---8mm, keep balance wave crest
10	Heating controlling	PID
11	Speed	0-1800mm/min
12	Start power/normal power	12KW/6KW
13	Preheating temperature	Room-260ºC
15	Width adjust	Manual adjusting
16	Transmit angle	3---8
17	Direction	Right--left
18	Controlling accuracy	Taiwan motor
19	Weight	650KG
20	Dimension L x W x H(mm)	1400*1000*1500MM It is 2100mm when the machine include loading and cooling system
