• Model NO.：SR-303Q
• Tape Roll Specification：Inner D38mm, Outer <D140mm, Customized
• Tape Width：5-35mm
• Tape Type：PVC , Velvet , Acetate Tape (Without Release Paper
• The Highest Winding Speed：12r , S
• Operation Mode：Touch Screen, Foot Switch
• Transport Package：Carton
• Specification：56*50*35cm
• Trademark：Sinrad
• Origin：China
• HS Code：8479899990
• Production Capacity：100 Sets,Month

Specification:

Name

Automatic tape winding machine

Model

SR-303Q

Working mode

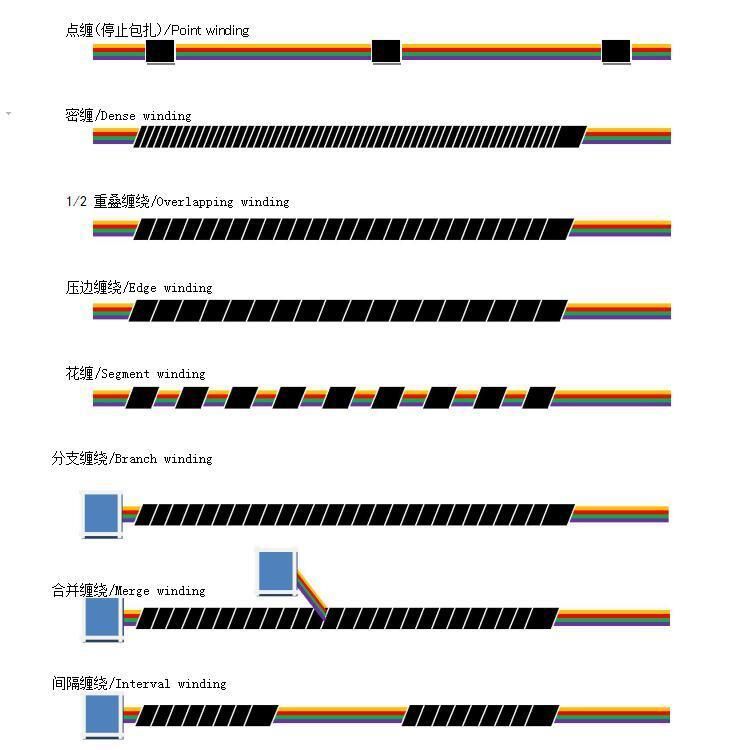

Full winding, point winding, multi-section winding, etc.

Air supply

0.4MPa

Winding length

Unlimited

Winding wires diameter

3MM-40MM

Tape roll specification

Inner D38MM, outer <D140MM, width 5-35MM, customized

Tape type

PVC / velvet / acetate tape (without release paper), etc.

The highest winding speed

12R / S

Operation mode

Touch screen, foot switch

 Features:

1.Compatible with different types of tape without insulation paper (such as duct tape, PVC tape, etc.)

2.Keep flat and wrinkle-free, and ensure that the duct tape is overlapped with one half of the previous lap.

3.Can switch different forms of wrapping mode, wrap a certain part of the line, the spiral wrapping of different position of the line.

4.Can realize winding number and speed setting, output display function.

5.Blade can be replaced quickly.

6.It is suitable for wrapping the tape after crimping two contacts of wires together, adjust the length of tape with digital, convenient, fast and accurate.

7.It has stable quality and high efficiency, which can reduce the operation strength.

8.With feeding wheel driver, make the tape uniform, save effort.

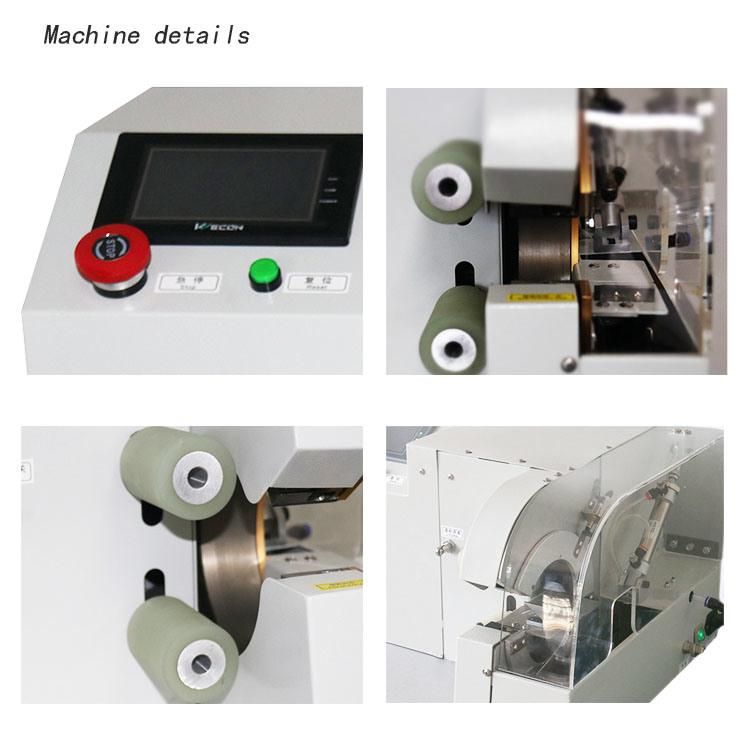

Pictures:

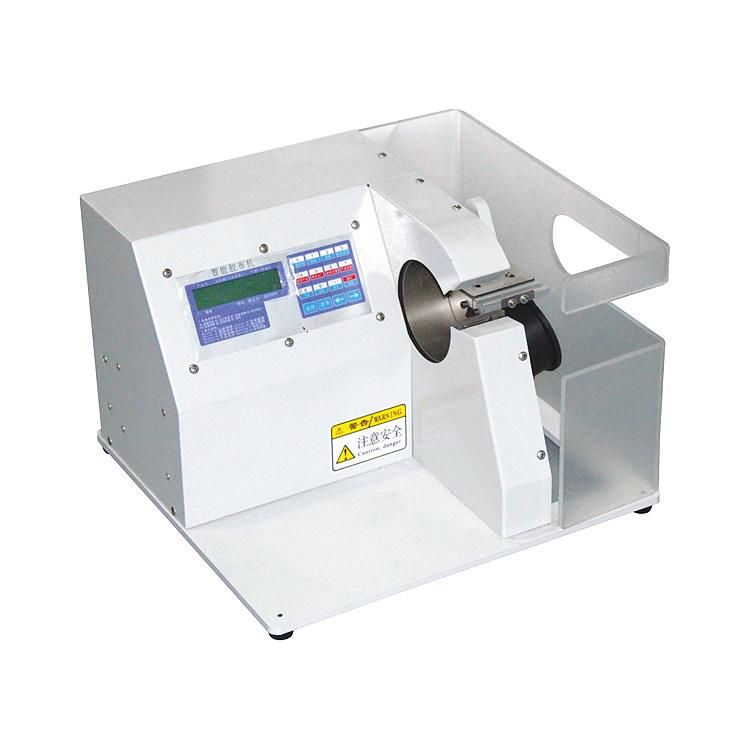

Semi automatic without wheels drive SR-303:

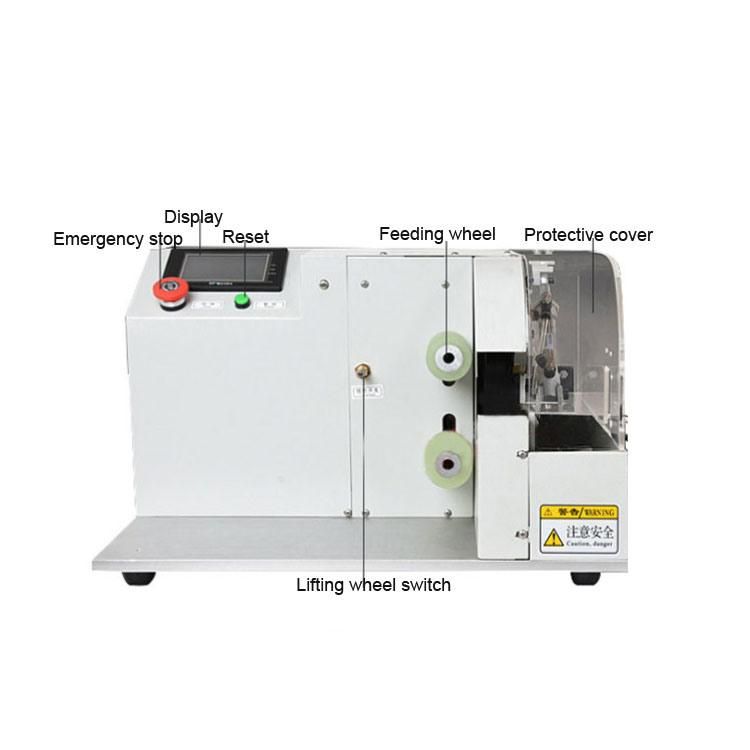

Automatic with wheels drive SR-303Q:










Contact:

 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

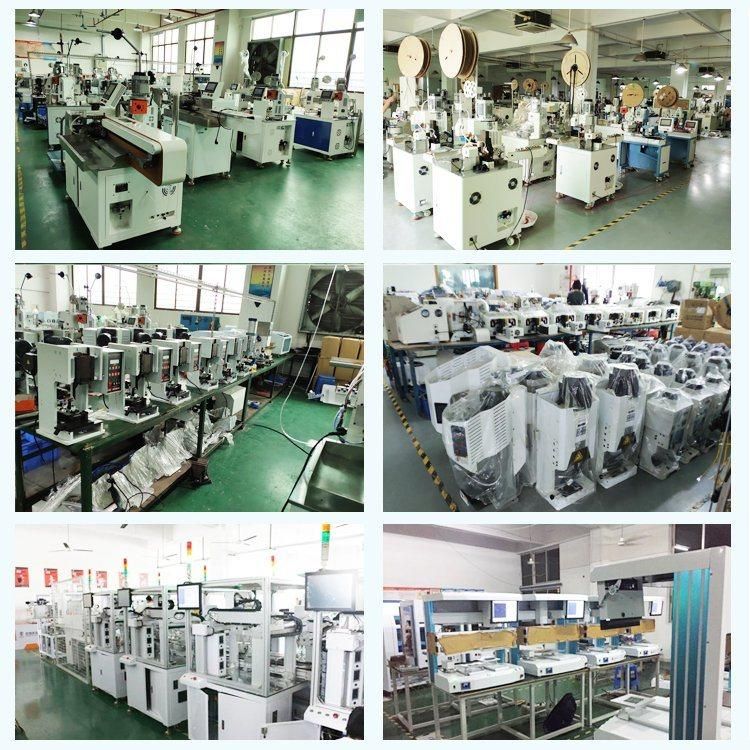

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
