• Model NO.：KXJ-063CNC
• Winding Spindle Stop Precision：0 Degree
• Winding Set Resolution Ratio：0.1 Degree
• Machine Weigth：250kg
• Hot Air Power：1500W
• Winding Servo Motor Power：AC 400W
• Wire Guiding Servo Motor Power：AC 400W
• Precision：High Precision
• Automatic Grade：Automatic
• Condition：New
• Customized：Customized
• Automatic：Automatic
• Certification：ISO
• Transport Package：Sea Worthy Wooden Case
• Trademark：ZHENHUAN
• Origin：China
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. KXJ-063CNC Winding Spindle Stop Precision 0 Degree Winding Set Resolution Ratio 0.1 Degree Machine Weigth 250kg Hot Air Power 1500W Winding Servo Motor Power AC 400W Wire Guiding Servo Motor Power AC 400W Precision High Precision Automatic Grade Automatic Condition New Customized Customized Automatic Automatic Certification ISO Transport Package Sea Worthy Wooden Case Trademark ZHENHUAN Origin China Production Capacity 10 Set Per Month

Product Description

CNC Hot Air Bonding Bobbinless Coil Winding MachineI Description of KXJ-063 CNC hot air bonding bobbinless coil winding machine:
A stand alone fully automatic system for winding hot air bonded air cored coils using wire coated with thermo-plastic adhesive. The wire is heated by the hot air supply as it is wound onto the coil, and the turns are bonded together by the adhesive. The finished coil is removed from the tooling and automatically ejected from the machine.
Applications include: RFID coils. laser heads, voice coils, magnet coils, sensor coils, vibrator coils and pancake motor coils.

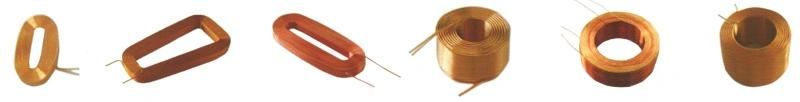

II Air cored coils produced by KXJ-063 CNC hot air bonding bobbinless coil winding machine:
III Main features of CNC hot air bonding bobbinless coil winding machine:
- Simple structure, high precision processing, long machine life
- 3 axis CNC control, full automatic
- Both side jigs rotate simultaneously driven by synchronization belt, no damage to thermal-plastic coated wire
- Low noise level during high speed rotating
- Winding width setting by servo motor, easier adjustment and higher precision
- CNC control system adopts SAMSUNG microcontroller, simple operation, easy programming
- Optional full seal protection cover
IV Main technical data of CNC hot air bonding bobbinless coil winding machine:

No.	Item	KXJ-063
1	Winding wire range	0.04-0.4mm
2	Suitable air core coils	Referring to attached photos.
3	Bonding method	Hot air
4	Max. stroke of guide head	25mm
5	Lead position	Arbitrary
6	Spindle speed	0-3000 rpm
7	Max. production speed	6 pcs/min
8	Air coil winding direction	Clockwise / anti-clockwise
9	Winding spindle motor  (Y-axis)	AC400W, servo
10	Wire guiding motor     (Z-axis)	AC 400W, servo
11	Coil height adjust motor (U-axis)	AC 400W, servo
12	Y-axis setting range	0 - ±999999C359º
13	U-axis setting precision	0.01mm
14	Winding spindle stop precision	0º
15	Winding set resolution ratio	0.1º
16	Hot air heating element power	AC 1500W
17	Electric power supply	Single phase 210~230V, 50Hz
18	Compressed air pressure	0.5~0.7MPa
19	Machine dimension	1000 x 700 x 1760mm
20	Machine weight	250kg

We can produce various kind of hot air bonding bobbinless coil winding machines, air cored coil winding machines according to your self supporting air core coils or bobbinless coils details.
