• Model NO.：ZWR-4A
• Winding Method：4 Wires Twist
• Winding Turns：9~16
• Production Speed：4~6s Per Piece
• Precision：High Precision
• Automatic Grade：Automatic
• Condition：New
• Customized：Customized
• Automatic：Automatic
• Certification：Ts16949, ISO
• Transport Package：Sea Worthy Wooden Case
• Specification：850 x 550 x 1400mm
• Trademark：ZHENHUAN
• Origin：China
• HS Code：84798110
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. ZWR-4A Winding Method 4 Wires Twist Winding Turns 9~16 Production Speed 4~6s Per Piece Precision High Precision Automatic Grade Automatic Condition New Customized Customized Automatic Automatic Certification Ts16949, ISO Transport Package Sea Worthy Wooden Case Specification 850 x 550 x 1400mm Trademark ZHENHUAN Origin China HS Code 84798110 Production Capacity 10 Set Per Month

Product Description

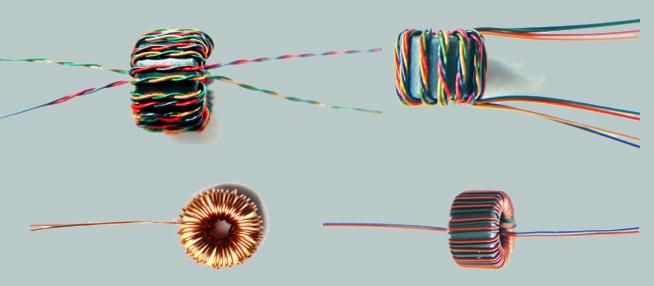

CNC Miniature Toroidal Coil Winding MachineI Description of CNC miniature toroidal coil winding machineThis machine is for winding 4-wire twisted to super miniature toroidal cores.
This is a full automatic machine, auto core feeding, wire accumulating, twisting, winding, finished coil unloading.
There are also other miniature toroidal coil winders for different wire winding:

II Main features of CNC miniature toroidal coil winding machine:
- Separate accumulating speed & length control
- Separate winding speed & turns control
- Optical fibre sensor plus dual digital displayer for turns controlling
- Variable winding pitch, programmable
- Servo motor drive, high precision, stable speed switching
- Full automatic, continuous working, many machines with few operators
III Main technical data of CNC miniature toroidal coil winding machine:

Item	Data
Miniature core ID	1.27~2mm
Miniature core OD	2~4mm
Miniature core height	0.65~3mm
Suitable wire diameter	0.07 ~0.127mm
Winding method	4 wires twisted
Winding turns	9~16
Continuous production delay time	Less than 2%
Winding speed	4~6s per piece
Percent of pass	>99.5%
Machine dimension	About 850 x 550 x 1400mm
Machine weight	About 450kg

We can produce various kind of automatic miniature toroidal coil winding machines according to your micro magnetic core sizes, winding wire requirements, etc.
