Jaguar New Style Easy Install Easy Operate 6 Zones Lead-Free Hot Air Reflow Oven with CE Cert.
Shenzhen Jaguar Automation Equipment Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Warranty：12 Months
Base Info
- Automatic Grade：Automatic
- Installation：Vertical
- Name：Reflow Oven
- Heating Mode：Hot Air
- Cooling Mode：Force Air
- Mesh Belt Width：400mm
- Transmission Direction：L-R(or R-L)
- Transmission Type：Mesh and Chain
- Transmission Net Height：880+-20mm
- Warming Time：About 20mins
- Temp. Control Method：PLC & PC
- Temp. Setting Range：Room Temperature-300 Degree
- Max PCB Width on Chain：300mm
- Machine Dimension：3700*1100*1490mm
- Transport Package：Wooden Box
- Specification：CE
- Trademark：JAGUAR
- Origin：China
- HS Code：8515190000
- Production Capacity：100 Sets,Month
- Package size per unit product：390.00cm * 130.00cm * 169.00cm
- Gross weight per unit product：900.000kg
Description

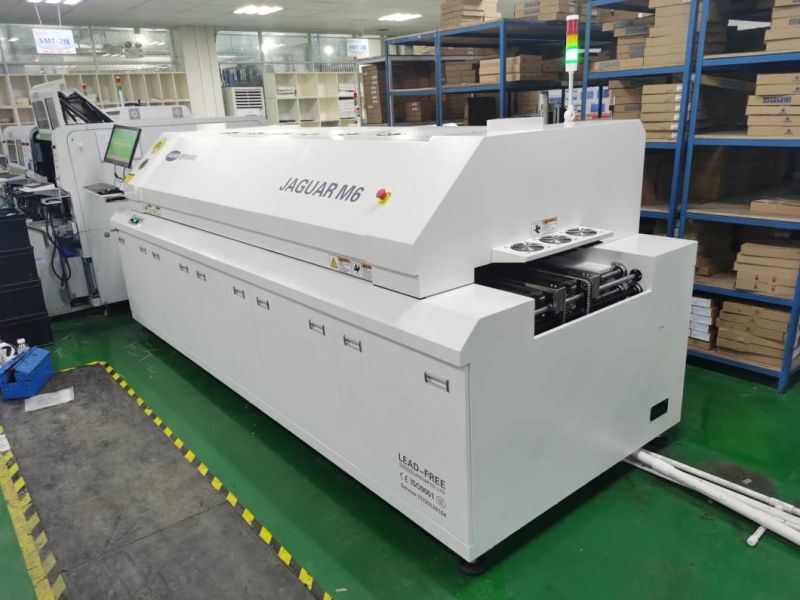

JAGUAR M6
Heating SystemNumber of Heating Zone Top 6 Bottom 6 Heating Passage 2500mm Heating Style Hot Air Number of Cooling Zone Up 1 Bottom 1 Cooling Style Forced Cooling air
Conveyor SystemMax. Width of PCB 300mm Mesh belt width 400mm Conveyor Direction L→R(or R→L) Process Height 900±20mm Conveyor Type Mesh and Chain Conveyor Speed 0-2000mm/min Manual Lubrication Standard Hood Opening Electrical Screw Pole Fixed Track Front Track Fixed (Option: Rear Rail Fixed) Product Clearance Top and Bottom 25mm
Control SystemPower Supply 5line 3phase 380V 50/60Hz Total Power Consumption 26kw Startup Consumption 18kw Steady Consumption 4-7KW Ramp Up Time About 20 mins Temp. Setting Range Room Temperature-300ºC Temp. Control Method PLC + PC Temp. Control Precision ±1.5ºC Data Storage Process Data and Status Storage(80GB) Nozzle Plate Aluminum Alloy Plate Abnormal Alarm Abnormal Temperature. (Overtemp/Low temp.) Board Dropped Alarm Tower Light: Amber-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H) 3700×1100×1490mm Weight 900KG Color Computer Grey
Tech-Specifications :
No.1 The unique advanced long life heating system
1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .
2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .
3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .
4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .
No.2 Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.
2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .
3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.
No.3 Stable and reliable electrical control system
1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .
2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .
3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5 .Failure diagnosis and sound light alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.
Specification:keywords: reflow solder, solder reflow, reflow solder paste, reflow soldering at home, reflow soldering temperature,diy reflow soldering, infrared reflow soldering,reflow solder defects,reflow soldering, reflow soldering method, solder paste reflow,solder reflow temperature, solder reflow technology handbook,diy reflow oven, reflow oven temperature, reflow oven diy, T962a reflow oven, reflow oven profiler, T962 reflow oven review, what is reflow oven,reflow soldering process, reflow process, reflow soldering processes, smt reflow process, solder reflow process, smd machine, smd reflow, smd reflow oven, reflow smd,smd machines, lead free solder, lead solder, solder lead free, lead free solder bar, solder paste lead free, surface mount technology, surface mount, surface mount technology process, surface mount equipment, surface mount machine, surface mount oven, surface mount machines, smt process,smt technology, smt production,smt equipment manufacturers, smt machinery, smt assembly equipment, smd soldering machine, smd soldering tools,smd soldering oven, what is smd soldering, PCB soldering, PCB oven, pcb reflow, auto soldering machine, solder for electronics, soldering electronics, reflow oven, smt machine, smt equipment
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Packing and shipping:
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
Please contact me if you need any machine!
Best Regards,
Nona Xiao
JAGUAR AUTOMATION
