• Model NO.：HH-60mm,70mm,80mm,90mm,100mm,120mm
• Model Number：Ha-MP13,Ha-MP14,Ha-MP15
• Power(W)：50kw
• Weight：7000kgs
• Certificate：ISO,Ce
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Extrusion Capacity：390kg , Hour
• Screw Speed：120 Rpm
• Available Material：PVC
• Voltage：220V, 380V, 415V, 440V
• Transport Package：Plastic Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：China
• HS Code：84772090
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. HH-60mm/70mm/80mm/90mm/100mm/120mm Model Number Ha-MP13/Ha-MP14/Ha-MP15 Power(W) 50kw Weight 7000kgs Certificate ISO/Ce After-Sales Service Engineers Available to Service Machinery Overseas Extrusion Capacity 390kg / Hour Screw Speed 120 Rpm Available Material PVC Voltage 220V, 380V, 415V, 440V Transport Package Plastic Package Specification CE ISO SGS Trademark HOOHA Origin China HS Code 84772090 Production Capacity 6 Sets/Month

Product Description

High Quality Medical Perfusion Pipe Plastic Tube Extrusion Machine
 Video link to Youtube: https://hoohaco.en.made-in-china.com



HOOHA PTFE Paste Extruder

• Tubes, wires, sheetes made by the PTFE Paste Extruder have remarkable profiles; high heat resistance, noncombustibility, high chemical resistance, low frictional and dielectric coefficients. They are applied to many fields of industries. Particularly, those for oxygen sensing wire and coaxial cables are increasing. And porous film is a new demand. Futhermore, ultra-thin coat wire for medical use is rising up

Application

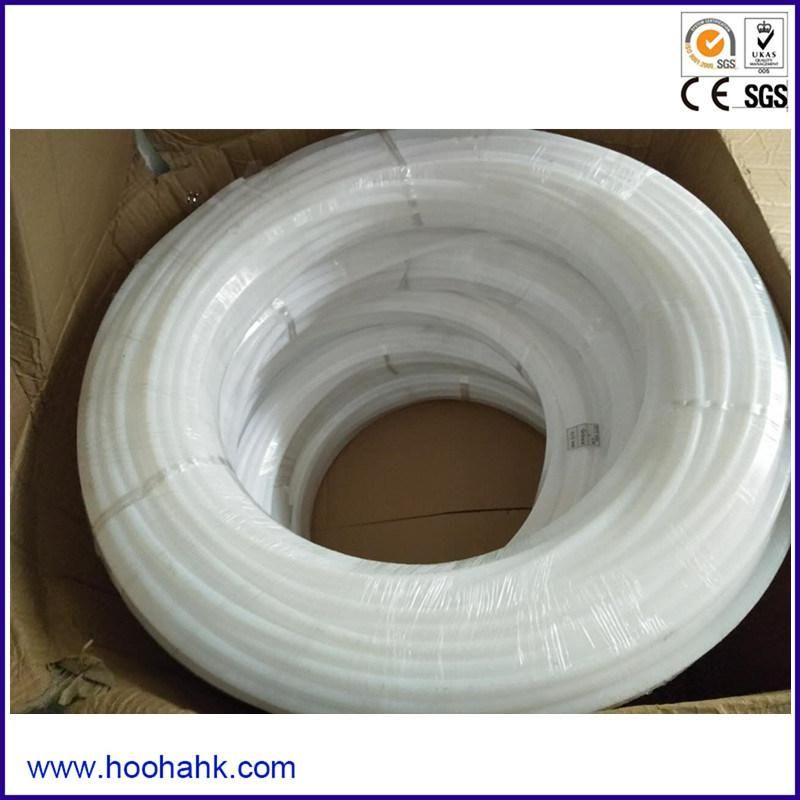

• Tubes (Approx. Diameter 1mm to 200mm, Approx. Wall thickness 0.1mm to 5mm)
• PTFE Coated Wire (coaxial cables, cables for auto mobile)


Process

1. PTFE (FP : Fine powder) and lubricant (naphtha) are blended in a blender.
2. Formed to a parison which has a cylindrical form by a pre-former.
3. A paste extruder extrudes the parison material with high pressure in normal temperature.
4. In cooperating or isolated process, the molded PTFE product is dried and sintered.


A take-up unit pulls a wire reeled up on a wire feeder through a extruder with constant speed.

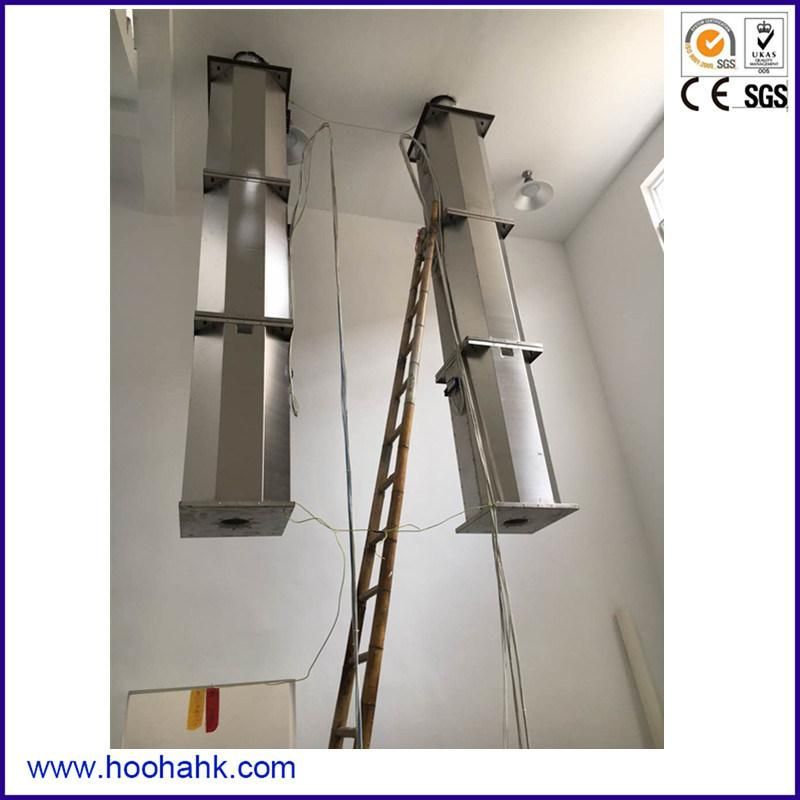

The wire is covered with PTFE at the extrusion die arranged at the front end of the cylinder. These process are completed in normal temperature Then polymer, with which the wire is covered, is fixed by being dried and sintered in the sintering oven. And then the Wind-up Equipment winds the completed product (the covered wire).

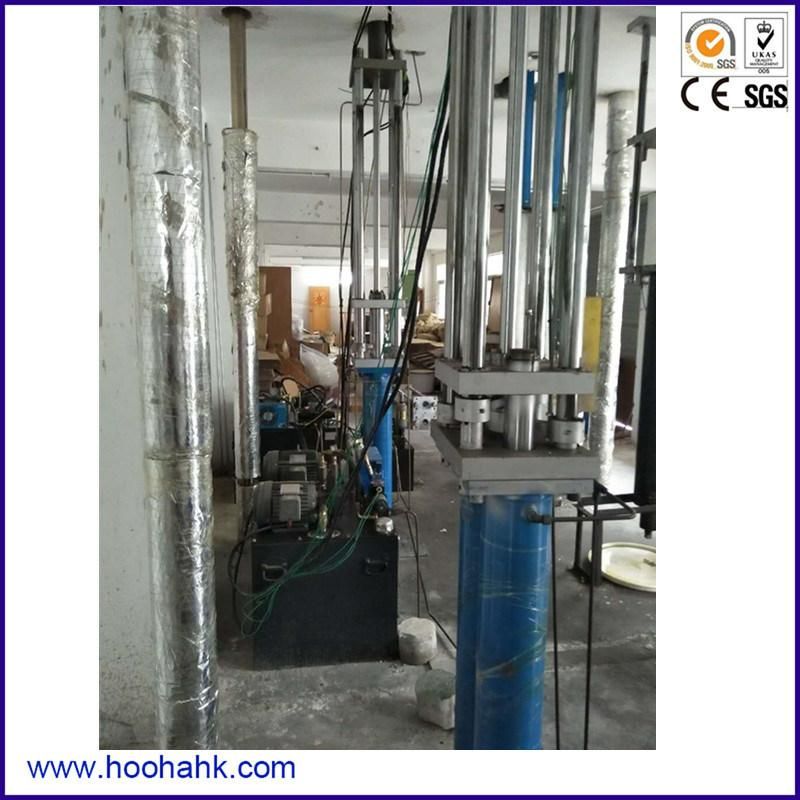

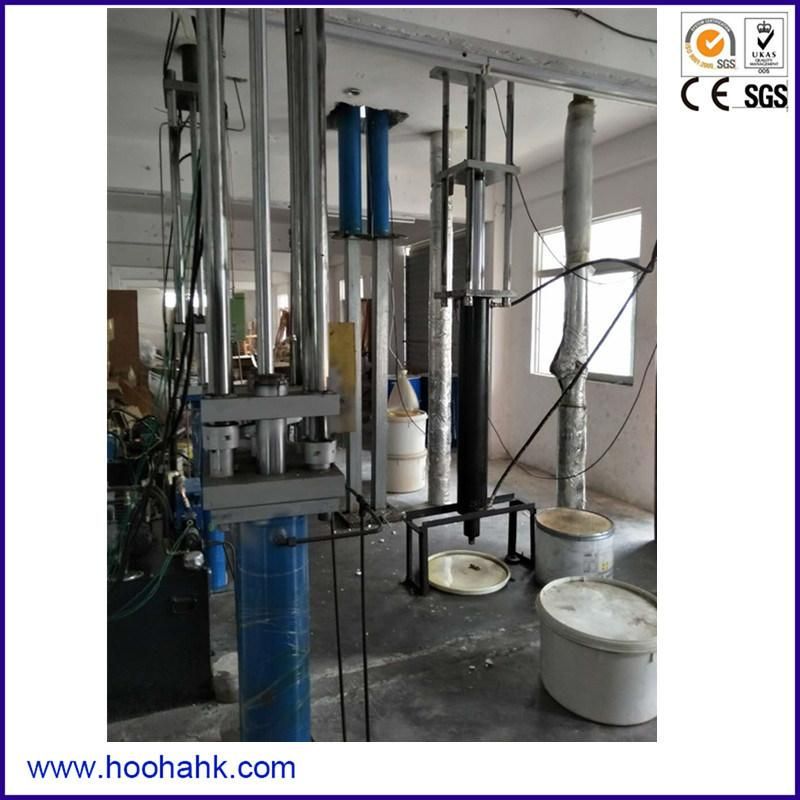

The pre-former is horizontal structue. The extruder and the oven are horizontal or vertical. The direction depends on factory space and product specification.
Our PTFE extruder and related machines are working in many customers factories.


Structure

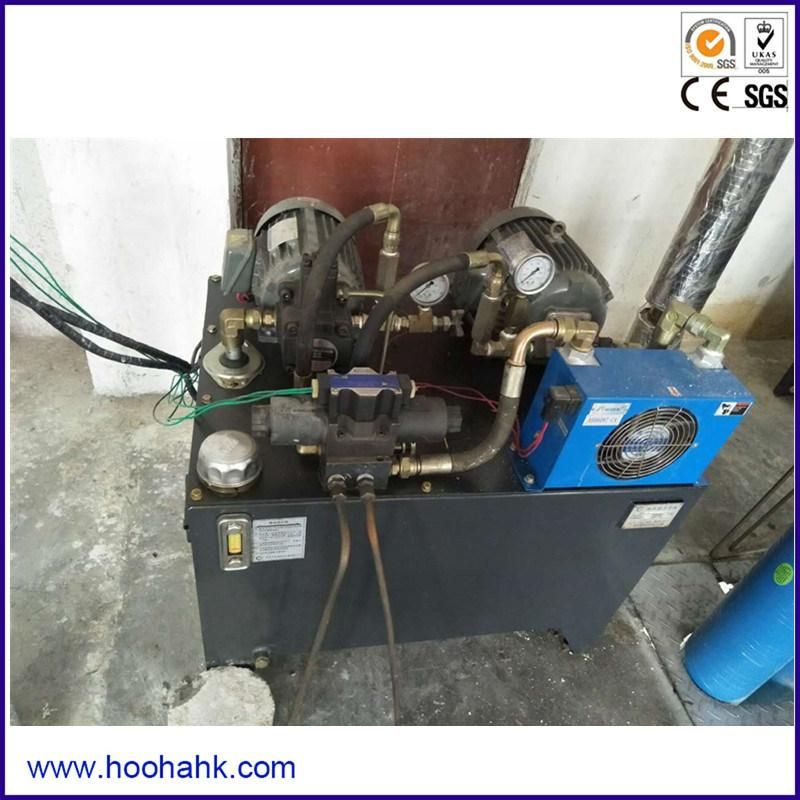

We have 2 types of extruders, electric drive and hydraurlic drive. Many electric drive extruders are working in our customers factories.

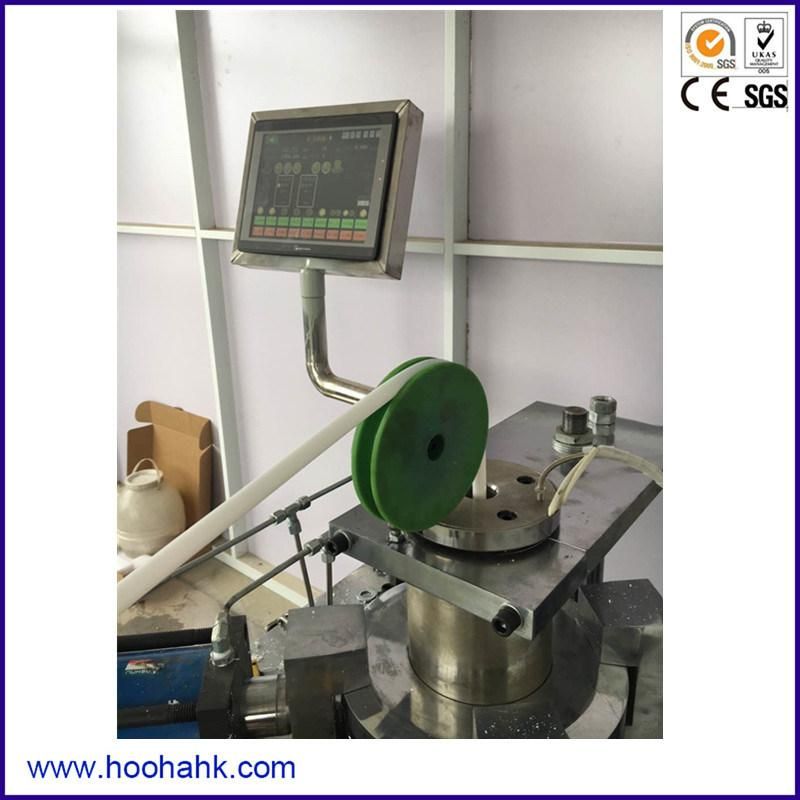

Motor-drive PTFE Paste Extruder

Generally, the least thickness of coat made by a paste extrusion is approximately 50 micron. Our system can coat as thinner less than 30 micron, which is demanded for medical use.
Ram speed is most significant in the extrusion process.
Our extruder has a high-performance motor-drive system and an accurate driving mechanism. It keeps stable ram speed and produces precise high quality products.
