• Model NO.：Topbest-DJ-5331
• Driven Type：Electric + Pneumatic
• Working Area：480*280*80mm(X*Y*Z)
• Dispensing Accuracy：+,-0.02mm
• Power Supply：AC 220V
• Weight：70 Kg
• Working Temperature：5-40
• Working Humidity：20-90% Rh
• Transport Package：Wooden Box
• Specification：730*630*850mm
• Trademark：Topbest
• Origin：China
• HS Code：8486402900
• Production Capacity：1000 Pieces,Year

Basic Info.

Model NO. Topbest-DJ-5331 Driven Type Electric + Pneumatic Working Area 480*280*80mm(X*Y*Z) Dispensing Accuracy +/-0.02mm Power Supply AC 220V Weight 70 Kg Working Temperature 5-40 Working Humidity 20-90% Rh Transport Package Wooden Box Specification 730*630*850mm Trademark Topbest Origin China HS Code 8486402900 Production Capacity 1000 Pieces/Year

Product Description

Topbest-DJ-5331

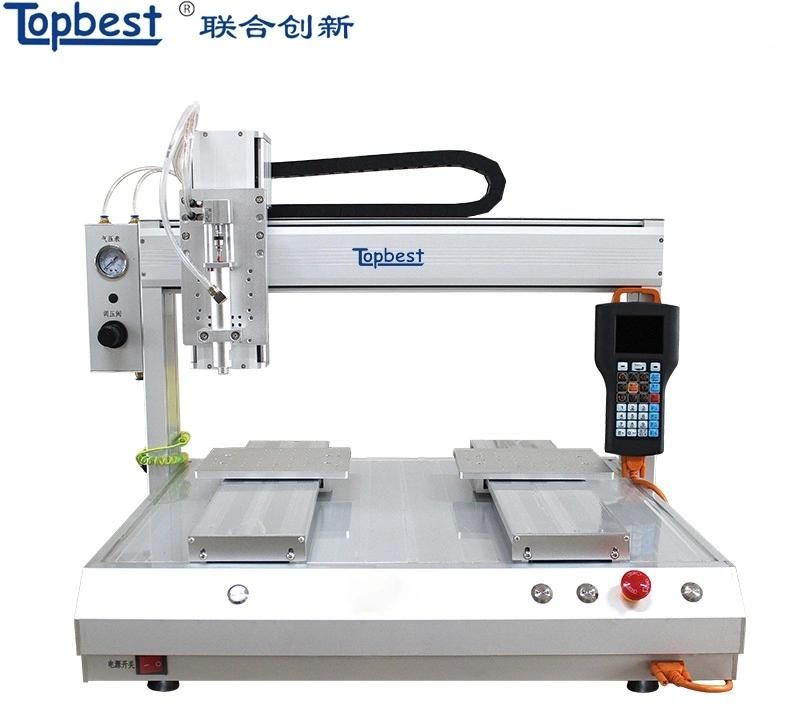

Desktop 4-Axis Single Head Double Y Fluid Dispensing Robot


Description

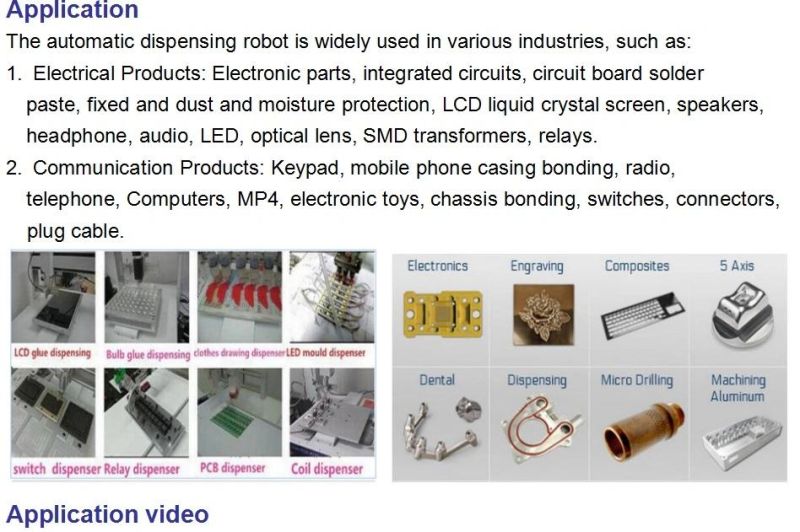

The automatic fluid dispensing machine is widely used in various industries, such as mobile phones, hard drives, keyboards, toys, LCD / LED modules, communications equipment, electrical appliances, auto parts and another electronic processing assembly. The dispensing machines can solve many substantial problems of small, medium and large enterprises, such as labor shortage, low production efficiency, high labor intensity, increased material consumption costs, and increased difficulty in management.



Parameters

Model	Topbest-DJ-5331
Dimension (L*W*H) (mm)	730*630*850mm
Weight(kg)	70
Operation Range (X*Y*Z) (mm)	480*280*80mm
Axes	4 Axis (X,Y1,Y2,Z)
Driving mode	Precision Stepping Motor+Timing belt
Maximum Speed	X,Y 600-800mm/S, Z 600mm/S
Repeated precision	X,Y,Z  ±0.02mm
Teaching Method	Remote Teaching / Manual Data Input / Optional: LCD Touch Screen
Motor system	precision stepper motor
Transmission mode	Timing belt + screw rod +guide rail
Control Panel	Teach pendant (optional:PC or Touch Screen)
Dispensing  efficiency	According to the glue type or product requirements
Dispensing  valve	According to the glue type or product requirements
Voltage	AC 110V/220V,50Hz/60Hz
External Interface	USB + RS232
Power Source	Electricity + Pneumatic
Air pressure requirement	0.4 to 0.6MPa (4 to 6kg/cm2) as dry air
Working Temperature	5-40C°
Working Humidity	20-90% RH

Features
1. Desktop type can be placed on the production line.

2. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.

3. Glue automatic feeding, glue thickness, glue speed, dispensing time, stop time can be set parameters, the glue stability is high.
 4. Double Y-axis design, alternating work modes to maximize production efficiency.

5. Flexibility: Standard universal fixtures are suitable for a wide range of production requirements.

6. More user-friendly touch screen or teaching pendant operation, easy to operate. External technical parameters and manual test functions can be directly adjusted by the technician.

7. Has a variety of functions, such as drawing points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis movement.

8. The dispensing machine can work without a teach pendant connection.

9. Various types of distribution valves are available, such as screw distribution valves, metering valves, and injection valves to meet different production requirements.
Available Dispensed Material
UV glue, instant glue, silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB
black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc.
