• Model NO.：TP210+V3.0
• Certification：CCC, ISO, CE
• Warranty：18 Months
• Automatic Grade：Automatic
• Type：High-speed Chip Mounter
• Max PCB Size：300x300mm
• Typical Pick&Place Speed：2200-2800cph
• Repeat Accuracy：0.02mm
• Positioning：Machinery Position
• Component Available：SMD Component (Above 0603) and Soic
• Program：Software Program Input, Protel Data Import
• Weight：120kg
• Dimension：1025*1010*700mm
• Transport Package：Wooden Case, About 180kg
• Specification：1025*1010*700mm
• Trademark：Termway
• Origin：Beijing
• HS Code：8479896200
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. TP210+V3.0 Certification CCC, ISO, CE Warranty 18 Months Automatic Grade Automatic Type High-speed Chip Mounter Max PCB Size 300x300mm Typical Pick&Place Speed 2200-2800cph Repeat Accuracy 0.02mm Positioning Machinery Position Component Available SMD Component (Above 0603) and Soic Program Software Program Input, Protel Data Import Weight 120kg Dimension 1025*1010*700mm Transport Package Wooden Case, About 180kg Specification 1025*1010*700mm Trademark Termway Origin Beijing HS Code 8479896200 Production Capacity 20 Sets/Month

Product Description

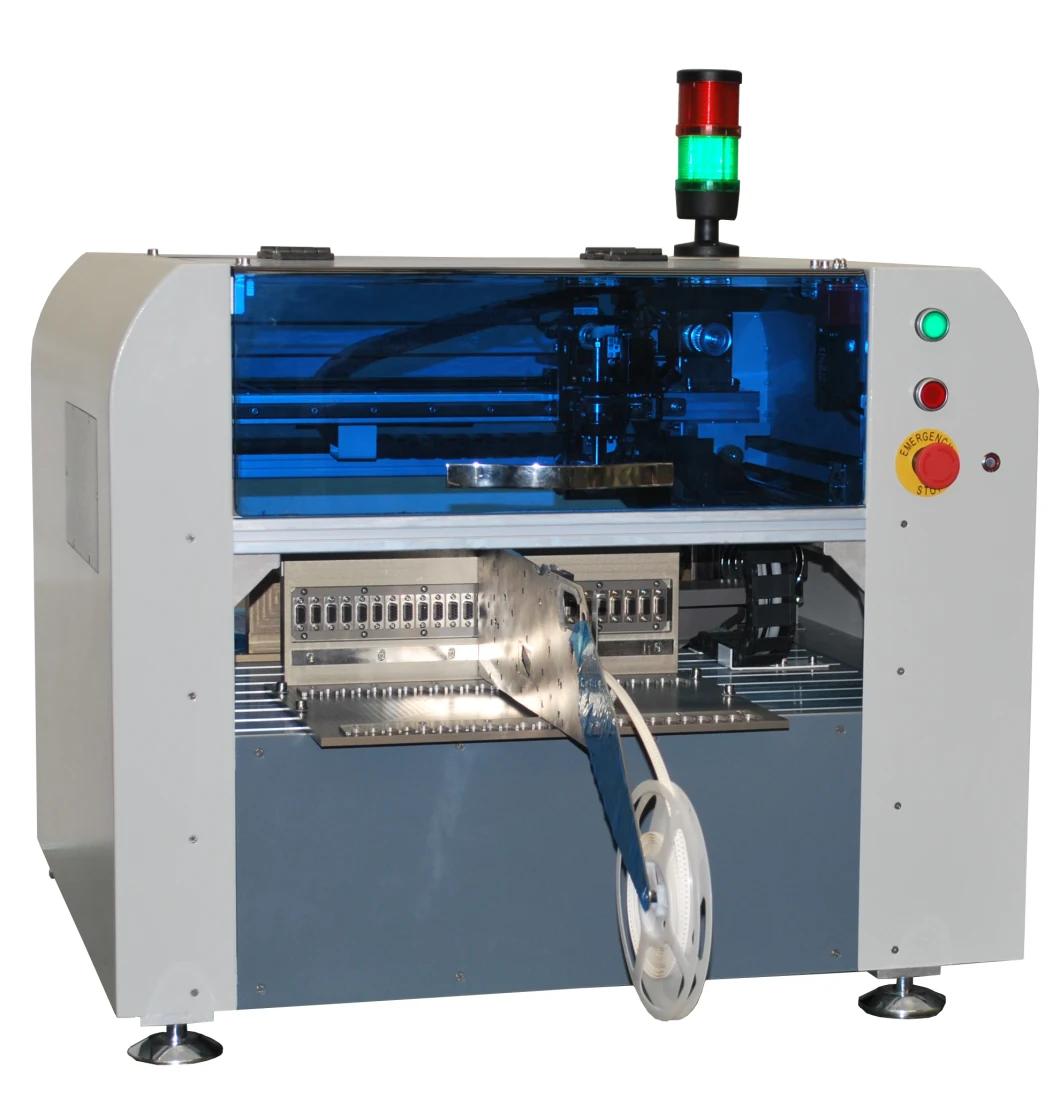

Automatic visional SMT /SMD Mounter TP210+V3.0 for pick and place



Introduction:
Automatic pick and place machine TP 210+ V3.0 is a mini-type desk high speed pick n place machine. It mounts the component by vacuum nozzle and It is the high cost - effective machine in the automatic pick and place machine. TP210+ can mount 0603, 0805, 1206 etc and SOP, SOIC (size under 15*15mm, PIN foot less than 24). TP210+ is configured with electronic smart GF feeders, Z-axis can rotate freely to mount any angle component.

The main feature:
1. Adopted high precision guide, can make sure the mounting precision.
2. Adopted vision program, easy to finish component position.
3. Configured with industrial computer and professional software.
4. Can change the nozzle according to different component by hand.
5. TP210+ is suit for small electronics company, scientific research and personnel usage. Specially for small and middle production.
6. The main feature of software:
A) Can input the CAD data of PCB as the mounting data to automatic program, no need input the component coordination by hand. It very convenient for anyone to operate.
B) Can finish the programming and mounting of panel-PCB stably and easily.
C) Can display the all coordination of panel-PCB and make micro adjusting to realize the precision mounting.
D) Can set up the space between panel-PCB and display all placing coordination according the spaces, also can choose the panel-PCB, which not mount.
E) If there are some process quality problem, the software can correct it through overall migration improved to make sure the repeated precision.
F) The software can inspect the move limit of X, Y, Z axis.
G) The software have 6 type of speed, can find out the best speed in the movement diagram and set up the speed, which can improve the stability in long time usage.
Standard accessories:
1. Industrial computer ----1 set
2. Mount heat---- 1 set
3. Vacuum nozzle----2 PCS
4. Diaphragm pumps---- 1 PC
Optional accessories:
1. GF electronic smart feeders: 8mm, 12mm, 16mm, 24mm
2. Vacuum nozzle.
3. Air pump
4. UPS

Type	TP210+
Max PCB size	300x300mm
max moving range	390× 360mm
max moving range of Z axes	12mm
Typical  speed	2200-2800cph
repeat accuracy	± 0.01mm
Positioning	Visional Position+ Machinery Position
Component Available	0603, 0805, 1206 etc and SOP, SOIC (size under 15*15mm, PIN foot less than 24)
Program way	Software program input
Driving mode	use industrial Synchronous belt to drive
Automatic Feeder	8mm, 12mm, 16mm, 24mm feeder can choose
Feeder Num	Can set 46 pcs of 8mm feeder
Operating system	WINDOWS  XP
compressed air	80psi(0.5Mpa)
Power supply	220V, 50Hz, 1KW
Weight	120kg
Dimension	1025*1010*700mm
