• Model NO.：WL-USB
• Available Cable：28*1p+28,24,26,22,20*2c
• Control Mode：Constant Temperature
• Power Supply：Single Phase AC 220V 10A 50Hz
• Pressing Pressure：0.5-0.7MPa
• Productivity：900~1200PCS,H
• Internal Peeling Length：0~20mm
• Weight：About 200kg
• Dimension：1500*600*1300mm
• Transport Package：Wooden Carton
• Specification：700x860x1260mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-USB Available Cable 28*1p+28/24/26/22/20*2c Control Mode Constant Temperature Power Supply Single Phase AC 220V 10A 50Hz Pressing Pressure 0.5-0.7MPa Productivity 900~1200PCS/H Internal Peeling Length 0~20mm Weight About 200kg Dimension 1500*600*1300mm Transport Package Wooden Carton Specification 700x860x1260mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

 WL-USB High efficiency Micro USB full automatic usb connector Type-C soldering machine A male female micro soldering

Introduction:

USB automatic wire welding machine is mainly used for the welding of long USB A male,

short AM , MINI5PIN and MICRO5PIN of USB cable.

It consists of automatic feeding of vibrating disc, rewiring, drawing and cutting, peeling and welding.

Scope of application:
1. USB A male and the wire welding;
2. USB A female and the wire welding;
3. Welding between MICRO USB and wire;
4. MINI and wire welding;
A male A female can also be soldered with iron shell, the plate can also be soldered in one plane, and the apple head can be soldered.



Feature:
1.  The machine is designed with a chain-integrated design to make the cable speed easier.

2. USB automatic soldering machine, no manual welding, full mechanized operation, high welding efficiency, operators only need card line

3. Automatic soldering machine: automatic wire drawing - automatic peeling - automatic welding - automatic receiving

4.First-class design concept from abroad, original imported accessories, first-class quality, super affordable price;

5.Capacity efficiency: a stronger production team; lowering labor costs
Machine welding: an average employee operates 800 to 1200 per hour
Hand soldering: a solder hand technician produces 200 to 350 pieces per hour
Efficiency comparison: 1 ordinary employee + 2-3 technicians=1 machine

6.There is no quality problem with incoming materials, and the yield is 99.6%.



Specifications:

Model	WL-USB
Name	wire USB plug soldering machine
Function	USB, MINI5PIN, MICRO5PIN auto tin welding
Crest number	1
Power supply	Single phase AC 220V  10A  50Hz
Drive type	Pneumatic
Control mode	constant temperature
Starting power	1KW
Normal operating power	0.5KW
Available cables	28*1P+28*2C, 28*1P+24*2C 28*1P+26*2C, 28*1P+22*2C 28*1P+20*2C
Internal stripping length	0~20mm
Working pressure	0.5Mpa
Productivity	900~1200pcs/H
Measurement	1500*600*1300mm
Weight	About 200kg
Customized	Availble

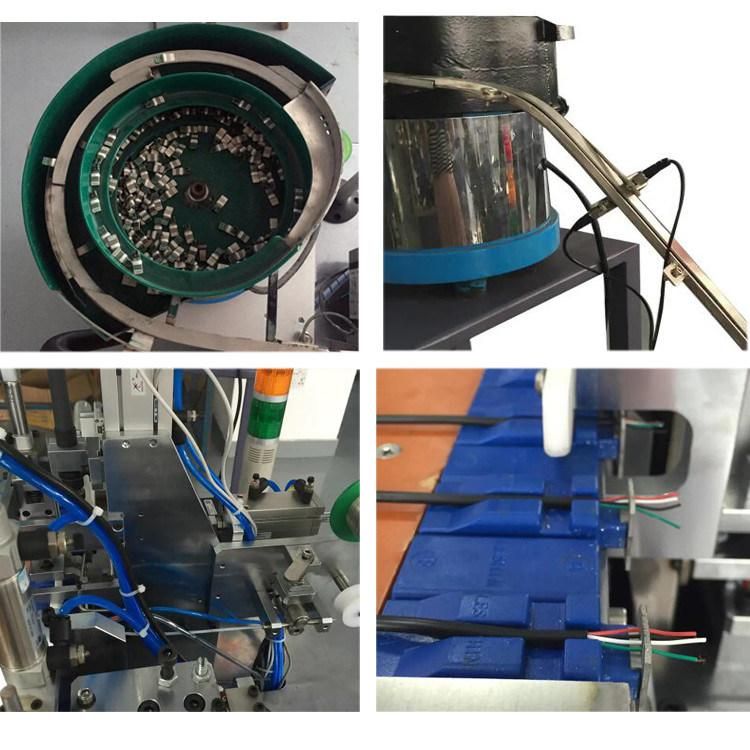

Product Show:

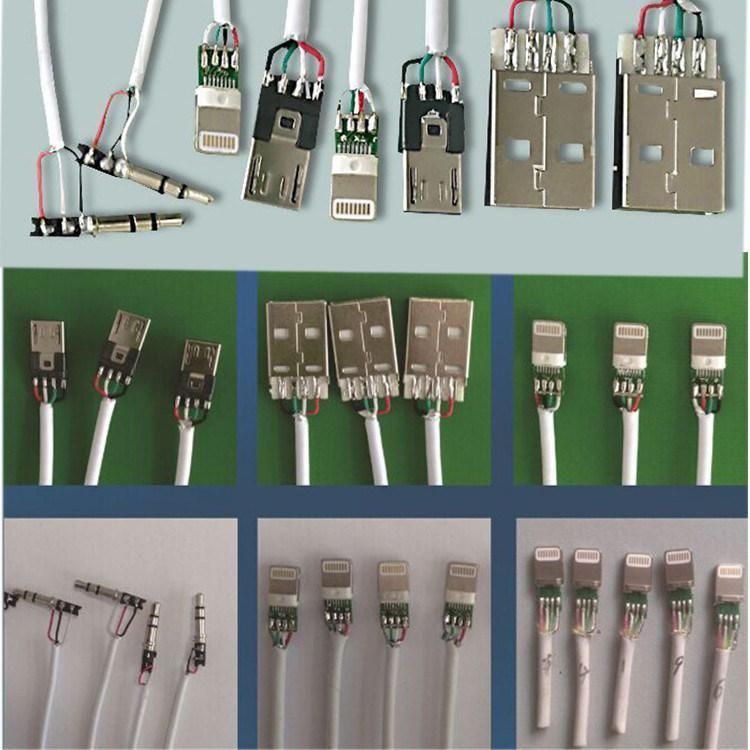

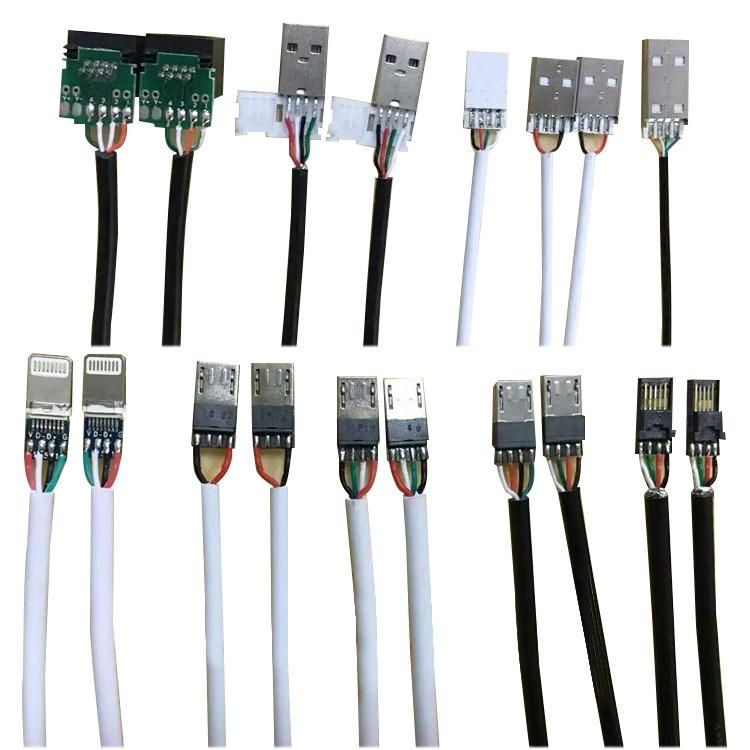

Application Terminal:








Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

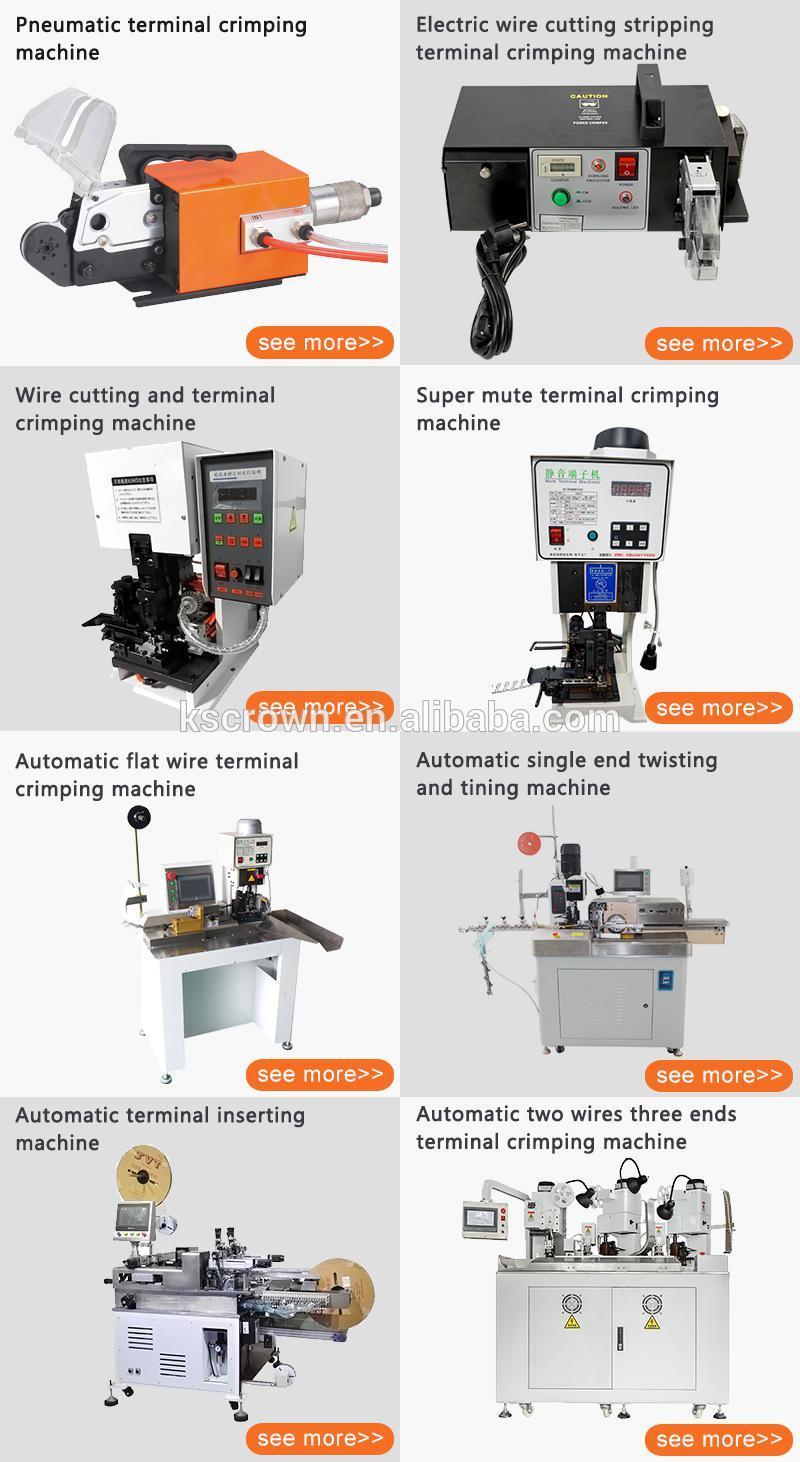

You may also like

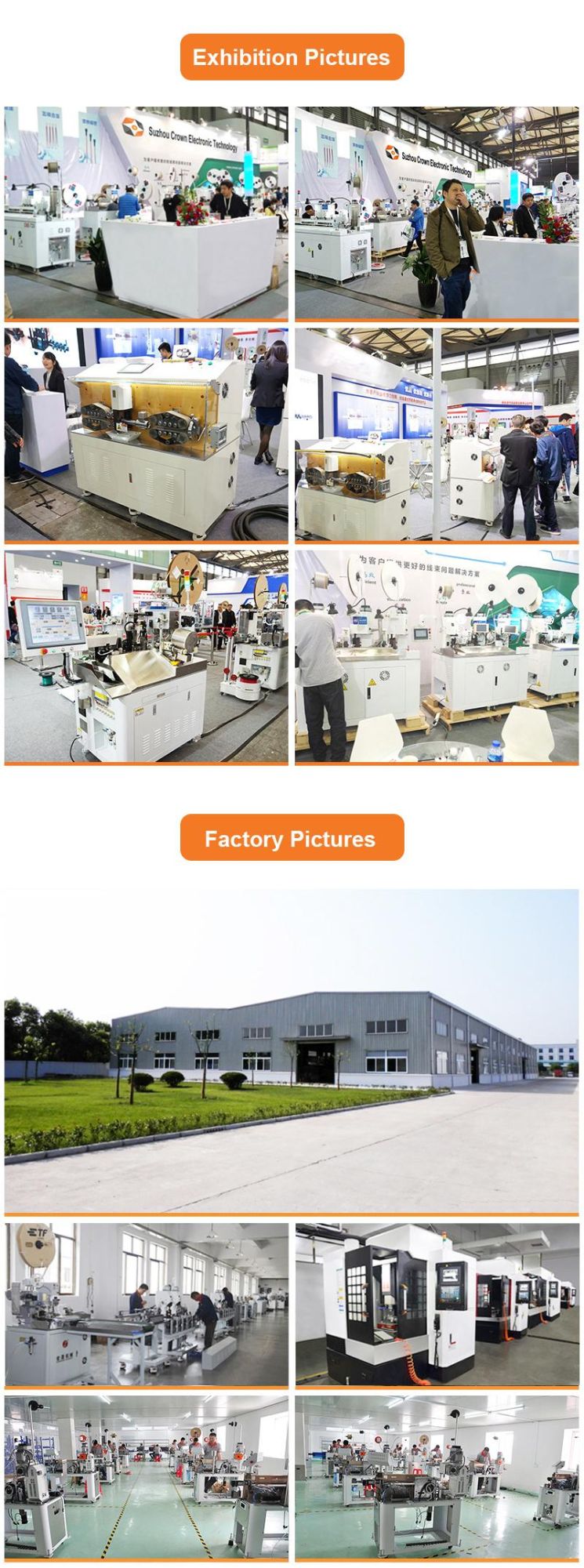

Company Information
