• Model NO.：WG-03A
• Application Range：AWG28-AWG22
• Stripping Length：0-7mm
• Cutting Length：80~600mm
• Wetting Length：0.5~7mm
• Flat Line Number：3~12 Pin
• Transport Package：Wooden Case
• Specification：L1700*W730*H1500(mm)
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-03A Application Range AWG28-AWG22 Stripping Length 0-7mm Cutting Length 80~600mm Wetting Length 0.5~7mm Flat Line Number 3~12 Pin Transport Package Wooden Case Specification L1700*W730*H1500(mm) Trademark wingud Origin China Production Capacity 120/Month

Product Description

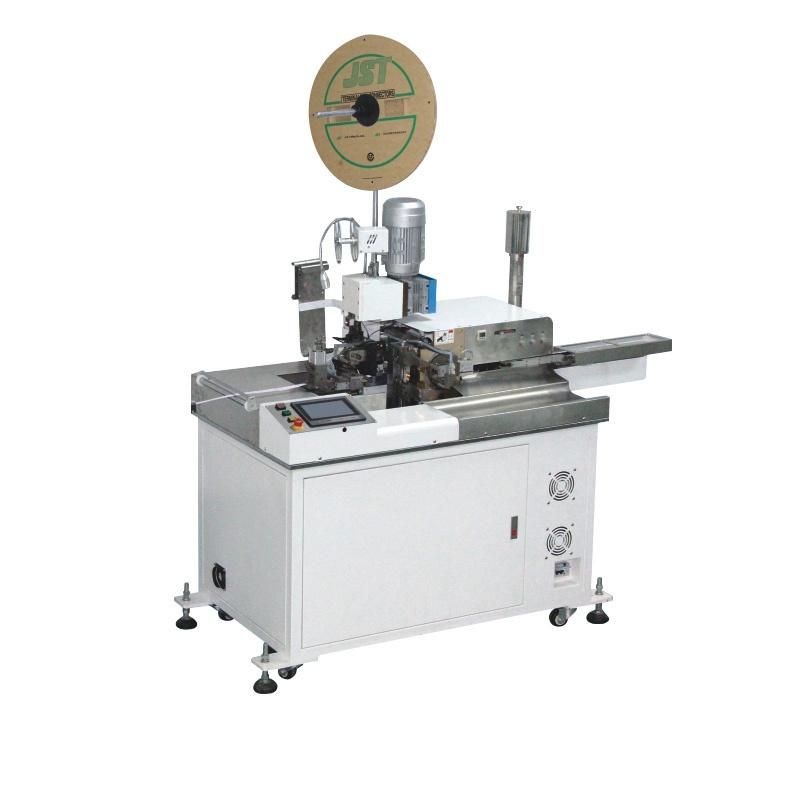

WG-03A Automatic one-end Flat Cable Stripping Crimping And tin Wetting MachineFunctional characteristics:      This machine is used for the flat line,one side for stripping crimping,and other side for stripping tinning. The front side can achieve the function of stripping, half stripping and crimping. The back side can achieve the function of stripping, half stripping and tin wetting. All functions can be controlled by full computer digitization which is easy to use, can be operated by ordinary workers.  Technical Parameters:

Model: WG-03A

Function: Flat Cable (wire dividing, cutting, stripping, crimping,tinning)

Cutting length: 50~1000mm (standard length) customizable for longer

Stripping length: 1~6mm

Machinable width of the flat cable: 25mm

Pressing Capacity: 2.0 Ton

Machinable wire: 3~12Pin(28AWG-22AWG)

Productivity: 4500terminals/h (depends on the length of the wires)

Dimension: L1700*W730*H1500(mm)

Air Pressure: 0.5-0.7MPA

Weight: 600kg

Configuration:
1,Operation panel: Weinview 7 inch color touch screen
2,Pneumatic element: AirTAC
3,Servo: Mitsubishi servo
4,Screw rod: Taiwan TBI
5,Wire rails: Taiwan HIWIN
6,Digital display pressure detection: AirTAC
