Manufacturing Equipment for Electrical & Electronic Product

Home > Product > Stripping Machine

Wire Machine Harness Process Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Model：Wl-30ht

Base Info

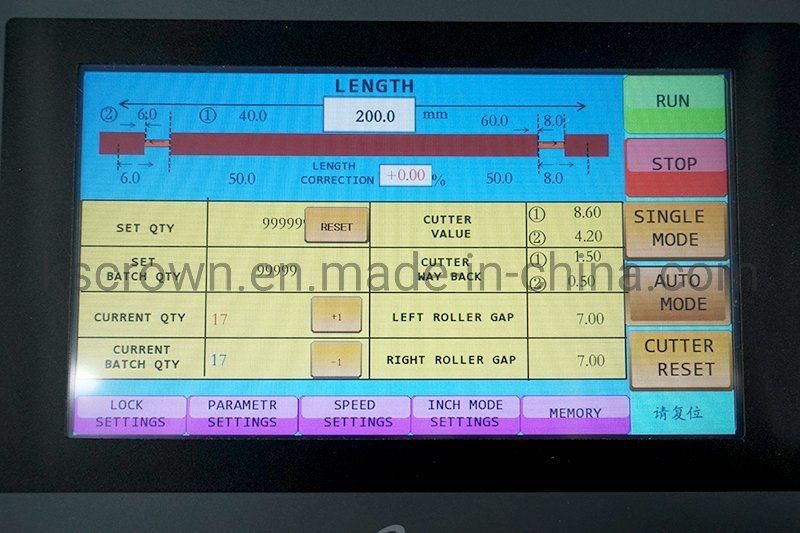

  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping
  • Stripping Length：Head: 10-120mm; Tail: 10-240mm
  • Process Wire Type：Sheathed Cables, PVC Cables, etc.
  • Stripping Range：6-30mm2
  • Conduit Diameter：Dia.16
  • Cutting Length：1mm-99999.9mm
  • Cutting Tolerance：Within 0.002*L (L=Cutting Length
  • Max Catheter Diameter：Dia.16
  • Blade Cutting Tool Material：High Quality Imported High Speed Ste
  • Capacity：2300PCS,H
  • Drive Method：16-Wheel Drive
  • Gross Weight：130kg
  • Machine Size：63*73*71cm
  • Transport Package：Wooden Case
  • Specification：63*73*71cm
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：2300PCS,H

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm2Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max catheter diameterΦ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables,
and the sample cable should be sent to us for test.

Features:

This wire stripping and cutting machine is able to process of multi-core sheathed cables. It can strip outer skin and inner core skin simultaneously. The applicable wire sizes range from 6-30 sq mm.

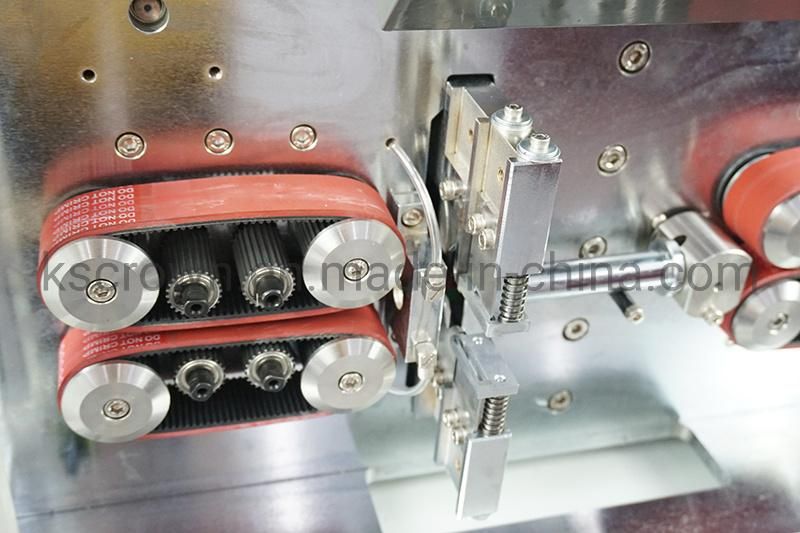

  • Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

  • Belt feeding wires, no embossing and scratches

  • Fully automatic cutting and peeling wires and cables

  • Being able to stripping outer skin and inner core skin of multi-core jacket cables simultaneously

  • Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm

  • Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240mm


Packing & Shipping & Payment:

For small and light products packed by cartons,for large and heavy products packed by wooden

Wire Machine Harness Process Machine

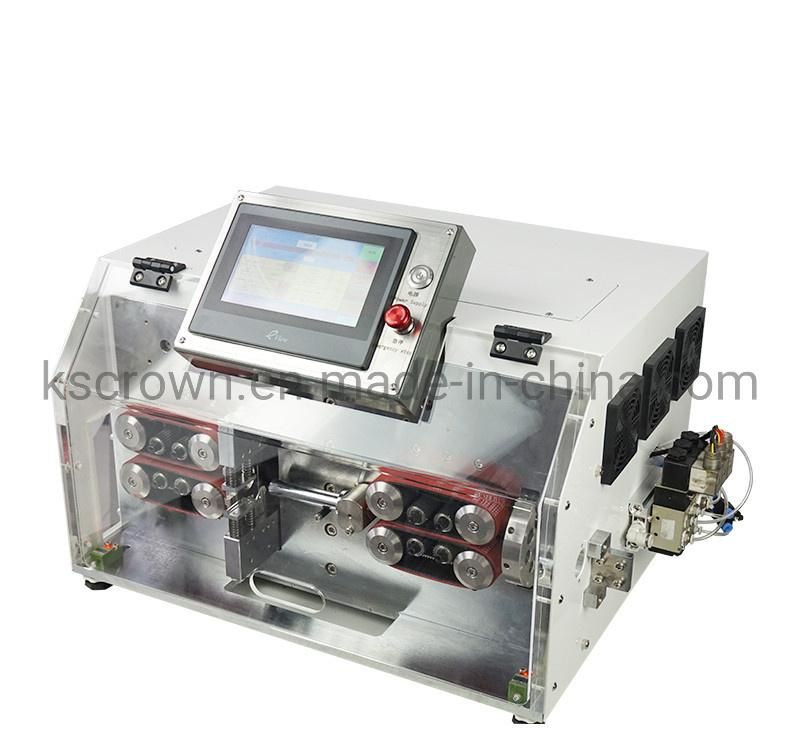

Product show:

Wire Machine Harness Process Machine
Wire Machine Harness Process Machine

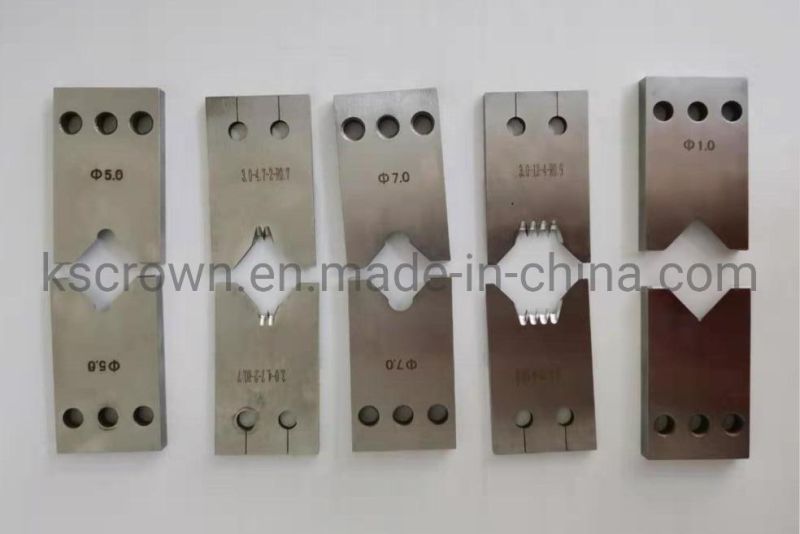

Wire Machine Harness Process MachineCustomized blade cutter
Wire Machine Harness Process Machine

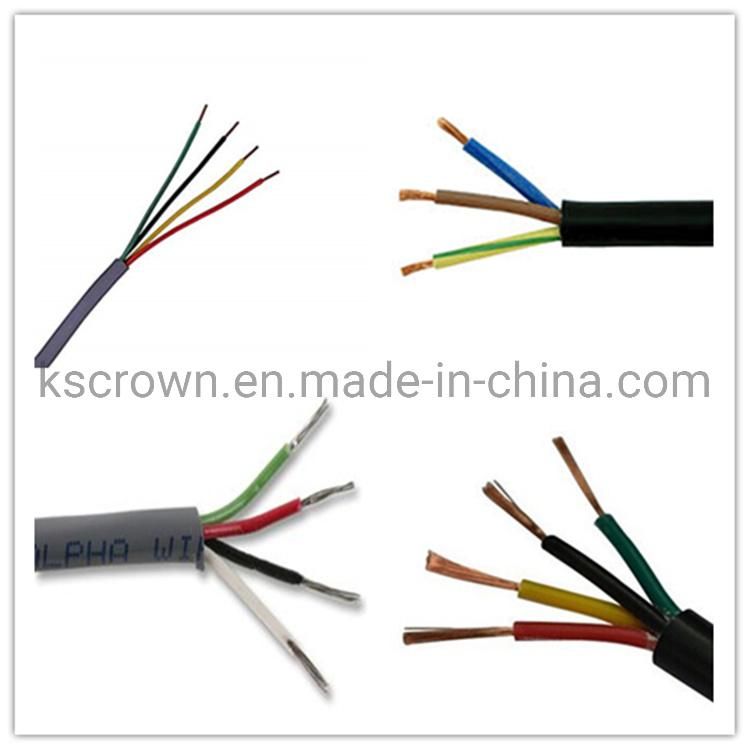

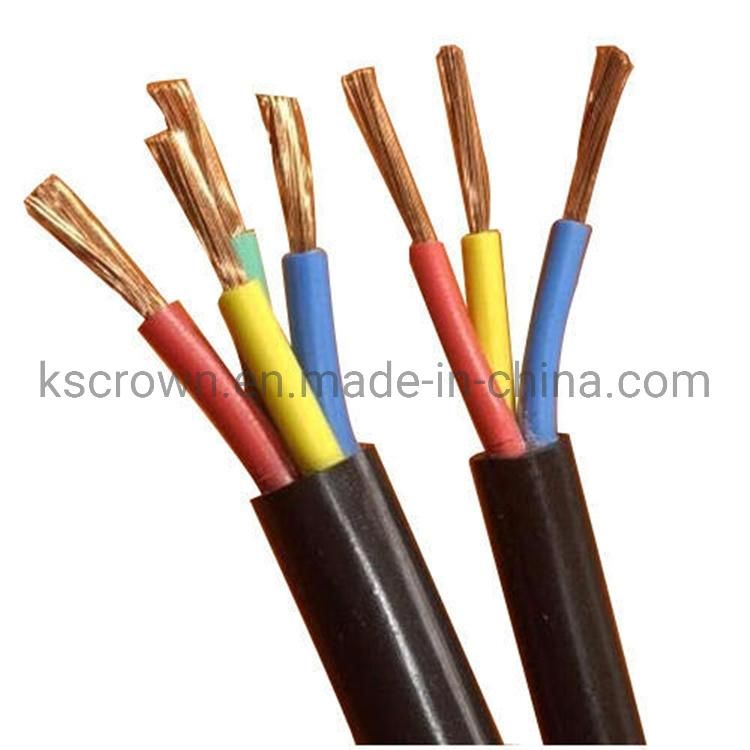

Machine processing wire samples:
Wire Machine Harness Process Machine
Wire Machine Harness Process Machine

Related products:
Wire Machine Harness Process Machine
FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.


Company information:

Wire Machine Harness Process Machine
Certificate:
Wire Machine Harness Process Machine

Contact:

Pls contact Suzhou Crown for price inquiry or any other questions/doubt.
