• Model NO.：KDEQ-02-111
• Trademark：Kiande
• Origin：China
• HS Code：8414809090
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. KDEQ-02-111 Trademark Kiande Origin China HS Code 8414809090 Production Capacity 10 Set Per Month

Product Description

We are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine. If you want to know how we use the machine to assemble the busbar, please kindly get the referenced pictures as below.

Step 1 Prepare all busbar finished components

Step 2 Use related busbar machines to process the busbar

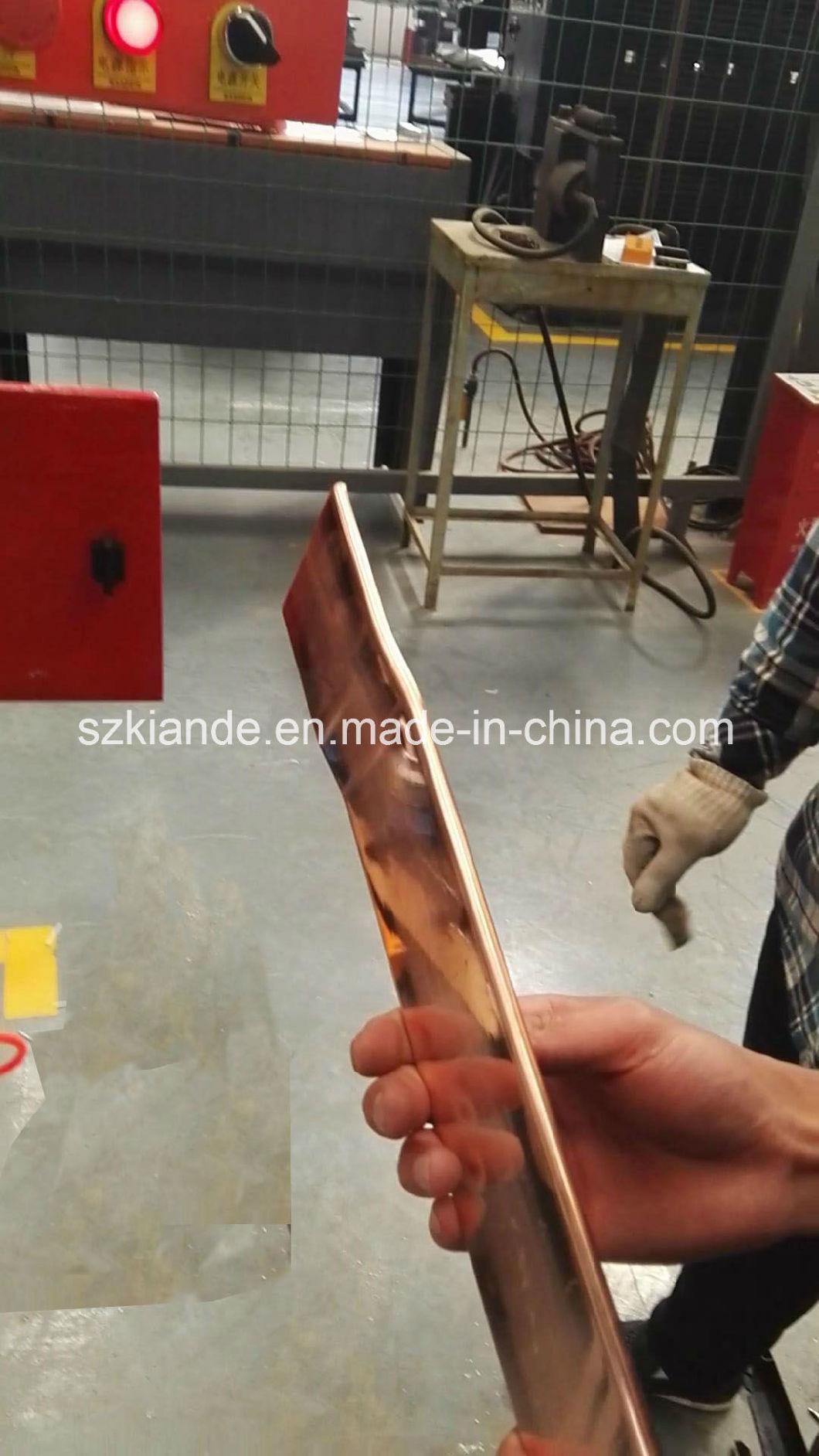

Busbar machine copper processing

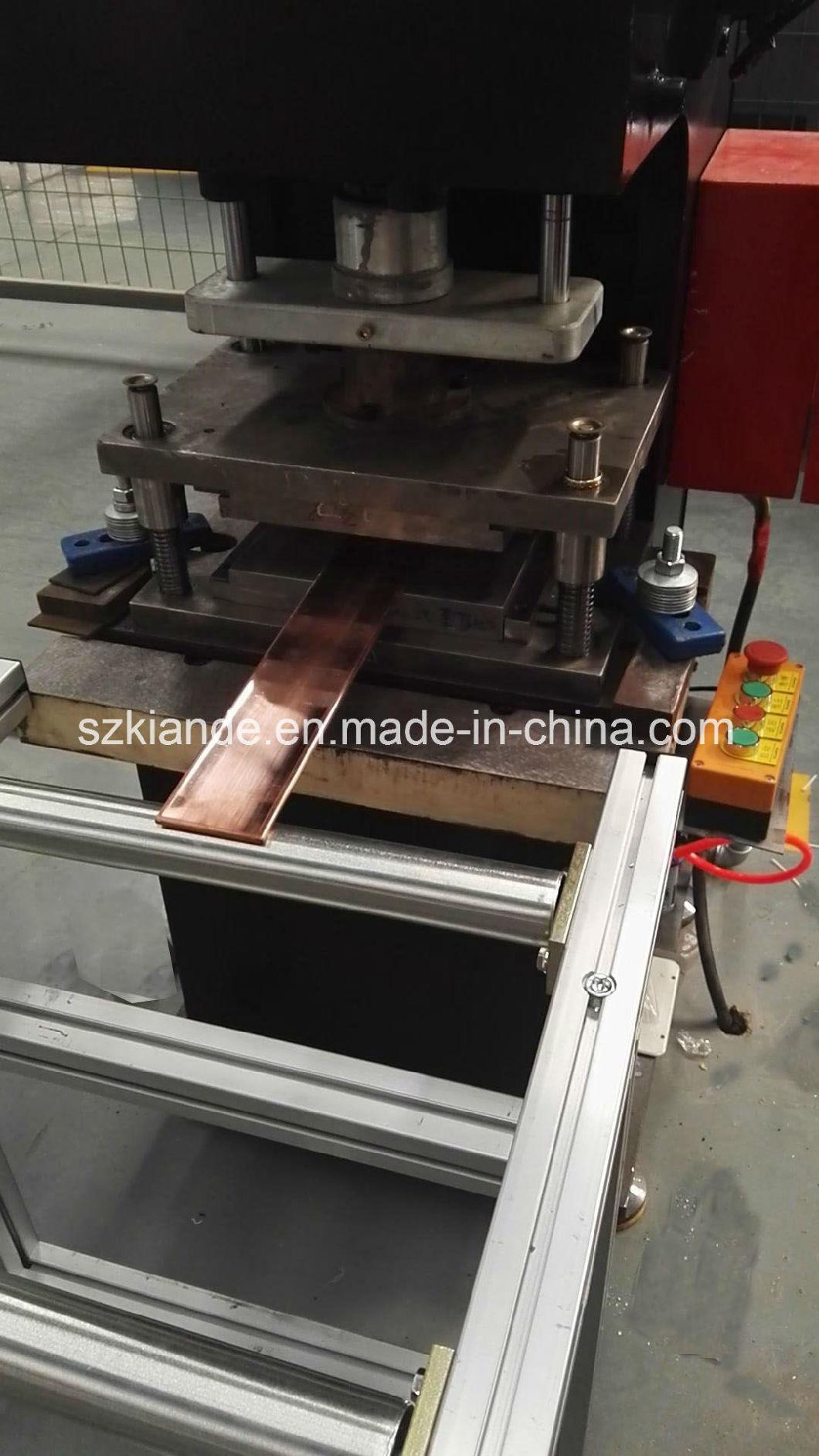

Need Kiande's busbar gas-hydraulic copper bar punching machine(This is one-time punching forming. In the market, some busbar manufacturer buys three-in-one busbar machine to bend and punch copper or aluminum bar. As the bar experiences many procedures, the accuracy is not good which will cause the phase distance too small to cause the short circuit.)

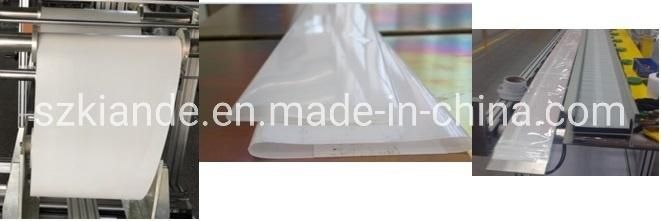

Busbar machine mylar sleeve processing machine polyester film forming machine
Need Kiande's mylar/polyester film forming machine. In the market, some busbar manufacturer requests workers to wrap the bar manually. Different workers have different workmanship. If employer meets the inexperienced workers, the wrapping part will have some gaps which will cause the short circuit.

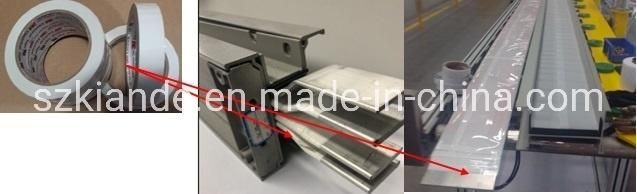

Busbar machine busbar accessory 3M insulation film Conductor(Copper bar/Aluminum bar) end wrapping

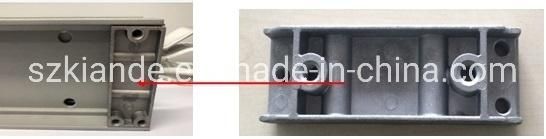

Busbar machine busbar accessory Aluminum profile capped casting capped end

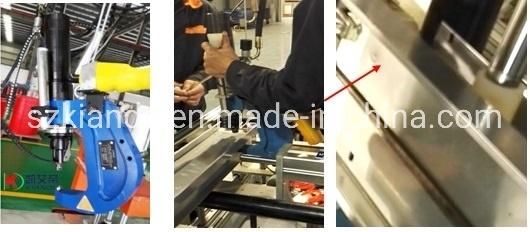

Busbar machine Busbar riveting machine

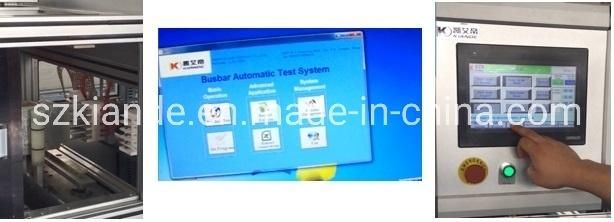

Busbar machine busbar inspection machine busbar testing machine





Busbar machine busbar packing machine busbar packaging machine

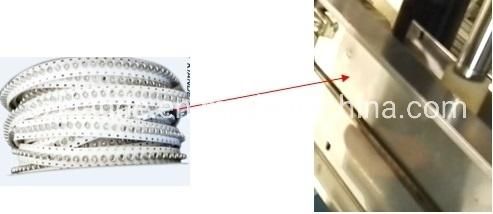

Busbar machine busbar accessory rivet the rivet is to connect the profiles instead of bolts more stable and strengthen




Busbar machine busbar accessory joint isolator



Copper bar gas-hydraulic bending machine
The copper or aluminum bar hydraulic bending machine is used to bend the copper or aluminum bar once to deform the bar as requred angle.
Specification:
1. Suitable for bus bar of straight length type or L or Z type, length 500~3000mm, width less than 250mm and thickness no bigger than 6mm;
2. Working efficiency: 1m/minute;
3. Standard configuration: one piece air and hydraulic bending machine, one set of frame;
4. Automation level: semi-automation;
Advantages:
1. Once deforming enables accurate deforming angle;
2. Integral die and die core for easy change;
3. Automatic pressurize and return controlled by PLC;
Configuration:

No.	Component Name	Quantity
1	Air cylinder	1set
2	PLC	1set
3	Housing	1set
4	Electric control system	1set
5	Electromagnetic valve	1set
6	Oil-water separator	1set
7	Electric component	1set
8	Moulding	1set
9	Frame	1set
10	Air pressure
11	Voltage
12	Power
