• Speed：20-150m,Min
• The Bearings of Main Parts：Chinese High Quality Brand: Hrb , Zwz, Lyc
• Belt Grip Length：520-5000mm
• Belt Width：70-240mm
• No. of Cylinder：3-14pairs
• Motor Power：3-55kw
• Motor Speed：1500rpm
• Transport Package：Standard Seaworthy Package
• Trademark：HLT
• Origin：China Jiangsu
• HS Code：8479400000
• Production Capacity：1000 One Year

Basic Info.

Speed 20-150m/Min The Bearings of Main Parts Chinese High Quality Brand: Hrb / Zwz/ Lyc Belt Grip Length 520-5000mm Belt Width 70-240mm No. of Cylinder 3-14pairs Motor Power 3-55kw Motor Speed 1500rpm Transport Package Standard Seaworthy Package Trademark HLT Origin China Jiangsu HS Code 8479400000 Production Capacity 1000 One Year

Product Description

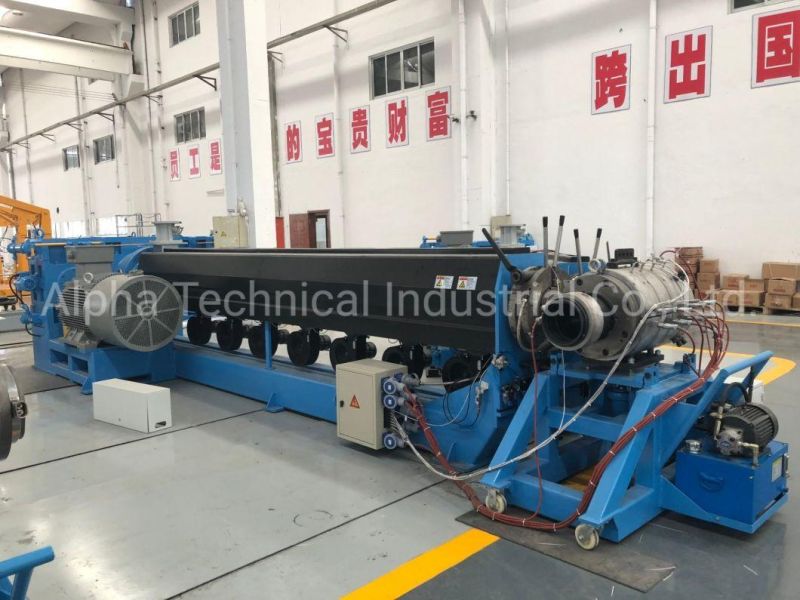

High Performance Cable Pulling Machine,Wire Cable Pulling Machine
I.Equipment Application:
Mainly used for various cable production lines for single machine or front and rear double traction.

II.Application:
1. The whole frame is made of high-quality steel plate after bending and splicing, and the appearance is novel.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of Z4 DC motor or variable-frequency motor for users to choose.
4. With electronic meter, it can display the line speed and meter length in time.
5. It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding production lines.
6. The tension tractor adopts magnetic powder tension control, which is used for the traction of the insulation and sheath extrusion production line. The tension is instantaneously adjustable, preventing the abrasion of the cable in the sink after the extrusion, and effectively solving the synchronization problem. And the effect of uneven tension on the wire diameter.
7. The small tractor has an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improve the repeated service life of the track

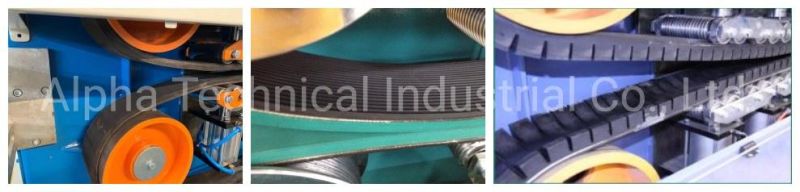

Machine details



 III.Technical Parameter

Model	Type 200	Type 300	Type 500	Type 800	Type 1250	Type 1600	Type 2000
Cable through the outer diameter(mm)	2~20	5~25	5~40	8~60	10~80	15~100	20~120
Max. traction force(kg)	200	300	500	800	1250	1600	2000
Speed(m/min)	150	150	100	100	80	80	60
Track contact length(mm)	520	620	750	1200	1500	1900	2100
Track width(mm)	70	70	80	100	120	120	135
Number of cylinder(pair)	3	3	3	5	5	6	7
Motor power(kw)	3	4	5.5	7.5	7.5	11	11
Motor speed(rpm)	1500	1500	1500	1500	1500	1500	1500
Center height(mm)	1000	1000	1000	1000	1000	1000	1000
Overall dimension (LxWxH)	1450x720x1500	1500x720x1500	1800x1000x1600	2500x1150x1650	2750x1150x1700	3100x1150x1700	3450x1200x1750

Model	Type 2500	Type 3200	Type 4000	Type 5000	Type 6000	Type 10000	Type 15000
Cable through the outer diameter(mm)	20~130	25~150	30~180	50~200	60~200	80~300	80~300
Max. traction force(kg)	2500	3200	4000	5000	6000	10000	15000
Speed(m/min)	60	45	40	30	25	25	20
Track contact length(mm)	2400	2700	2900	3250	3600	4800	5000
Track width(mm)	140	145	165	165	170	240	180x2articale/90x2articale
Number of cylinder(pair)	8	9	9	10	11	14	14+14
Motor power(kw)	15	15	18.5	22	30	37	55
Motor speed(rpm)	1500	1500	1500	1500	1500	1500	1500
Center height(mm)	1000	1000	1000	1000	1000	1000	1000
Overall dimension (LxWxH)	3800x1200x1750	4500x1280x1820	4600x1300x1900	5000x1350x1950	5350x1400x1950	7400x1630x2100	7500x2800x2200

IV. Related Equipment
Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter

Type & Size	Screw Dia. (mm)	L/D ratio	Screw speed (rpm)	Main motor (kw)	Barrel heating power (kw)	Temp. contr. zones (body/cross head)	Max. output capacity (PVC) (kg/h)
SJ30X25	20	25:1	5-150	11	3.6	3/2	20
SJ45X25	45	25:1	10-120	15	9	3/2	50
SJ65X25	65	25:1	10-100	30	16	4/4	120
SJ90X25	90	25:1	10-100	90	30	4/4	280
SJ120X25	120	25:1	7-68	132	54	6/4	580
SJ150X25	150	25:1	6-60	185	88	6/4	880
SJ200X25	200	25:1	4-40	250	140	7/4	1100

Cable take-up and pay-off machine
Mainly used for winding various signal cables and optical cables.

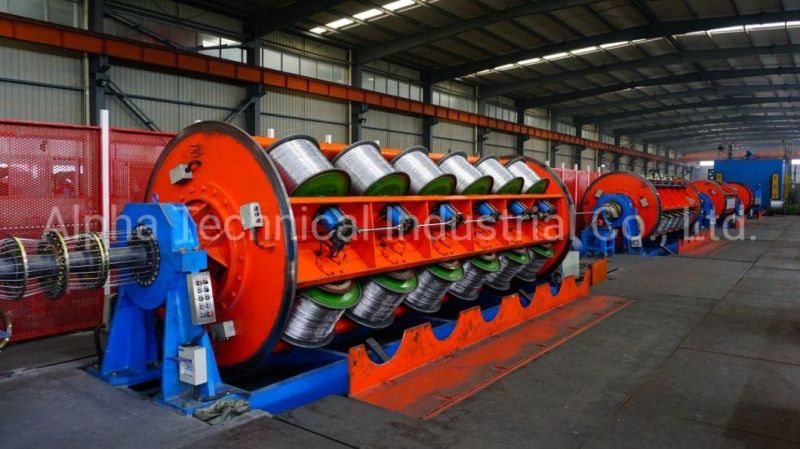

Cable strander

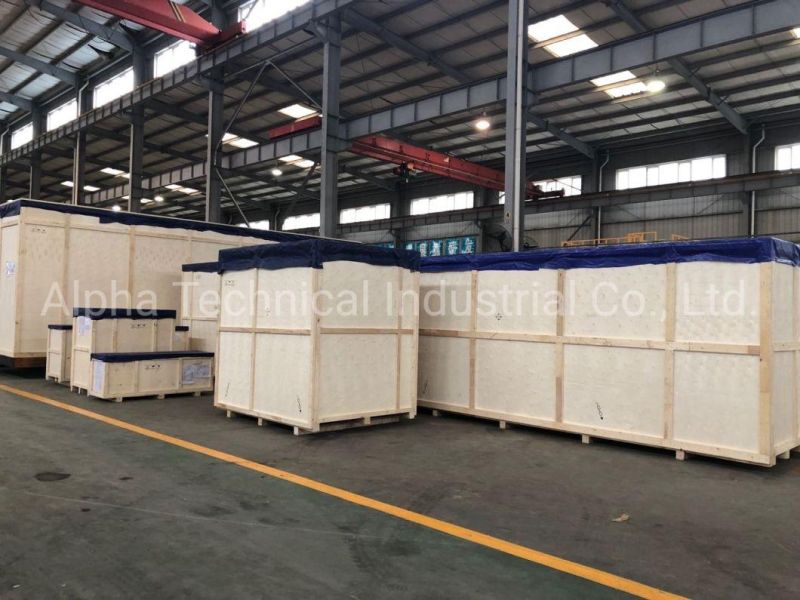

V. Package



VI. Company profile
Wuxi Longterm Cable Machinery Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.

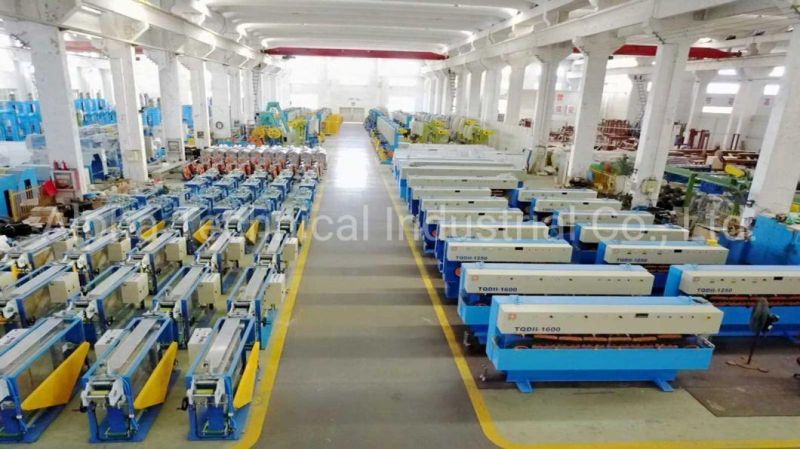

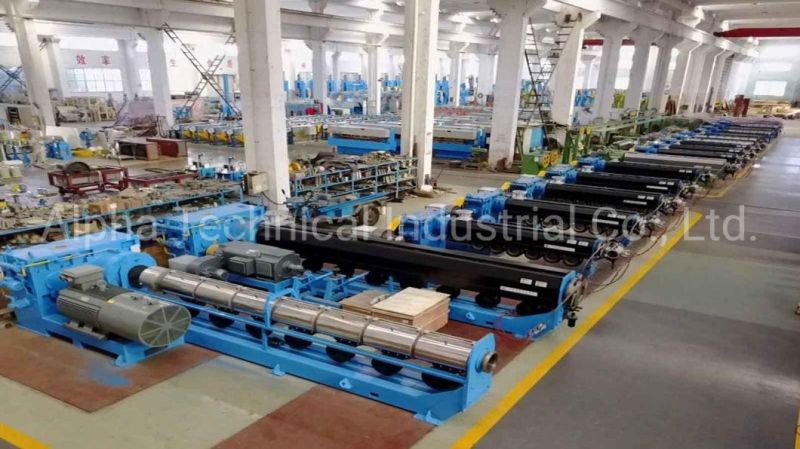

Factory show



Our Team


VII.Customer

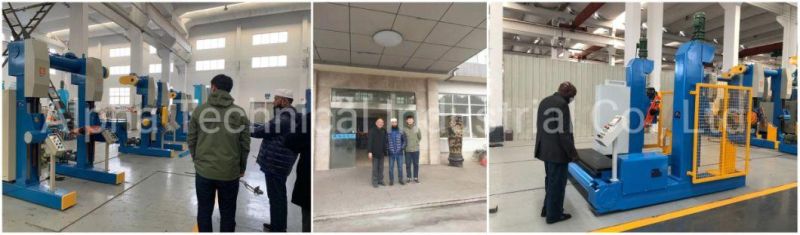

Customer visiting


Cable extrusion production line in the USA


VIII.FAQ

− Q: Are you the manufacturer or trading company?

     A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

− Q: What is your company's main production?

     A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

− Q: What can we offer our customers?

     A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

     A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
     A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

         We have an experienced team of skilled workers and engineers.

         We can support overseas training engineers.

         We can customize the design, to accept the customer's sample design.

         We can provide customers with after-sales service.

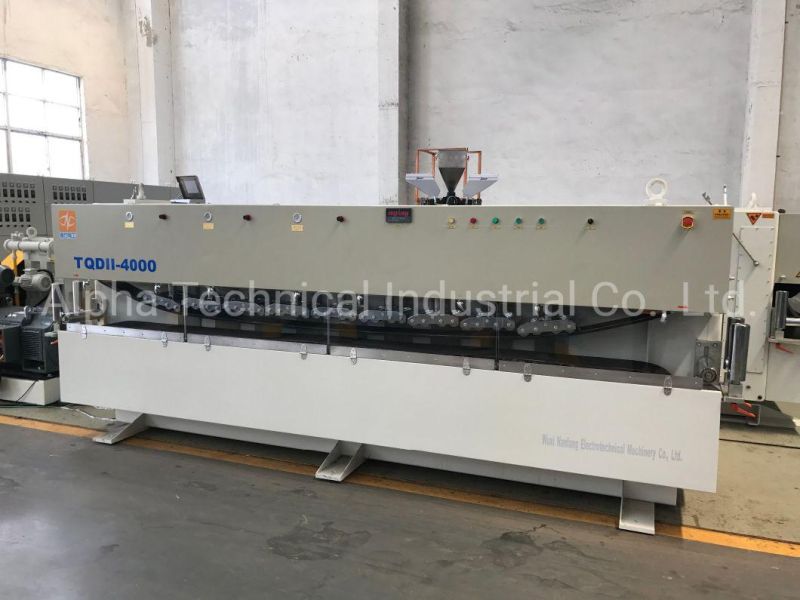

Some questions about the TQD-2500KG Crawler-type Pneumatic Puller from our customer
-Q:How is the belt tension adjusted? Can this be done during production?
A:The two belts of the puller are controlled by two sets of upper and lower cylinders respectively. The upper and lower sets of cylinders are controlled by pressure gauge and pressure regulator on the panel to control the pressure.
The lateral tension of the belt is tensioned by a large cylinder via rocker arm.
Air pressure can be adjusted online with an air storage bag

-Q: Are the belts driven at both ends or with only (one pulley drive the top and one pulley drives the bottom)?
There are four traction wheels, two on the left are active traction wheels, and two on the right are passive traction wheels.
Two active traction wheels are driven by a set of helical gears

Enable us to make a quotation for you. pls kindly revert to us for the below information: 1. How many kgs/meters to extrusion per hour?
 2. Reel/Flange Diameter, we need to quote correct take-up and pay off machine
 3. Could you please send us a picture of your cable structure?
 4. Extrusion material, I mean cable sheath material? Cable sheath thickness?
 5.Cable size?
 6.Cable pulling speed?
