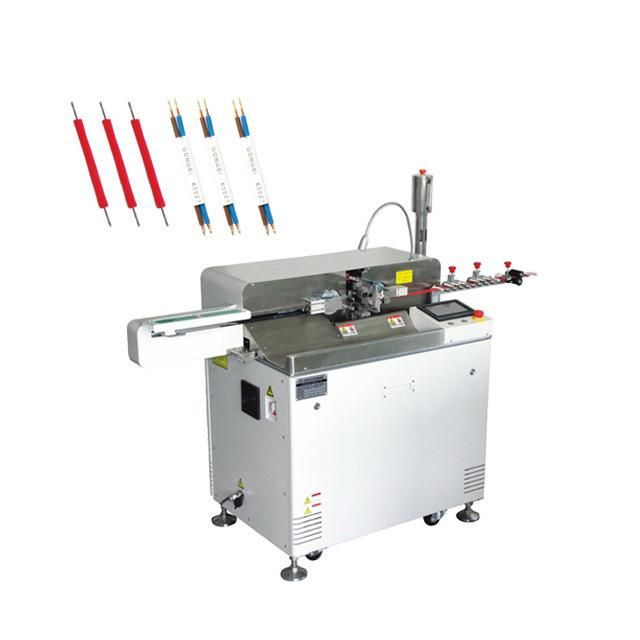

Automatic Auto Wire Harness Cutting Stripping Twisting Tinning Machine
Sinrad Technology Co., Ltd.- Driven Type：Electric
- Condition：New
- Warranty：12 Months
- Automatic Grade：Automatic
- Weight：400kg
- Voltage：AC220V 50,60Hz
Base Info
- Applicable Wire：AWG24~AWG18, AWG24~AWG32
- Stripping Length：0-9mm
- Twisting Length：3-9mm
- Tinning Length：1-9mm
- Transport Package：Plywood Case
- Specification：1210*770*1370mm
- Trademark：Sinrad
- Origin：China
- HS Code：8479819000
- Production Capacity：50 Sets,Month
Description
Technical Index
Tech-Parameters
Display
Touch panel
Function

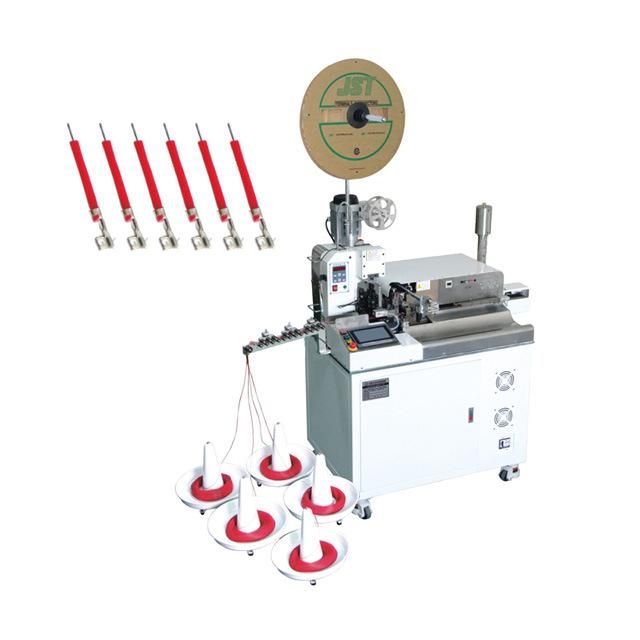

Cut, both end stripping, single end half stripping, single end crimping, single end twist, single end tinning.
Production rate
6000-8000pcs/H
Available wire
AWG24~AWG18, AWG24~AWG32
Cutting tolerance
0.2±0.02*L
Cutting Length
30~550MM (support customized min. 8mm)
Stripping length
0-9mm
Twisting length
3-9mm
Tinning length
0.5-9mm
1. Control system: Delta PLC.
2. Cylinder: Germany Mayer.
3. Solenoid valve: Festo, Germany.
4. Screw guide: Taiwan silver.
5. Servo motor drive: Hechuan (optional with Mitsubishi).
6. Pneumatic components: SMC
7. Temperature control table: Omron
1 Price terms
The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.
2 Can I send samples to check the machine quality.
Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.
3 How to learn the machine?
1) Offer free technology learning support in our factory
2) Provide detail user manual with detail video illustration
3) Support engineer service at site if clients asking for
4 How about the lead time and delivery time of order?
Standard model, can be ship out within 3~7days after confirmed order and deposit.
Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

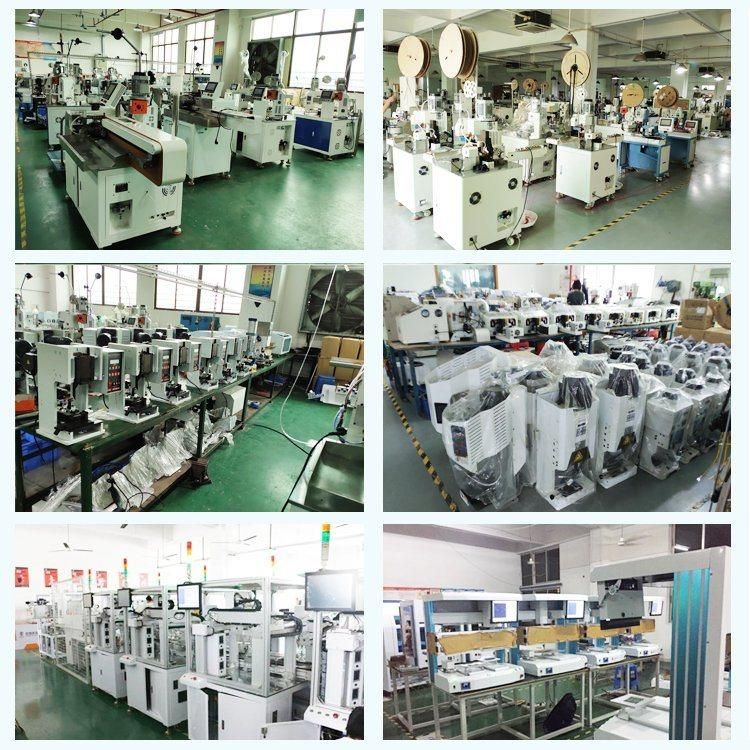

Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
