• Model NO.：WG-816
• Power Consumption：Min.130W-Max.200W
• Diameter Wire：1mm-16mm
• Cutting Length：0.1mm~99999.9mm
• Stripping End：0.1~100mm
• Bending Times：13 Times
• Conduit Diameter：1.5mm~10mm
• Transport Package：Wooden Case
• Specification：420mm*297mm*345mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-816 Power Consumption Min.130W-Max.200W Diameter Wire 1mm-16mm Cutting Length 0.1mm~99999.9mm Stripping End 0.1~100mm Bending Times 13 Times Conduit Diameter 1.5mm~10mm Transport Package Wooden Case Specification 420mm*297mm*345mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

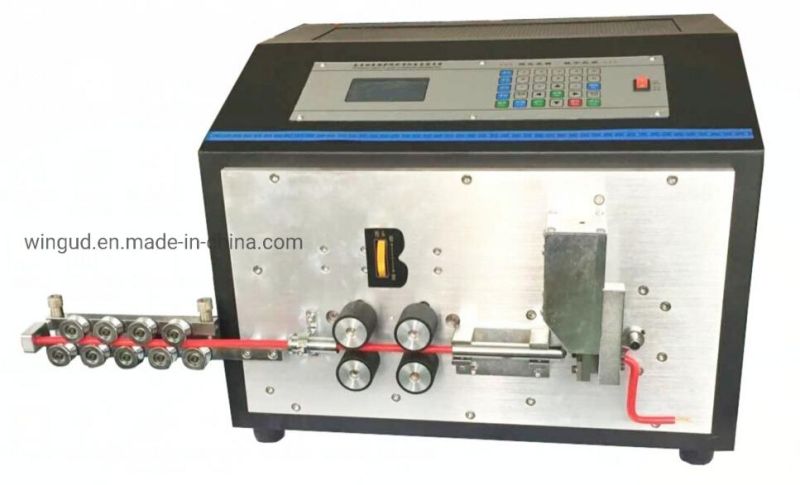

Full-automatic wire stripping and bending machine WG-816
 Functional characteristics:
Function of cutting, stripping and bending.
Can clockwise/outer clockwise bend, bend angle 30/45/60/90 degrees.
This machine is controlled by computer, button operation, stable performance, easy to operate.
High-speed stripping of wires, the wire head, wire tail and total length can be set arbitrarily within the range of the cutting wire.


Technical parameters:


Model name	Full-automatic wire stripping and bending machine
Model	Below 16 square mm
Dimension	L420mm × H297mm × W345mm
Weight	31kgs
Display mode	240×128 Blue screen LCD display
Power supply	AC175V-250≤50/60HZ
Power	130W~200W
Cutting length	0.1mm~99999.9mm
Stripping end	0.1~100mm
Bending times	13 times
Bending length	The last bending over 20mm, glue remain at the last bending 20mm, shortest bending in middle 25MM

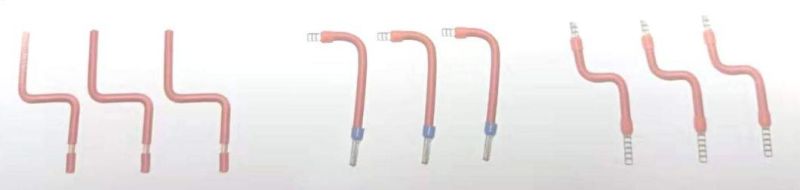

Bending mode	clockwise/outer clockwise, bending angle can be adjusted to be 30/45/60/90 degrees. It can bend positive and negativeon the same wire at the same time.
Cutting core	0.1~16mm2
Cutting tolerance	Within 0.002×Lmm
Conduit diameter	1.5mm~10mm
Blade material	Imported high-speed steel
Drive mode	Four wheels drive
Productivity	400-1000pcs/h

F&Q
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete. Most of the equipments are in stock and can be shipped quickly. We have our own factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customize.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery.

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples.

4. How to operate the equipment?
There is Manual operation for each machine. Also, we could make video for you, it will show you how to do it step by step. Please contact our maintenance department or sales department at any time when you don't understand, support video and telephone communication

5.When the machine can't work well,What should I do?
Please contact our maintenance department or sales department, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine, ensuring you can operate the machine easily.
