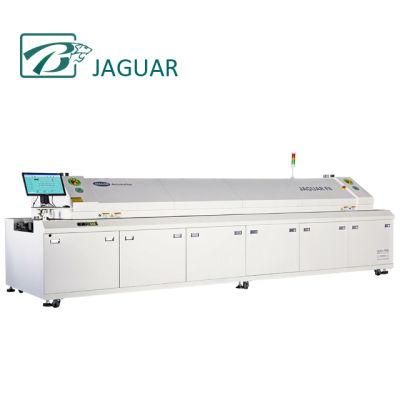

Lead-Free Hot Air Reflow Oven Reflow Soldering Machine (R8)
Shenzhen Jaguar Automation Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Installation：Vertical
- Power Supply：5 Line 3 Phase 380V 50,60Hz
Base Info
- Model NO.：REFLOW OVEN R8
- Exhaust Volume：10 Cbm,Min*2 Exhausts
- Heating Method：Hot Convection Air
- Temp. Setting Range：Room Temp-350 Degree
- Max. Width of PCB：450mm
- Mesh Belt Width：500mm
- Transmission Direction：L-R
- Transmission Type：Mesh and Chain
- Precision：Precision
- Heating System：Electric
- Transport Package：Wooden Box
- Specification：CE
- Trademark：Jaguar
- Origin：China Shenzhen
- HS Code：85151900
- Production Capacity：100PCS,Month
Description
Computer greyWeight 2200KG 2500kg Number of heating zones UP8/Bottom 8 Up10/bottom10 Length of heating zones 3000mm 3750mm Number of cooling zones 2 2 Exhaust volume 10M³/min*2 exhausts Power supply 5line, 3phase, 380V 50/60Hz Start-up power 60KW 68KW Power for warm up 50KW 58KW Normal power 9KW 11KW Heating pattern Up & Bottom Hot air Warming time Approx. 20minutes Temp. setting range Room temp-350 degree Control system PLC+ Computer Temperature control method PID close loop control +SSR driving
Introduction:
1. Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2. The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4. Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5. To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6. Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec.)
7. Center support and dual rail is optional.
Gold partner:
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
Contact Info:
